Back-UPS 1100VA with AVR, IEC, 230V
ITCurry #: 0280E029 | Article #: BX1100CI-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Overload protection
Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Replace Battery LED
An external Replace Battery LED informs the end-user that the battery needs to be replaced.
Cold-start capable
Provides temporary battery power when the utility power is out.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
| Features | |
| Output power capacity | 1.1 kVA |
| Output power | 660 W |
| Input operation voltage (min) | 150 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Maximum current | 5 A |
| Surge energy rating | 273 J |
| Efficiency | 97% |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Ports & interfaces | |

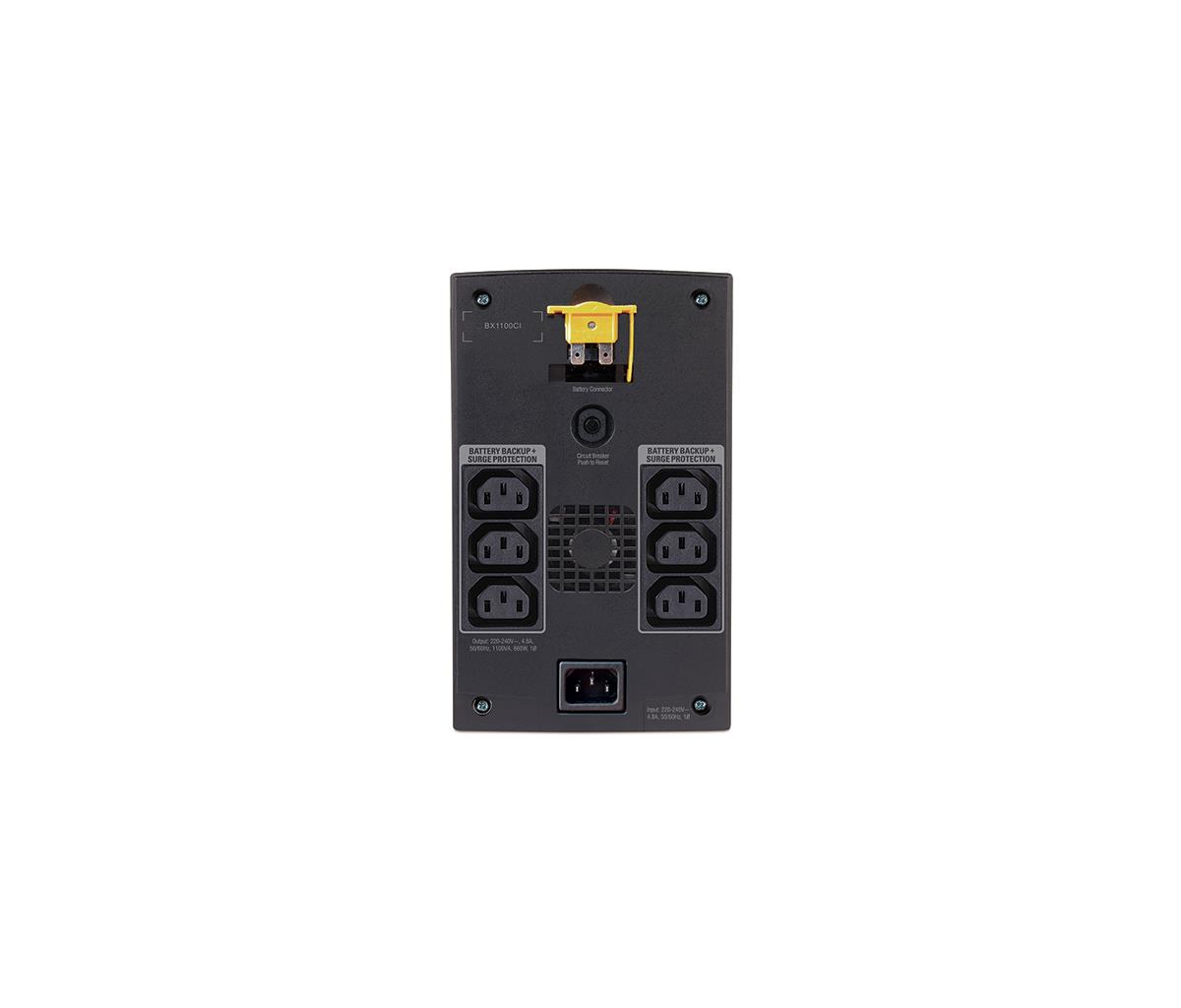

| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| Battery | |
| Battery recharge time | 8 h |
| Design | |
| Cable length | 1.16 m |
| Product colour | Black |
| LED indicators | Status |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -15 - 40 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EN/IEC 60950-1, GOST, NEMKO |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 336 mm |
| Height | 215 mm |
| Weight | 12 kg |
| Packaging data | |
| Package width | 245 mm |
| Package depth | 440 mm |
| Package height | 295 mm |
| Package weight | 12.9 kg |
| Warranty | |
| Base Warranty | Non Non |
