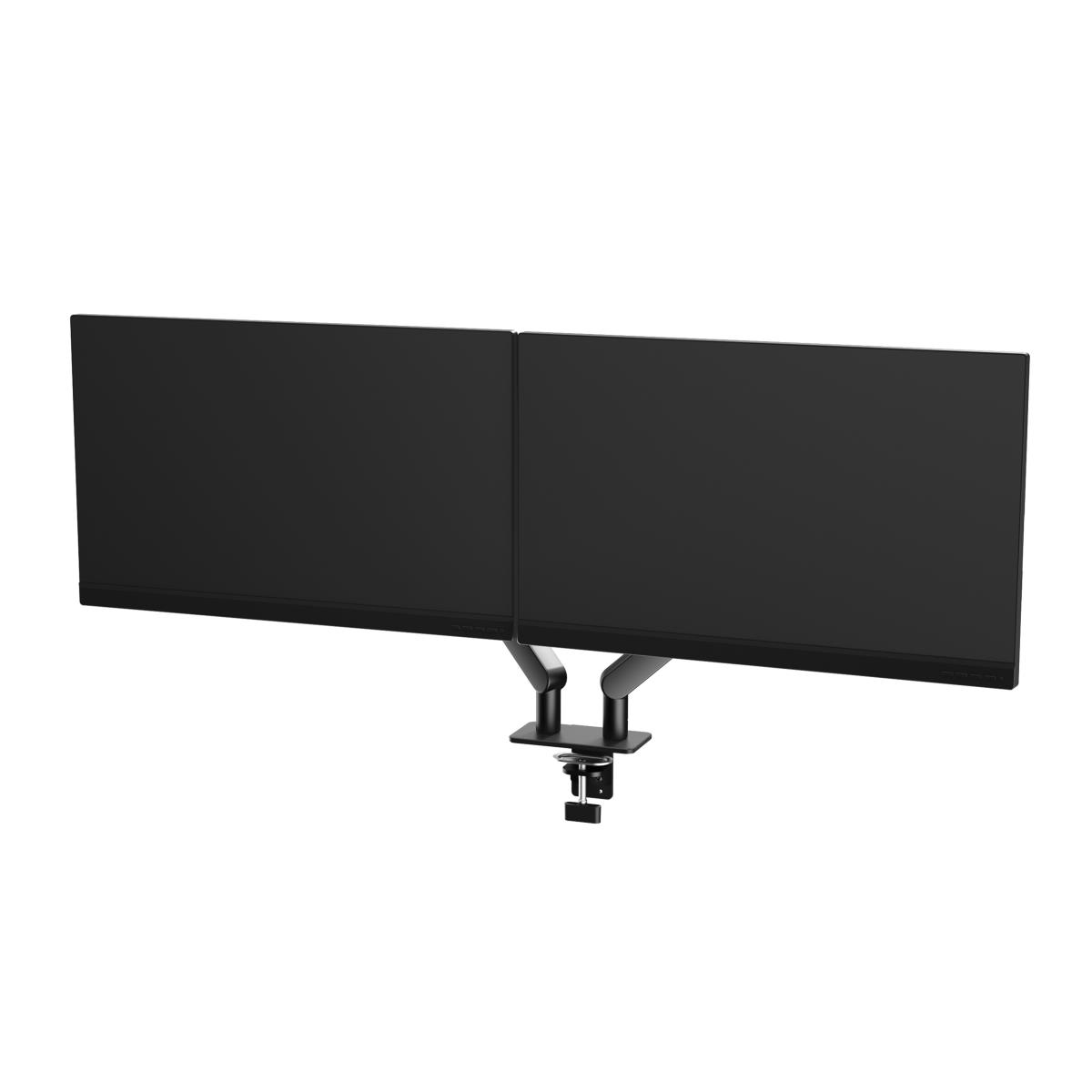

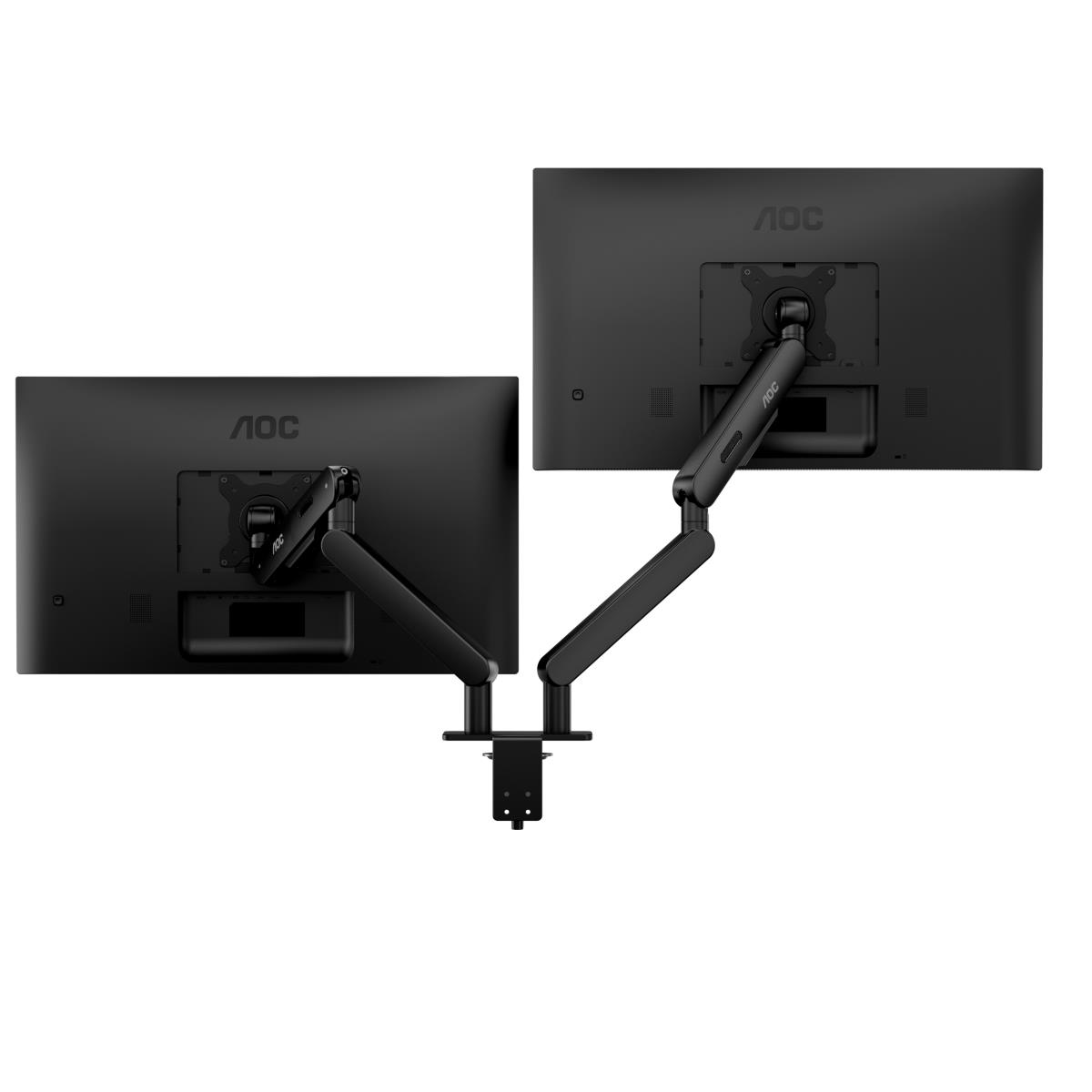

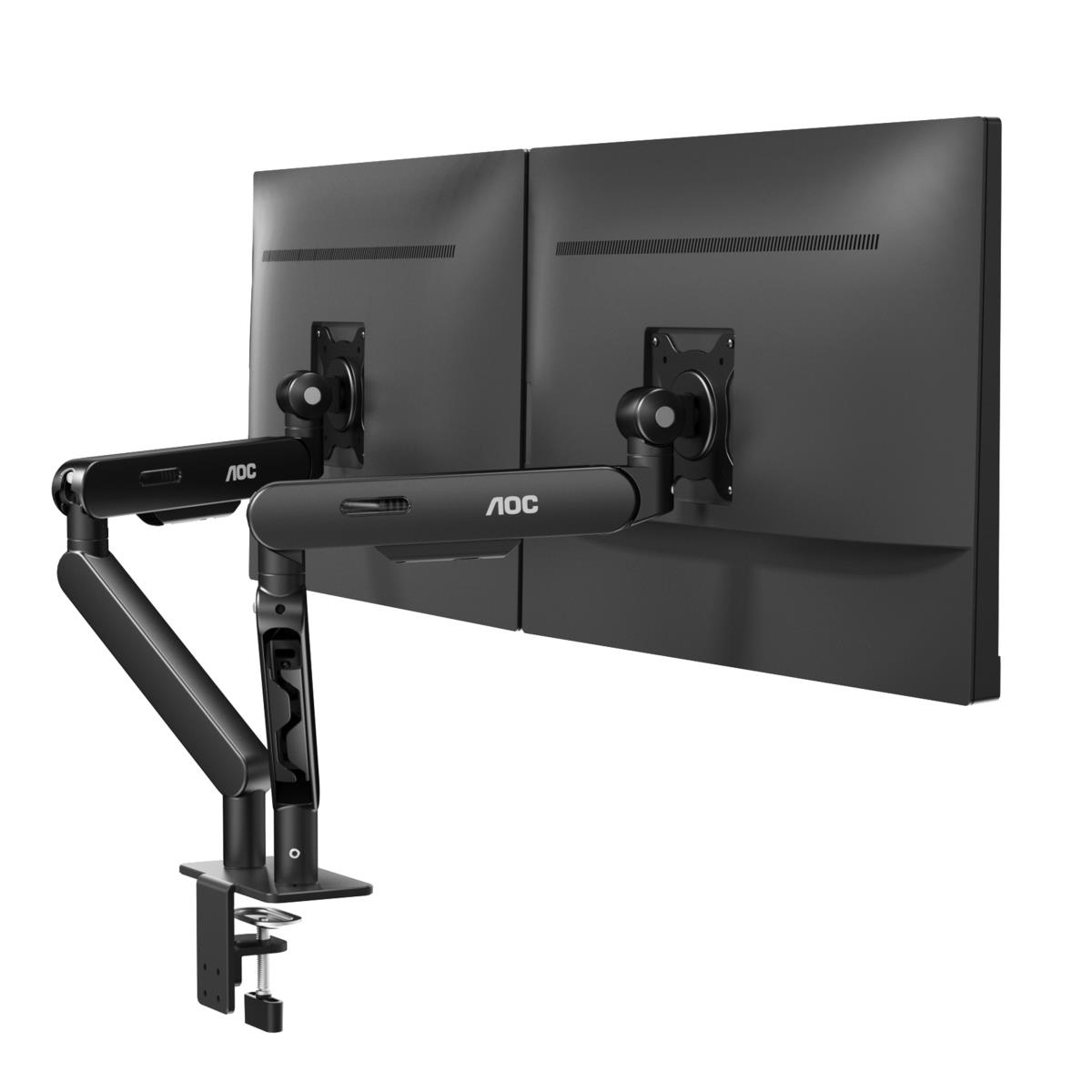

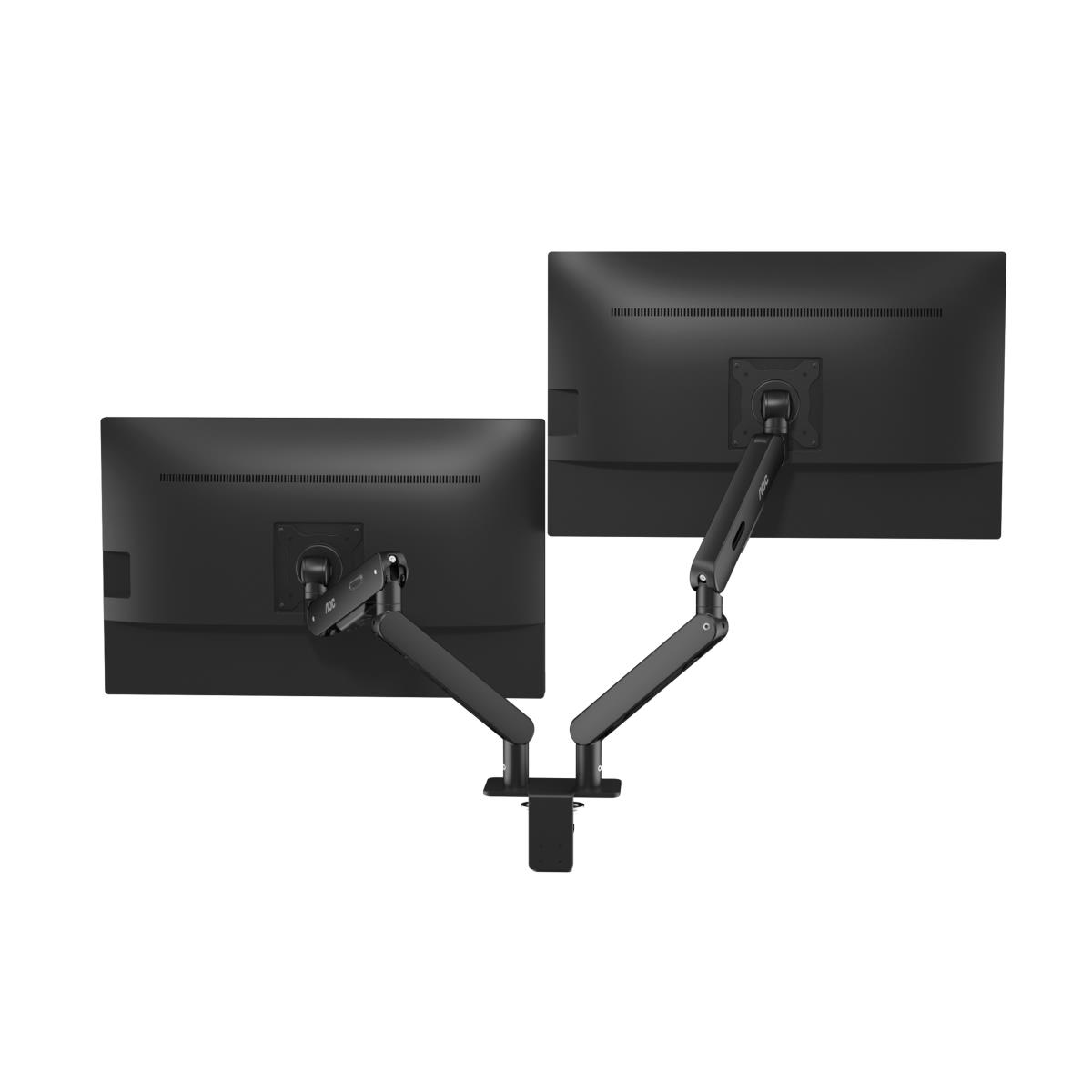

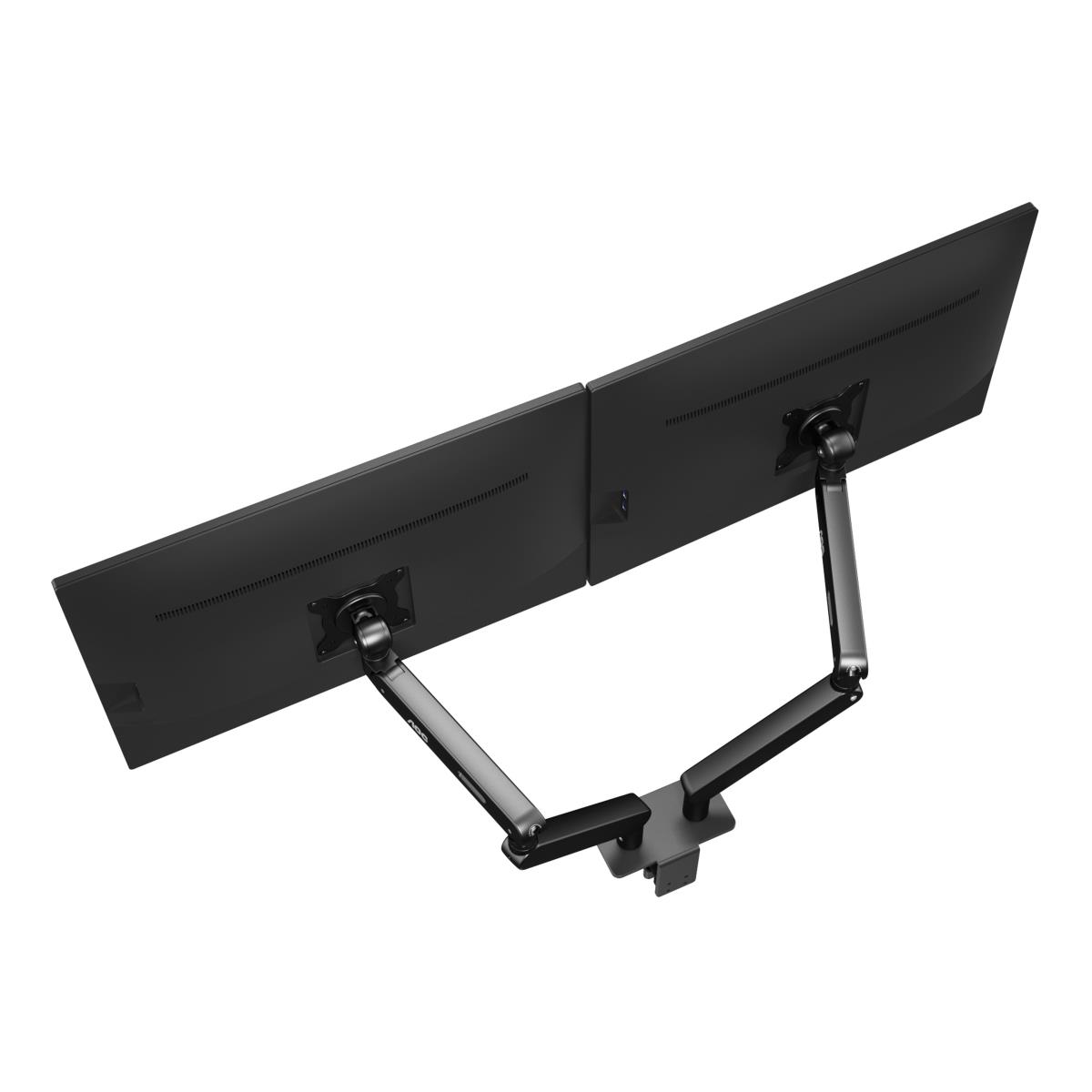

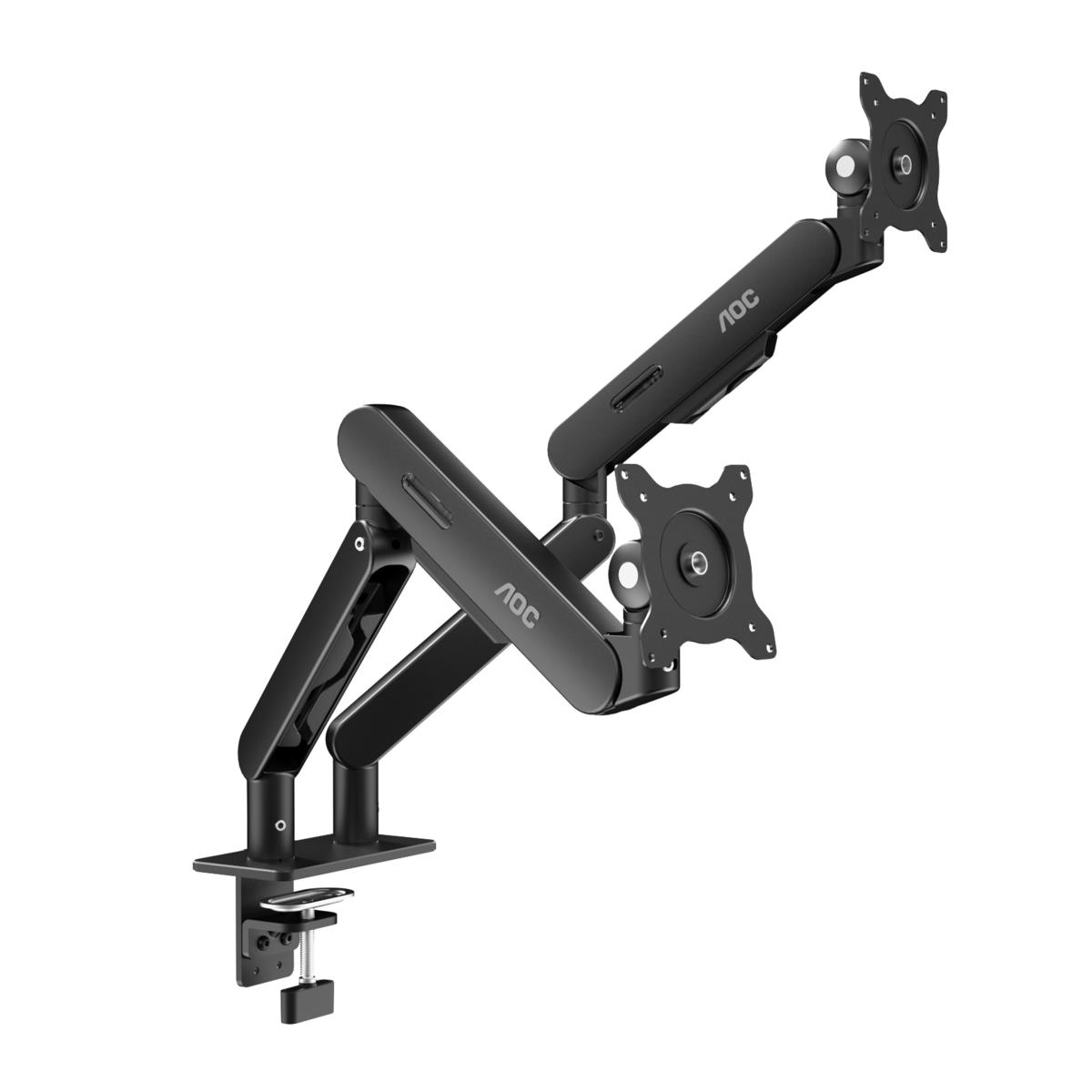

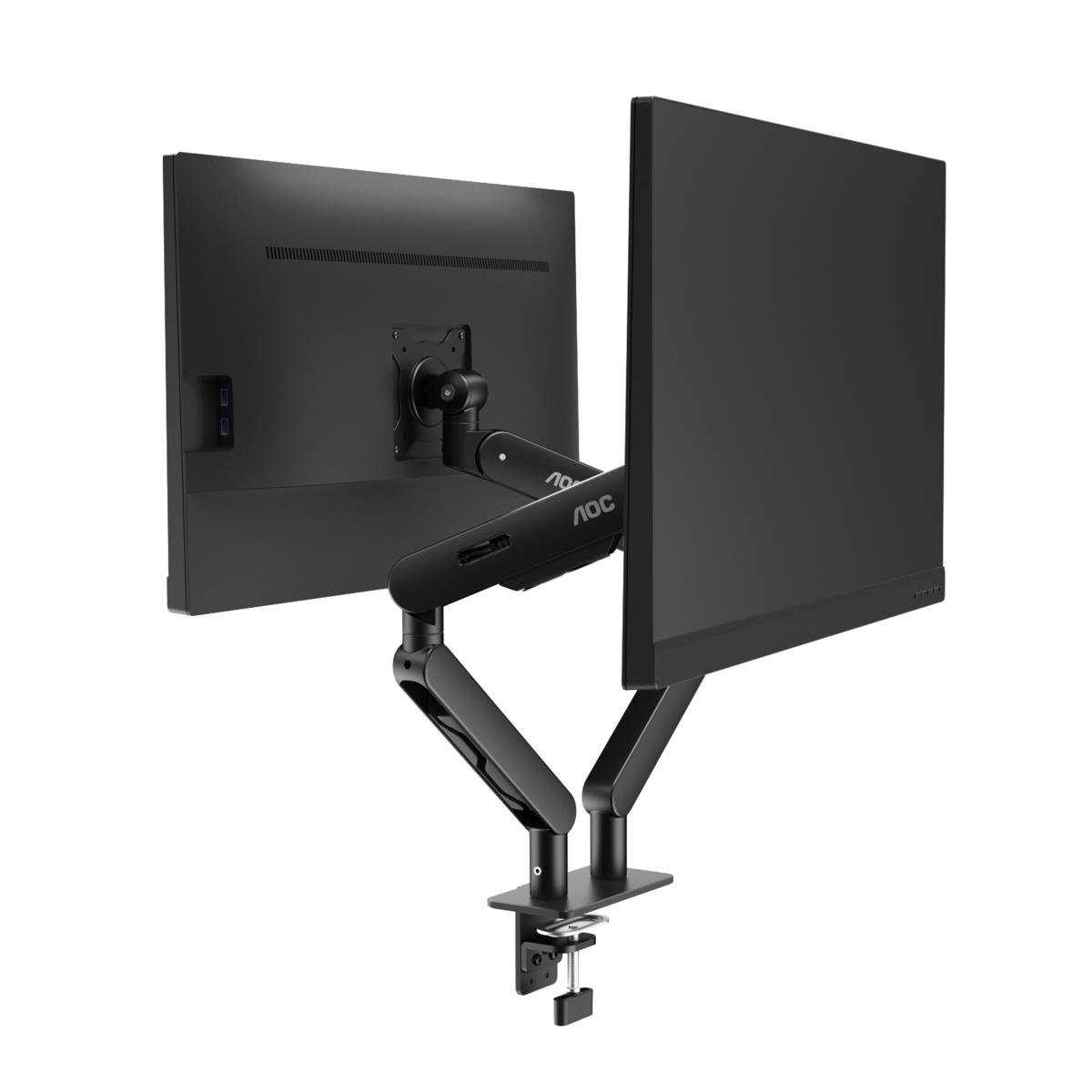

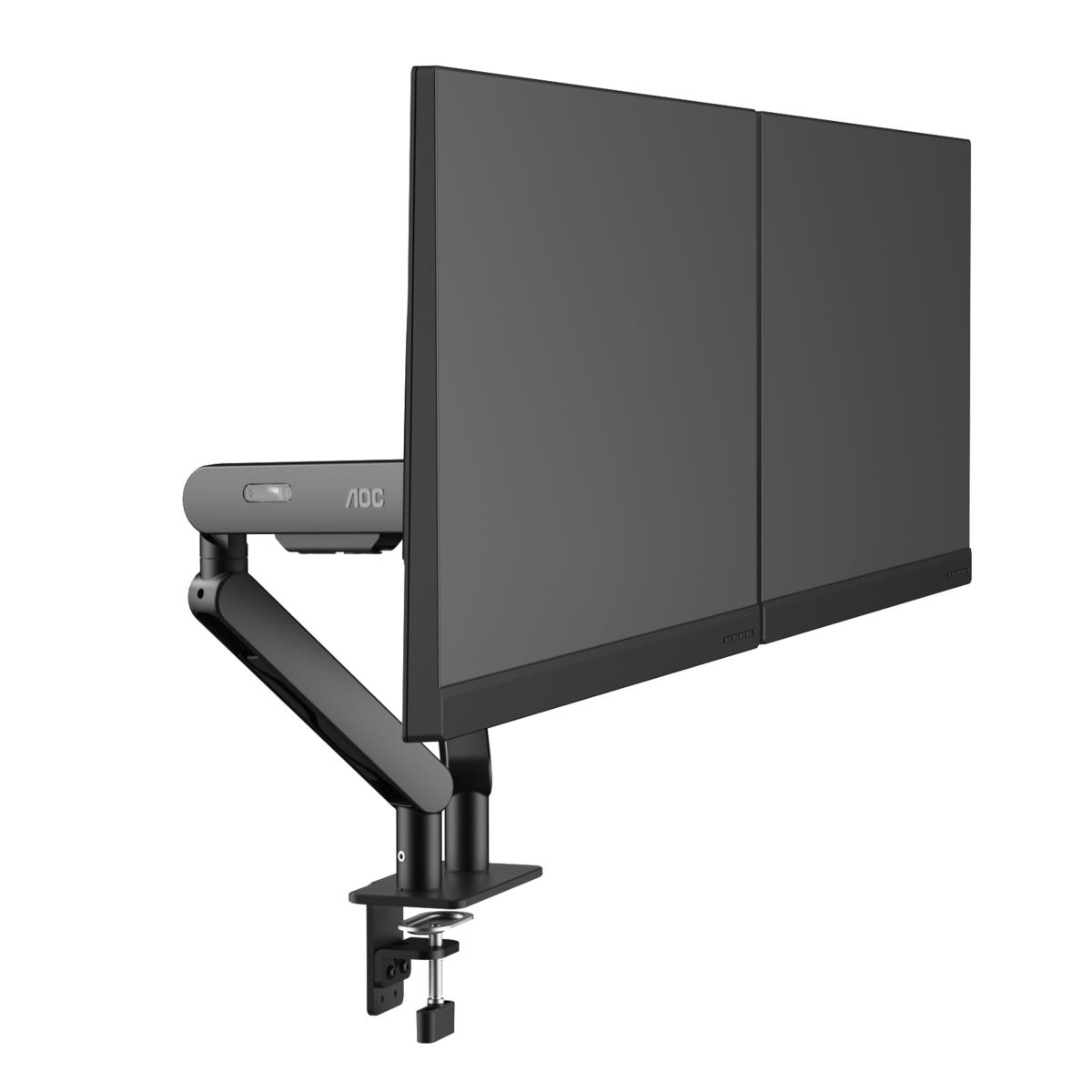

Dual Monitor Arm AM420B - Black
ITCurry #: 03072695 | Article #: AM420B
Related products
Product Information
Enhance your workspace: the AM420B dual arm - Seamlessly integrate, maximize space, and manage cables.
The AM420B is an embodiment of precision and strength. Crafted to perfection with an aluminum alloy build, the dual arm accommodates monitor sizes from 17” to 34”, with a maximum weight capacity of 9 kg. Its durable mechanical spring mechanism ensures sturdy support, while VESA compatibility (75x75, 100x100mm) allows for easy integration. Enjoy a versatile range of motion, including up to 495 mm height adjustment, up to 456 mm extension, -15°/90° tilt, -90°/90° swivel, and 360° pivot range, enhancing your workspace flexibility. Select between C Clamp or Grommet installation methods to suit your setup and elevate your ergonomic experience with the dual arm AM420B.
| Mounting | |
| Maximum weight capacity | 9 kg |
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 2 |
| Maximum weight capacity (per display) | 9 kg |
| Maximum screen size | 86.4 cm (34") |
| Mounting | Clamp/Bolt-through |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Desk thickness (min) | 1.5 cm |
| Desk thickness (max) | 5 cm |
| Clamp mount desk thickness (max) | 5 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 250 - 495 mm |
| Depth adjustment range | 0 - 455 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 90ø |
| Swivelling | Yes |
| Swivel angle range | -90 - 90ø |
| Pivot angle | 0 - 360ø |
| Number of arms | 2 |
| Cable management | Yes |
| Design | |
| Housing material | Aluminium |
| Product colour | Black |
| Weight & dimensions | |
| Weight | 4.6 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 322 mm |
| Package depth | 440 mm |
| Package height | 110 mm |
| Package weight | 5.5 kg |
| Package type | Box |
| Packaging content | |
| Clamp included | Yes |
| Mounting kit | Yes |
| Manual | Yes |
| Packaging content | Grommet mount |
| Other features | |
| Height (max) | 49.5 cm |
| Warranty period | 5 year(s) |
| Warranty | |
| Base Warranty | Non Non |
