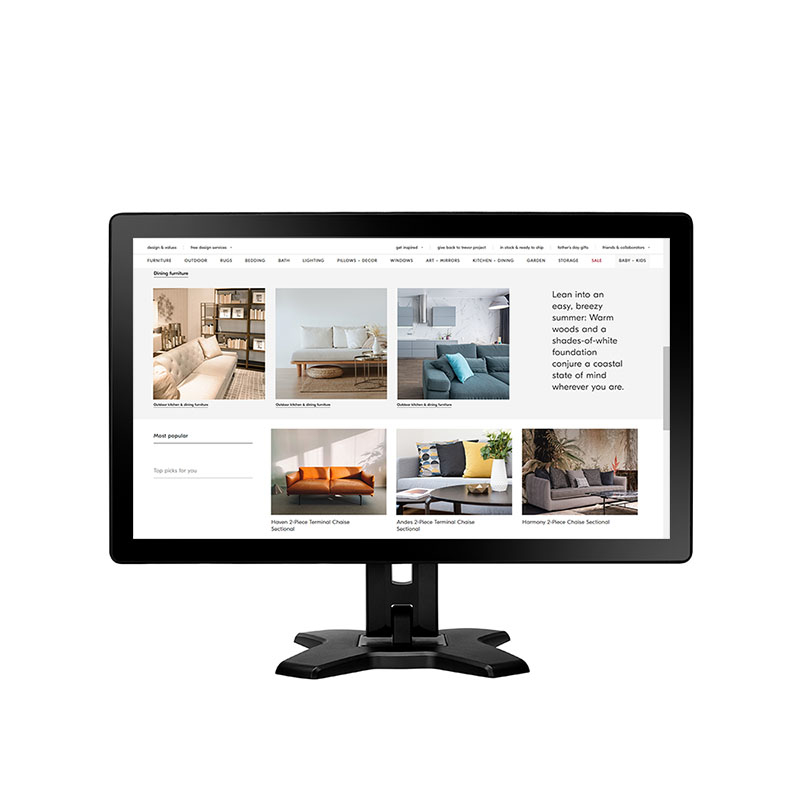

Touch Monitor - Tx-2401 - 24in - 1920x1080 (full Hd) - Black
ITCurry #: 92942537 | Article #: TX-2401-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The TX-2401 touch screen monitor adopts PCAP multi-touch technology that is relatively unaffected by contamination, offering 10-point multi-touch capability, giving an accurate and responsive touch experience, even responsiveness to latex gloves. Featuring DisplayPort, HDMI and VGA input connectivity, the TX-2401 touch monitor is built for flexible use such as self-check-in, endless aisle, self-ordering and price checking. The screen is complemented by the IP65 and IK08 rating, metal casing, and an edge-to-edge 7H tempered glass design, enhancing durability for continuous operation in public and high-traffic spaces.
10-POINT PCAP TOUCH SCREEN
The TX-2401 touch screen adopts PCAP touch technology with a 10-point multi-touch capability that is unaffected by contamination, giving a fast, accurate, and responsive touch experience. These seamless touch senses are identical to those used in smartphones and tablets, even responsive to latex gloves.
EASY TO MAINTAIN FOR NON-STOP USE
A commercial-grade panel, high-quality components and 7H scratch-resistant tempered glass screen ensure the display can be 24/7 constant used. Additionally, the screen is resistant to chemical disinfectants like alcohol for frequent cleaning.
FRONT IP65 DUST AND WATER PROTECTION
The TX-2401 multi-touch monitor with a front-sided IP65 rating is designed to protect from dust and liquid spills, making it ideal for high-use public locations.
HIGH IMPACT-RESISTANT AGAINST VANDALISM
The touch display with an IK08 rating and metal casing prevents damage from impacts or acts of vandalism in high-traffic areas, ensuring a long service life.
MULTIPLE LAYOUTS FOR PUBLIC ACCESS
Thanks to VESA compatibility, the TX-2401 offers flexible mounting options, from desk mount to wall mount or attached to a monitor arm. The included ergonomic stand allows a huge -2 to 180 degrees of tilt adjustment, creating extra ergonomics when using. The display is 178-degrees wide viewing angles to provide consistent colour performance for better viewing.
VERSATILE CONNECTIVITY
The TX-2401 provides maximum versatility and facilitates users to connect to their own devices, such as a high-performance PC or a media player, using the DisplayPort, HDMI or VGA inputs.
CABLE MANAGEMENT
A specially designed monitor stand with integrated cable management keeps cables organized, prevents them from interfering when adjusting the screen up or down, and provides a clutter-free space.
SEAMLESS INTEGRATION
Touch support works with various operating systems, compatible with Windows, Linux, macOS, and certain Android versions. This enables more choice of the operating system you use.
| Display | |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | VA |
| Touchscreen | Yes |
| Touchscreen type | Tabletop |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 250 cd/mý |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.274 x 0.274 mm |
| Digital horizontal frequency | 30 - 84 kHz |
| Digital vertical frequency | 56 - 76 Hz |
| Surface hardness | 7H |
| Colour gamut standard | NTSC |
| NTSC coverage (typical) | 72% |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Multimedia | |
| Built-in speaker(s) | No |
| Built-in camera | No |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Housing material | Metal |
| Detachable stand | Yes |
| Glass thickness | 3.3 mm |
| Ports & interfaces | |
| Built-in USB hub | No |
| USB Touch port | Yes |
| USB Touch ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.3 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2a |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 180ø |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 17 kWh |
| Power consumption (typical) | 17 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.2 W |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 1121207 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width (with stand) | 575.1 mm |
| Depth (with stand) | 279.7 mm |
| Height (with stand) | 451.3 mm |
| Weight (with stand) | 7.8 kg |
| Width (without stand) | 575.1 mm |
| Depth (without stand) | 42.4 mm |
| Height (without stand) | 347 mm |
| Weight (without stand) | 5.7 kg |
| Packaging data | |
| Package width | 370 mm |
| Package depth | 660 mm |
| Package height | 530 mm |
| Package weight | 11.4 kg |
| Package type | Box |
| Packaging content | |
| Cables included | AC, HDMI, USB, VGA |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Other features | |
| International Protection (IP) code | IP65 |
| Compliance certificates | CE, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE |
| Warranty | |
| Base Warranty | Non Non |
