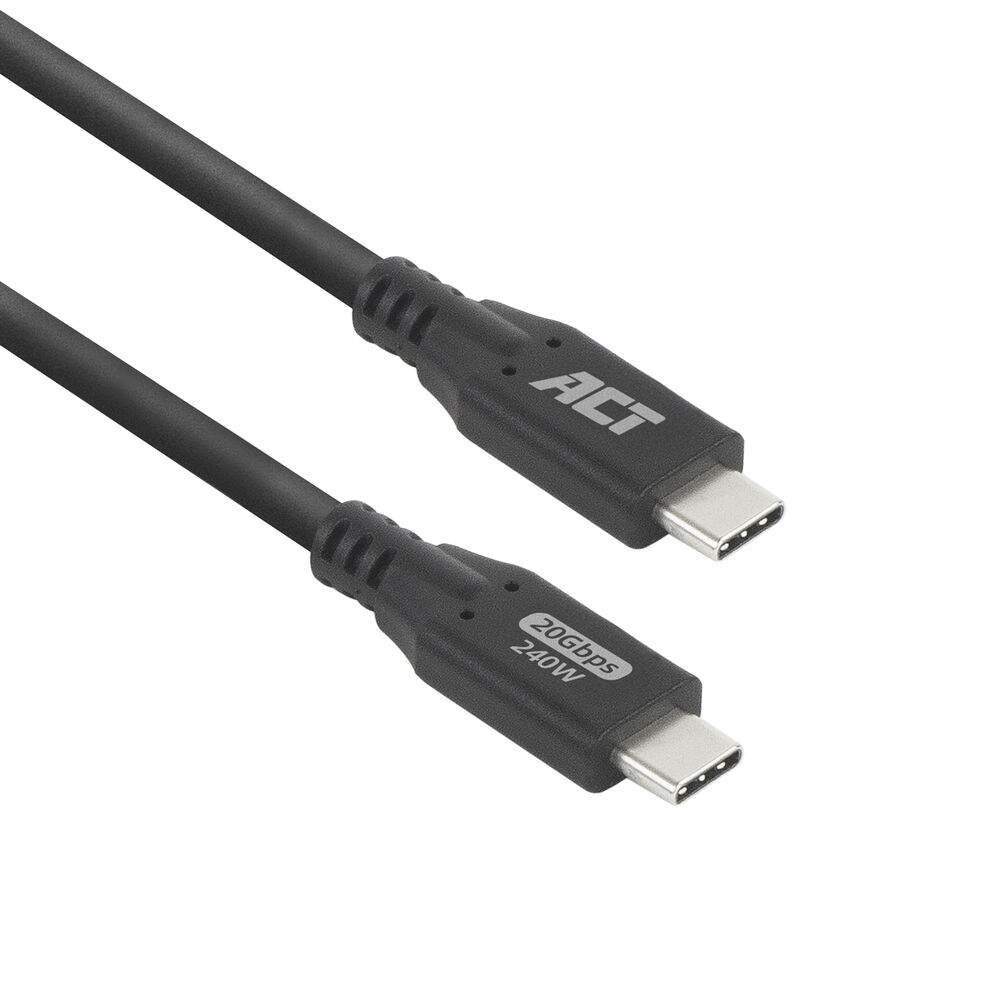

USB4 Type-c 20gbps 240w 4k 60hz Cable - Male/male - 50cm
ITCurry #: T4057256 | Article #: AC7420-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Connect your USB-C devices with the AC7420 USB4® 20Gbps USB-C cable. The cable can reach a maximum data transfer speed up to 20Gbps and can handle 240W power because of the Extended Power Range. The AC7420 supports DisplayPort Alternate Mode 1.4 with a maximum resolution up to 4K@60Hz and is backwards compatible with USB 3.2, USB 3.1, USB 3.0 and USB 2.0.
Fast data, high power and video via one USB4® cable
The AC7420 includes an intelligent e-marker chip. This chip communicates with the connected devices, e.g. laptop or charger, which features are supported by the cable. The AC7420 can handle data, power and video.
USB4® 20Gbps
The AC7420 USB-C cable includes the USB4® technology. The cable supports a maximum data transfer speed up to 20Gbps.
Power Delivery: Extended Power Range 240W
The EPR adds additional Power Delivery profiles, 28V, 36V and 48V, to the USB4® cable. The AC7420 includes the 48V profile that enables the cable to transfer a maximum power of 240W. As other cables with SPR (Standard Power Range) and without e-marker only can deliver 60W.
DisplayPort Alternate Mode protocol
The USB4® cable supports the DisplayPort Alternate Mode 1.4 (DP Alt Mode) protocol to distribute video over USB-C. The AC7420 supports a maximum resolution of 4K@60Hz.
| Features | |
| USB version | USB4 Gen 2x2 |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 24/32 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Copper |
| Maximum data transfer rate | 20 Gbit/s |
| Product colour | Black |
| Cable type | Round cable |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 240 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Power | |
| Output voltage | 5 - 48 V |
| Output current (max) | 5 A |
| Weight & dimensions | |
| Cable length | 0.5 m |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
