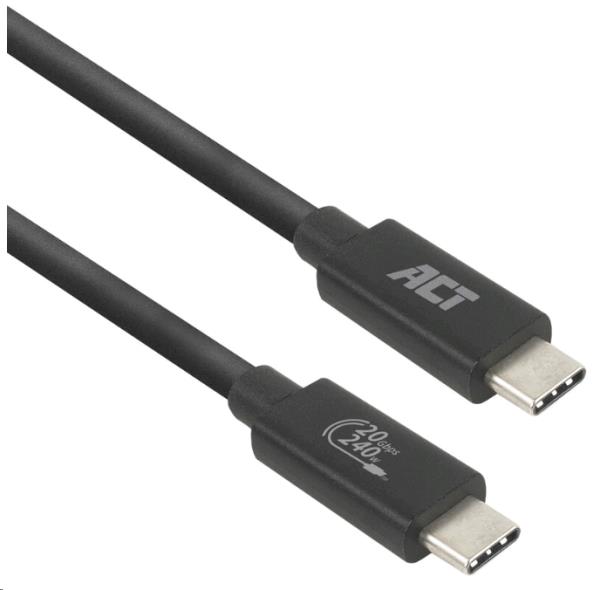

USB4 20Gbps 240W USB Type-C Cable USB-I 2m
ITCurry #: T4057255 | Article #: AC7432-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The AC7432 is an official USB-IF certified USB-C cable that supports the USB4® protocol. The USB4® cable can reach a maximum data transfer speed up to 20Gbps and can handle 240W power because of the Extended Power Range. The AC7432 supports a maximum resolution of 4K@60Hz. Backwards compatible with Thunderbolt™3, USB 3.2, USB 3.1, USB 3.0 and USB 2.0.
Fast data, high power and video via ONE USB4® cable
The AC7432 includes an intelligent e-marker chip. This chip communicates with the connected devices, such as a laptop or charger, whose features are accessed through the cable. The AC7432 can handle data, power and video.
USB4® 20Gbps
The AC7432 USB-C cable includes the USB4® technology. USB4® supports by default the Thunderbolt™3 protocol. The cable supports a maximum data transfer speed up to 20Gbps.
Power Delivery: Extended Power Range 240W
The EPR adds additional Power Delivery profiles, 28V, 36V and 48V, to the USB4® cable. The AC7432 includes the 48V profile that enables the cable to transfer a maximum power of 240W. As other cables with SPR (Standard Power Range) and without e-marker only can deliver 60W.
DisplayPort Alternate Mode protocol
The USB4® cable supports the DisplayPort Alternate Mode 1.4 (DP Alt Mode) protocol to distribute video over USB-C. The AC7432 supports a maximum resolution of 4K@60Hz monitor.
Officially USB-IF certified
The AC7432 is officially certified by the USB-IF corporation. The cable is tested to the highest standards by USB-IF. The official USB-IF logo can be found on the connector. ACT is member of the USB Implementers Forum, Inc.
| Features | |
| USB version | USB4 Gen 2x2 |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 34/26/32/30 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Cable shielding | Aluminum mylar foil |
| Maximum data transfer rate | 20 Gbit/s |
| Product colour | Black |
| Cable type | Round cable |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 240 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| DisplayPort version | 1.4 |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Thunderbolt technology | Yes |
| Thunderbolt version | 3 |
| Power | |
| Output voltage | 5 - 48 V |
| Output current (max) | 5 A |
| Weight & dimensions | |
| Cable length | 2 m |
| Cable diameter | 5.1 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Certification | USB-IF |
| Warranty | |
| Base Warranty | Non Non |
