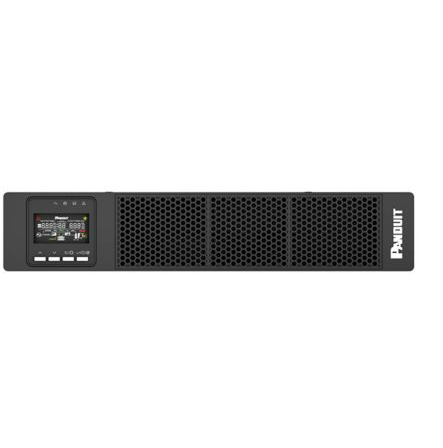

SMARTZONE UPS 1kVA 2U 230V SINGLE PH Power Protection with Intelligent Network Card & Rail Kit

ITCurry #: M0685483 | Article #: U01N12L
Notify
Flash Sale
Rechercher plus : UPS
Prix:
2081,46 TVA Incluse TVA Exclue
Livraison dans le BeNeLux:
Plus de stock. Prière de nous contacter !
Envoyez-nous un courriel pour obtenir de l'aide
Caractéristiques phares
  • Ecran
    Mémoire
    Poids
    Processeur
    Disque dur
    SSD
    Ecran
    Résolution
    Connectivité
    Mémoire
    Boitier
    OS
    Ecran
    Type
    Vitesse Noir
    Vitesse Couleurs
    Modèle
    Vitesse
    Facteur de forme
    Interne / Externe
    Nombre de ports
    Uplink / Médias
    Montage
  • Voir tout

Bundles

TVA Incluse TVA Exclue
Plus de stock. Prière de nous contacter !
TVA Incluse TVA Exclue
Plus de stock. Prière de nous contacter !

TVA Incluse TVA Exclue
Plus de stock. Prière de nous contacter !

TVA Incluse TVA Exclue
Plus de stock. Prière de nous contacter !

Produits Similaires

Informations sur le produit

Features
  • 90% efficiency in online mode and 95% in Eco mode for energy savings
  • Intelligent Battery Management for optimized battery performance
  • LCD display for real-time monitoring and control
  • 4 programmable sockets for tailored power distribution
  • Comprehensive protection against power anomalies
Specifications

General

Colour Black
Localisation EMEA
Height (Rack Units) 2U
Device Type UPS - Power Factor Correction (PFC) - rack-mountable / external

Expansion / Connectivity

Expansion Slots 1 (total) / 1 (free) x Intelligent Slot
Interfaces 1 x management (USB) 1 x management (RS-232) 1 x EPO (emergency power off) 1 x management (Ethernet) - RJ-45 1 x sensor - RS-485

Manufacturer Warranty

Service & Support Limited warranty - 5 years Limited warranty - batteries - 5 years

Networking

Remote Management Protocol SNMP 3
Remote Management Interface Ethernet, RS-232, USB

Miscellaneous

Rack Mounting Kit Included
Cables Included Power cable - external - 1.8 m
Compliant Standards RoHS, IP20, IEC 62133, UN38.3, EN 62040-1:2008+A1:2013, ISTA 2A, ANSI C62.41 Category A, IEC 62619, IEC 62040-2-2016, EN 62040-2-2018, BS 62040-2-2018, IEC 62040-1:2017
Features Audible alarm, emergency power off, LCD display, overheat protection, internal bypass, Automatic Voltage Regulation (AVR), overcharge protection, overload protection, cold-start function, short-circuit protection, hot-swappable batteries, low voltage protection, overdischarge protection, 4 programmable sockets, generator compatible, Intelligent Battery Management, double conversion, outlet bank switching, Smart Load Shed

Software / System Requirements

Software Included SmartZone Cloud, SmartZone mPower

Environmental Parameters

Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Sound Emission 55 dB
Humidity Range Operating 0 - 95% RH (non-condensing)

Battery

Transfer Time 4 ms
Recharge Time 3 hours
Run Time (Up To) 9 min at full load 20 min at half load
Technology Lithium iron phosphate
Voltage Provided DC 25.6 V

Power Device

Power Factor (PF) 1.0
Frequency Provided 50/60 Hz
Input Voltage AC 220/230/240 V
Output Waveform Sinewave
UPS Technology On-line
Dataline Surge Protection Network - RJ-45
Frequency Required 40 - 70 Hz
Power Capacity 1000 Watt / 1000 VA
Output Voltage AC 220/230/240 V 50/60 Hz
Input Wiring 1-phase
Input Connectors 1 x power IEC 60320 C14
Power Output Connectors Details 8 x power IEC 60320 C13
Efficiency 95% Eco mode, 90% online mode
Input Voltage Range AC 176 - 264 / 110 - 300 V

Dimensions & Weight

Width 44 cm
Depth 32.5 cm
Weight 9.3 kg
Height 8.65 cm
Base Warranty Non Non
