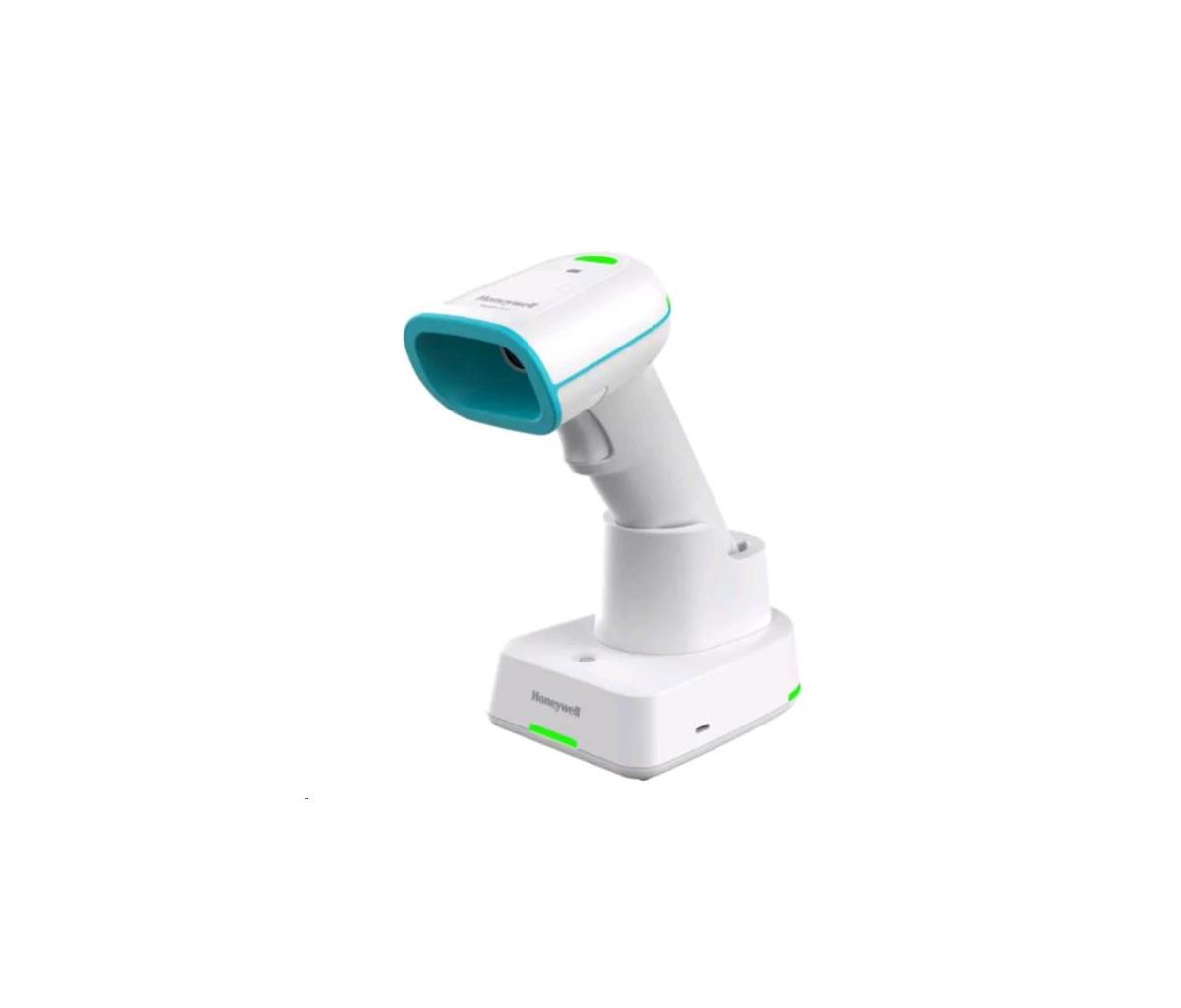

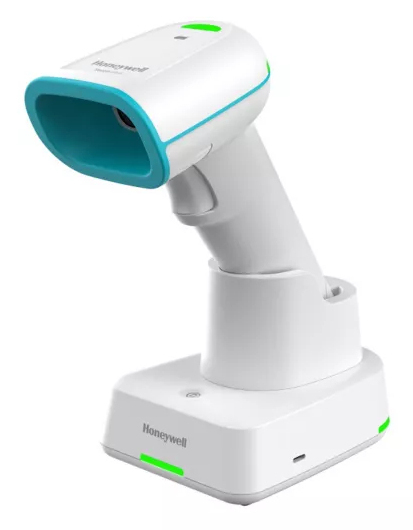

Barcode Scanner Xenon Ultra 1962h USB Kit - Incl White Anti-microbial 1d/2d Sr Focus Wireless Charging Scanner + USB Cable Type A 2.7m

• Designed for Healthcare:The Xenon Ultra 1962h features disinfectant-ready, anti-microbial housing that actively combats germ proliferation. It offers multiple point-of-care operating modes, flexible mounting options, and offers superior scanning performance to address the wide range of barcodes encountered in healthcare environments.
• Optimized for Clinicians:The Xenon Ultra 1962h includes features like patient-do-not-disturb, vibration alerts, and an intelligent scan lamp that can illuminate only when necessary. Optional magnetic retention balances ease of use with secure retention, ideal for Workstation-on-Wheels (WoW) carts as clinicians move between patients. The contactless charging feature for both battery and battery-free scanning mitigates the risk of corrosion, better supporting rigorous cleaning protocols. The Bluetooth configuration enhances functionality and offers premium accessory upgrades, including interchangeable power sources and contactless charging capabilities.
• Ultra Performance:The Xenon Ultra 1962h delivers exceptional scanning performance, even on damaged or low-quality barcodes, ensuring high precision and minimizing the need for manual data entry, which is particularly important for data integrity in the healthcare environment. Its modern design not only improves aesthetics but also meets the durability standards critical for healthcare environments. The battery-free scanner provides at least 450 scans of UPC/EAN codes without recharging, making it an ideal choice for bedside medication administration and specimen collection.

Form Factor

• Gun Shape

General

• In addition to a green-dot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.
• Multiple operating modes are available to help ensure maximum patient comfort while maintaining clinician productivity, such as Patient Do-Not Disturb, Vibration, and Scan Lamp.
• Optimized Illumination
• Supercapacitors hold their charge for hours when fully charged. So operators who forget to place their scanner in the charger prior to break won’t impact operations upon return.
• The Xenon Ultra 1962 battery and battery-free is available in a premium contactless version, reducing the number of failed devices due to corrosion.
• The Xenon Ultra 1962 scanner can accept a lithium-ion battery or a battery-free supercapacitor, allowing enterprises to have mixed device pools and flexibility in their fleets.

Connectivity

• Bluetooth

Application

• Bed Side Care
• Healthcare
• Inventory / Component Tracking
• Patient Admissions
• Pharmacy
• Specimen Collection

Dimensions

• Overall Dimensions
  • Desktop/Wall Mount Base: 211.3mm x 74.2mm x 77.7mm
  • Presentation Base: 82.9mm x 90.4mm x 121.6mm
  • Scanner: 108.2mm x 70.4mm x 160.2mm

Scanning Specifications

• Scanning Range : Standard Range (SR) and High Density (HD) Capabilites. Refer to datasheet or Users' Manual for further details
• Scan Pattern : Area Imager
• Scan Distance : Standard Range (0-1m)
• Number of Scans : Standard Battery: 80,000
• Motion Tolerance : For 13 mil UPC at optimal focus4 meters/second
• Depth of Field : Refer to the datasheet or users' manual for full depth of field specifications
• Decode Capability : 1D/2D
• Brightness : 0 - 100,000 Lux

Network

Bluetooth Specifications

• Bluetooth radio v4.2 with Adaptive Frequency Hopping
• Class 1: 100m line of sight (default), programmable to Class 2: 10m line of sight BLE available
• Radio/Range: 2.4GHz
• Bluetooth : Yes

Hardware

• Aimer Type : Green dot LED
• Wireless : Yes
• Host System Interface : USB
• Charging
• • Contact Charging
  • Wireless Charging

Electrical

• Operating Power : Operating Power (Charging) Bases: 2.5W (500 mA @ 5V DC) Standard USB10W (2A @ 5V DC) – when utilizing power adapter
• Input Voltage : 4.4V DC – 5.5V DC
• Battery Types :
• • Battery-Free Super Capacitor
  • Lithium Ion
