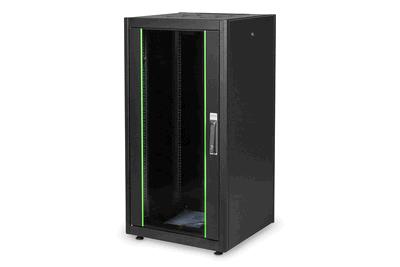

network rack, 22U Dynamic Basic 1155x600x600mm, black (RAL 9005)
ITCurry #: M9238574 | Article #: DN-19 22U-6/6-DB-
EcranMémoirePoidsProcesseurDisque durSSDEcranRésolutionConnectivitéMémoireBoitierOSEcranTypeVitesse NoirVitesse CouleursModèleVitesseFacteur de formeInterne / ExterneNombre de portsUplink / MédiasMontage
- Voir tout
Bundles
Produits Similaires
Informations sur le produit
The DIGITUS® Dynamic Basic Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany
- Roof is prepared for fan units (punched out entries)
- Lockable pivot lever on front door
- Base with punched out cable entry, covered with screwed metal plate
The network cabinets from the Dynamic series were developed for easy and especially cost-optimized network expansion. Clever placement of the cable inlets ensures effortless installation for every application. They are located at the back center in the floor structure, protected by a bolted cover plate. Cabinets from a width of 800 mm also feature cable inlets with a plastic cover to the left and right. These are also integrated into the roof (1 x for 600 mm cabinet width, 3 x for 800 mm cabinet width). To accommodate a fan module, the roof structure is also equipped with a pre-cut area. Two pairs of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth is adjustable and they are connected to additional depth bars in the cabinet. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Removable side and back walls as well as lockable and removable front door improve accessibility. The door hinges can be switched. Furthermore, the cabinets can be completely dismantled if necessary due to their collapsible design.
Warranty | |
Base Warranty | Non Non |
