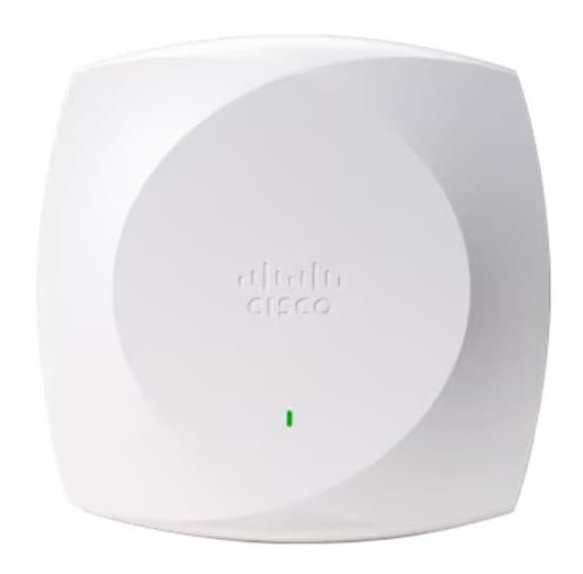

Wireless 9174e - Radio Access Point - Wi-Fi 7, 1gbe, 2.5gbe, 5gbe - Wi-Fi 7, Bluetooth - 2.4 G

ITCurry #: 0918AU56 | Article #: CW9174E-RTG
Notify
Flash Sale
Rechercher plus : Point d'accès
Prix:
1010,37 TVA Incluse TVA Exclue
Livraison dans le BeNeLux:
Plus de stock. Prière de nous contacter !
Envoyez-nous un courriel pour obtenir de l'aide
Caractéristiques phares
  • Ecran
    Mémoire
    Poids
    Processeur
    Disque dur
    SSD
    Ecran
    Résolution
    Connectivité
    Mémoire
    Boitier
    OS
    Ecran
    Type
    Vitesse Noir
    Vitesse Couleurs
    Modèle
    Vitesse
    Facteur de forme
    Interne / Externe
    Nombre de ports
    Uplink / Médias
    Montage
  • Voir tout

Bundles

TVA Incluse TVA Exclue
Plus de stock. Prière de nous contacter !
TVA Incluse TVA Exclue
Plus de stock. Prière de nous contacter !

TVA Incluse TVA Exclue
Plus de stock. Prière de nous contacter !

TVA Incluse TVA Exclue
Plus de stock. Prière de nous contacter !

Produits Similaires

Informations sur le produit

Features
  • Indoor ruggedized design for durable performance
  • Supports a range of wireless protocols including Wi-Fi 7
  • Equipped with beamforming technology for enhanced coverage
  • IoT-compatible for smart networking integration
  • Features Dynamic Frequency Selection for improved data flow
Specifications

General

Width 22.6 cm
Depth 22.6 cm
Height 4.9 cm
Device Type Radio access point
Ruggedized Design Indoor
Weight 1.47 kg

Expansion / Connectivity

Interfaces 1 x 100M/1G/2.5/5 Gigabit Ethernet - RJ-45 1 x management - RJ-45 1 x USB 2.0

Networking

Connectivity Technology Wireless
Remote Management Protocol HTTP
Status Indicators Status
Spread Spectrum Method OFDMA
Form Factor Wall / ceiling mountable
Capacity Spatial streams: 6
Frequency Band 2.4 GHz, 5 GHz, 6 GHz
Authentication Method MS-CHAP, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM
Line Coding Format 4096 QAM, OFDMA
Encryption Algorithm WPA3, WPA2, 256-bit SHA, AES, 128-bit AES-GCMP, 256-bit AES-GCMP, EAP-TLS, EAP-TTLS, PEAP, EAP-MSCHAPv2, EAP-FAST, PEAPv1, EAP-GTC, EAP-SIM, MSCHAPv2
Compliant Standards IEEE 802.11, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3, IEEE 802.3ab, IEEE 802.11h, IEEE 802.11d, IEEE 802.11i, Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED 6E, Wi-Fi CERTIFIED 7, IEEE 802.1x
Data Transfer Rate 9 Gbps
Features Multi-Link Operation (MLO), preamble puncturing, Target Wake Time (TWT), BSS Coloring, Maximum Ratio Combining (MRC), packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic Frequency Selection (DFS), cyclic shift diversity (CSD), beamforming technology, 802.1x authentication, uplink/downlink MU-MIMO, image signing, secure boot, Cisco Trust Anchor module, Maximal Ratio Combining, security slot (Kensington security lock compatible)
Data Link Protocol IEEE 802.11be (Wi-Fi 7), IEEE 802.11ax (Wi-Fi 6), IEEE 802.11ac, IEEE 802.11n, IEEE 802.11a, IEEE 802.11g, IEEE 802.11b, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth LE, 5 Gigabit Ethernet

Miscellaneous

Compliant Standards IEC 60950-1, IEC 62368-1 Third Edition, EN 60950-1, EN 62368-1 Third Edition, UL 60950-1, UL 62368-1 Third Edition, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1 Third Edition, AS/NZS 60950-1, AS/NZS 62368-1 Third Edition, UL 2043, Class 3, CISPR 32:2015+AMD1:2019, EN 55032:2015/A11:2020, EN IEC 61000-3-2:2019/A1:2021, EN 61000-3-3:2013+A1:2019, AS/NZS CISPR32:2015+AMD1:2020, FCC 47 CFR part 15 B class B, ICES-003 issue 7 Class B, VCCI-CISPR 32:2016, CNS 13438 (2006), KS C 9832:2019, QCVN 118:2018/BTTTT, EN 55035:2017+A11:2020, KS C 9835:2019, EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09), QCVN 18:2014, QCVN 112:2017/BTTTT, KS X 3124:2020, KS X 3126:2020, EN 61000-6-1:2019, EN 60601-1-2:2015 + A1:2021, EN 300 328, EN 301 893, EN 303 687, AS/NZS 4268, FCC CFR 47 Part 15C, RSP-100, RSS-GEN, RSS-247, LP0002, Japan Std. 66, Japan Std. 71, EN 50385:2017, AS/NZS 2772:2016, 47 CFR Part 2.1091, RSS-102, WEEE
Pricing Type Ready-to-Go

Power

Power Consumption Operational 12.4 Watt
Power Over Ethernet (PoE) Supported UPOE
Power Device External power adapter / power injector (not included)

Software / System Requirements

OS Required Cisco IOS XE 17.18.2 or later

Environmental Parameters

Max Operating Temperature 50 °C
Min Operating Temperature -20 °C
Humidity Range Operating 10 - 90% (non-condensing)

Processor / Memory / Storage

Flash Memory 16 GB
RAM 4096 MB

Aerial

Antenna Qty 2
Antenna External
Directivity Directional/omni-directional

Internet of Things (IoT)

Internet of Things (IoT) Compatible Yes
Communications Technology Bluetooth Low Energy (LE)
Base Warranty Non Non
