Rgs200 12p - Gbe Managed Poe+ Switch - 12-port
ITCurry #: 62305040 | Article #: RGS200-12P-ZZ0101F-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

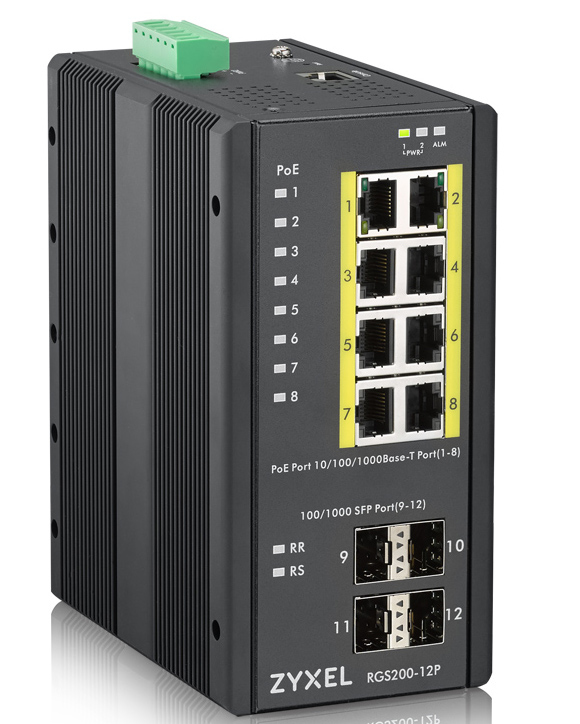

12-port GbE Managed PoE Switch
Along with the complete commercial product portfolio that offers customers with total network solutions, Zyxel introduces the new RGS Series of PoE switches with ruggedized design concepts to meet stringent outdoor or harsh network deployment scenarios. The special mechanism enables RGS200-12P to operate in outdoor, factory or other harsh environments for surveillance. In addition, it is also easy to manage RGS200-12P through a user-friendly Webbased GUI.
Benefits
Rugged and reliable design for harsh environments
Equipped with fanless and IP30 standard metal mechanism, the Zyxel RGS200-12P is able to deliver great thermal control and tolerate the dustiest deployments with ease, whether installed on a DIN rail or wall mounted for the most efficient use of cabinet space. Designed to handle temperatures ranging from -40°C to 75°C, the RGS200-12P can be placed in a variety of challenging environments and be adapted to broad range of field applications. When switching is applied normally in outdoor settings, ESD (electrostatic discharge), DC and Ethernet surge protection prevent the loss of business revenue and productivity due to damage or fatigue caused by power disturbances.
Quick failover for stable connectivity

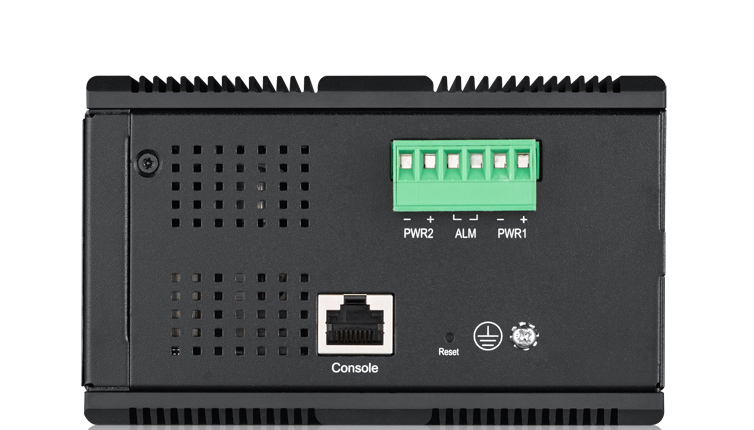

When deployed in harsher conditions, such as factory or outdoor settings, the Zyxel RGS200-12P creates fault-tolerant networks with redundant ring technology and rapid self-recovery capability to prevent interruptions. In the event of downtime caused by a network error, the rapid failover will restore normal operation in less than 20 ms. The switch’s dual DC power inputs and reverse power protection feature ensure continuous uptime and reliable operation.
Trouble-free installation and easy extendibility

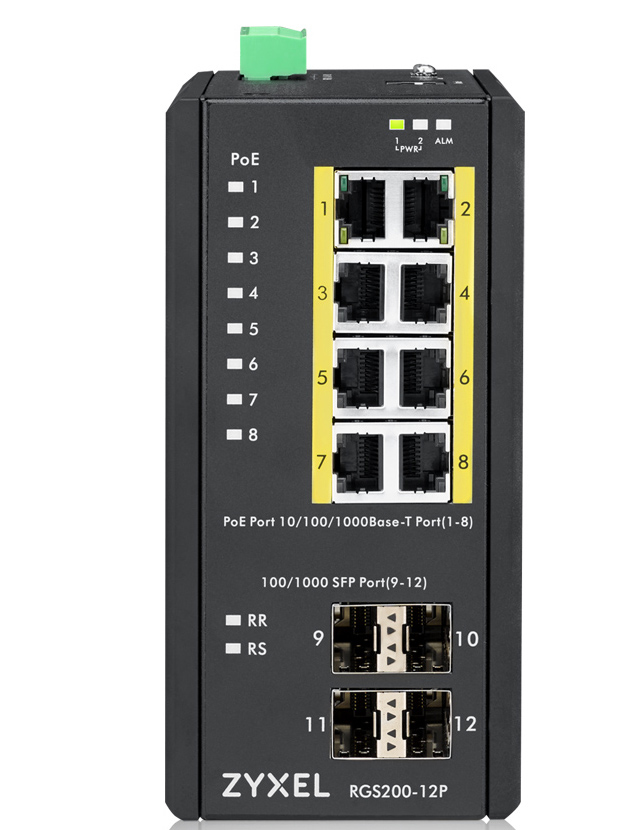

This rugged L2 Managed PoE switch comes with eight (8) 10/100/1000 Base-T copper PoE ports and four (4) 100/1000-Base-X SFP fiber interfaces. The switch also supports the 802.3at PoE plus standard, with each PoE port providing up to 30 W of power to efficiently accommodate the most power-hungry devices. The fiber uplink can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility.
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| MIB support | RFC 2233 IF MIB, RFC1213 MIB II, RFC 1757 RMON 1/2/3/9, RFC1215, RFC1493, RFC 2674, LLDP-EXT-MED MIB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Fiber optic connector | SFP |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Number of VLANs | 1024 |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Transmission distance (max) | 40 km |
| Data transmission | |
| Switching capacity | 24 Gbit/s |
| Throughput | 17.86 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.5 MB |
| Security | |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMP, SSH-2 |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Performance | |
| Firmware upgradeable | Yes |
| Buffer size | 512 KB |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 568430 h |
| Power | |
| DC input voltage | 12 - 58 V |
| Input voltage | 12 - 58 V |
| Power consumption (max) | 255 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 86955 BTU/h |
| Weight & dimensions | |
| Width | 77 mm |
| Depth | 127.3 mm |
| Height | 154 mm |
| Weight | 1.45 kg |
| Packaging data | |
| Wall mounting kit | Yes |
| Rack mount kit | Yes |
| Package width | 133 mm |
| Package depth | 192 mm |
| Package height | 238 mm |
| Package weight | 1.9 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
