Ze511 Colour Touch LCD Rh - Thermal Transfer - 102mm - 203dpi - USB And Serial And Ethernet
ITCurry #: 1825Q100 | Article #: ZE51142-R0E0100Z-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

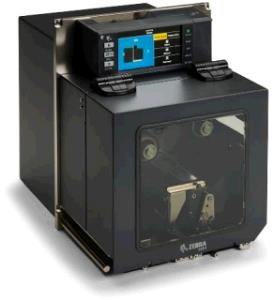

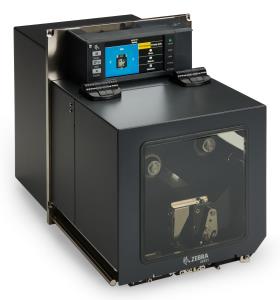

Advancing the ZE500 Series, the 4-inch ZE511 offers print speeds up to 18 ips. For premium print resolution, choose the 600 dpi option. Available in left- and right-hand orientations, it features a standard full-color, rotatable touch display that can be remotely mounted up to two meters. Add it to your existing wired and wireless networks, or connect directly to a PC. Use the included Print Touch tag (NFC) to simply tap a compatible mobile device to pair and print. Add field-installable features like connectivity and RFID.
Printing | |
Maximum resolution | 203 x 203 DPI |
Printable dot numbers | 8 dot |
Print speed | 457 mm/sec |
Print technology | Thermal transfer |
Type | POS printer |
Paper handling | |
Printing media thickness | 135 - 256 æm |
Maximum printing width | 11.4 cm |
Roll core diameter (max) | 2.54 cm |
Ports & interfaces | |
USB port | Yes |
Serial interface | Yes |
Serial interface type | RS-232 |
Bluetooth | Yes |
Bluetooth version | 4.1 |
Connectivity technology | Wired |
Network | |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100 Mbit/s |
Features | |
Built-in barcodes | Code 11, Code 128 (A/B/C), Code 93, EAN128, MaxiCode, PDF417, QR Code, UPC-A, UPC-E |
Internal memory | 512 MB |
Storage media | Flash |
Flash memory | 512 MB |
Design | |
Product colour | Black |
Built-in display | Yes |
Power | |
Power source type | AC |
AC input voltage | 90 - 264 V |
AC input frequency | 47 - 63 Hz |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 øC |
Storage temperature (T-T) | -40 - 71 øC |
Operating relative humidity (H-H) | 20 - 95% |
Storage relative humidity (H-H) | 5 - 95% |
Warranty | |
Base Warranty | Non Non |
Weight & dimensions | |
Width | 245 mm |
Depth | 379 mm |
Height | 300 mm |
Weight | 14.7 kg |
