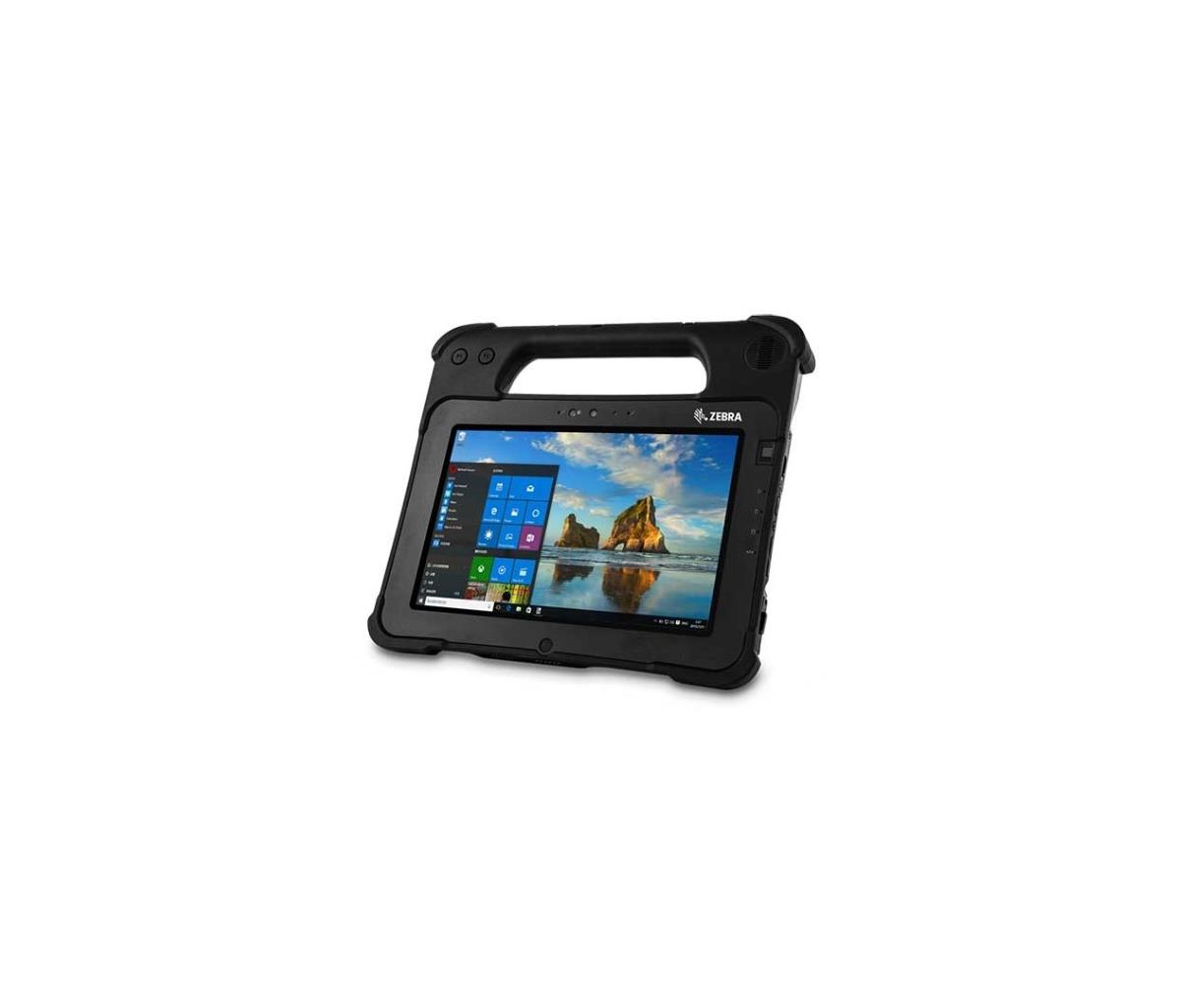

XPLORE XPAD L10 Vad Black - 10.1in - i5 Vpro 8350u - 16GB Ram - 128GB SSD - Win10 Pro With Eu Power
ITCurry #: 1825H298 | Article #: 210303-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
A VERSATILE RUGGED TABLET PLATFORM RUGGED TO THE CORE.
The Zebra L10 rugged platform, formerly manufactured by Xplore Technologies, offers a variety of tablet configurations and a shared accessory ecosystem that sets a new standard in office, vehicle and field-based computing.
Whether your mobile workers prefer a slate tablet (XSLATE L10), a tablet with a rigid-handle and built-in barcode reader option (XPAD L10), or a 2-in-1 laptop/tablet with a full-featured keyboard (XBOOK L10), the functional flexibility of the Zebra L10 ensures that your workers have the right computing tool for their job. Only Zebra offers this many performance, security, connectivity and accessory options in one rugged mobile computer platform.
GET THROUGH TASKS FASTER
With more CPU options than ever, you’re guaranteed that the performance-driven L10 rugged tablet platform will be the right fit for your organization and budget, whatever your operating system. For Windows, choose between three different 8th Generation Intel Core-Series processors or an Intel Pentium-series processor. Add a PCIe solid state drive (SSD) for an extra speed boost. For Android, the Qualcomm Snapdragon 660 gives you power and performance to spare. The L10 is available with a range of RAM and storage options for every business and agency application.
EXPAND YOUR USAGE CAPABILITIES
The L10 combines latest-generation NFC, Bluetooth, 802.11ac Wi-Fi, GPS and 4G LTE mobile broadband technologies to provide uninterrupted connectivity. And each L10 rugged tablet can be equipped with workflow specific tools needed for nearly any application. This includes an optional true serial or HDMI-in port, UHF RFID reader (AEI), and built-in bar code reader (XPad only). RJ-45 jacks and multiple USB ports are standard on all models. Front facing and 13 MP rear facing cameras capture images and video, while built-in microphones support VoIP collaboration.
USE IT VIRTUALLY ANYWHERE
The L10 platform defines a new standard of rugged tablets. It is rated for a 6 ft. drop and is subjected to a raft of MIL-STD-810G tests. It maintains its IP65 rating even with the port doors open. It can be used in cold storage, blowing dust, or driving rain. With daylight or sunlight viewable reinforced glass displays and an active digitizer option, your screen will be easy to read wherever you use it. Plus, the optional 5 pass-through antennas means it's ideal for mounting in vehicles of all types.
| Display | |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1920 x 1200 pixels |
| Display brightness | 1000 cd/mý |
| Display glass type | Gorilla Glass |
| Touchscreen type | Capacitive |
| HD type | WUXGA |
| Native aspect ratio | 16:10 |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© CoreT i5 |
| Processor generation | 8th gen Intel© CoreT i5 |
| Processor model | i5-8350U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 1.7 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Bus type | OPI |
| Conflict-Free processor | Yes |
| Processor code | SR3L9 |
| Processor codename | Kaby Lake R |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 42 X 24 mm |
| Stepping | Y0 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| System bus rate | 4 GT/s |
| Tjunction | 100 øC |
| Thermal Design Power (TDP) | 15 W |
| Thermal Monitoring Technologies | Yes |
| Configurable TDP-down frequency | 0.8 GHz |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | LPDDR3-SDRAM |
| Storage | |
| Internal storage capacity | 128 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSDXC |
| Storage media | SSD |
| Graphics | |
| Graphics card family | Intel |
| Graphics card | UHD Graphics 620 |
| Audio | |
| Number of built-in speakers | 1 |
| Number of microphones | 2 |
| Audio system | High De?nition (HD) |
| Camera | |
| Rear camera type | Single camera |
| Rear camera resolution (numeric) | 13 MP |
| Front camera | Yes |
| Front camera resolution (numeric) | 2 MP |
| Network | |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Design | |
| Device type | Tablet PC |
| Form factor | Slate |
| Product colour | Black |
| Performance | |
| Trusted Platform Module (TPM) | Yes |
| Security | |
| Fingerprint reader | Yes |
| Software | |
| Platform | Windows |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Processor special features | |
| Intel© Turbo Boost Technology | 2.0 |
| Intel© Hyper Threading Technology (Intel© HT Technology) | Yes |
| Intel© My WiFi Technology (Intel© MWT) | Yes |
| Intel© Identity Protection Technology (Intel© IPT) | Yes |
| Intel© Smart Response Technology | Yes |
| Intel© Quick Sync Video Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel© Clear Video HD Technology (Intel© CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel© InTruT 3D Technology | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel© AES New Instructions (Intel© AES-NI) | Yes |
| Intel© Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel© Secure Key | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel© OS Guard | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (max) | 10 h |
| Endurance | |
| International Protection (IP) code | IP65 |
| Weight & dimensions | |
| Width | 280.8 mm |
| Depth | 22 mm |
| Height | 255.9 mm |
| Weight | 1.4 kg |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 øC |
| Storage temperature (T-T) | -30 - 70 øC |
| Operating relative humidity (H-H) | 3 - 95% |
| Operating altitude | 0 - 15240 m |
| Other features | |
| Processor socket | BGA 1356 |
| Processor ARK ID | 124969 |
| Warranty | |
| Base Warranty | Non Non |
