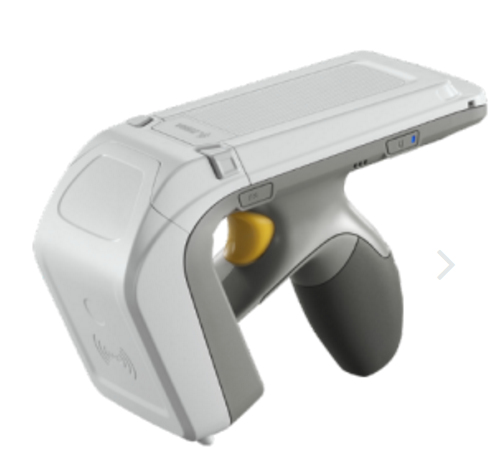

Rfd8500 Rfid Gun Sled Bt 4410mah 3.7vdc Eu W/o Img
ITCurry #: 1825C078 | Article #: RFD8500-1000100-EU-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
TURNS ALMOST ANY MOBILE COMPUTER INTO A HANDHELD RFID READER
Add high-performance next generation RFID and 1D/2D barcode scanning to the mobile devices of today and tomorrow — simply, easily and cost-effectively. Just pair the Bluetooth-enabled RFD8500 with a compatible Zebra or third-party mobile device and you’re ready to go. You can attach the mobile device to the RFD8500 sled for a complete one-piece solution — or workers can put the mobile device in a pocket and use the RFD8500 in standalone mode.
MULTI-OS, MULTI-PLATFORM AND EASY TO DEPLOY
Leverage your mobile computing strategy and add world-class data collection capability in an economical way. And, it's easy to deploy. Just twist to lock onto or remove the RFD8500 from any Zebra or third-party mobile computer via a Quad Lock or slide-on/slide-off Zebra custom-tailored adaptor
FLEXIBLE CONNECTIVITY OPTIONS: BLUETOOTH® OR BATCH MODE
Enable a real-time wireless connection to your mobile or backend systems via Bluetooth 2.1 or later. If a wireless connection is not available, batch mode enables the collection of up to 500 bar codes and/or 42,000 RFID tags.
HIGH-PERFORMANCE BATTERY AND TAG CAPTURE
With AutoMac and our patent-pending breakthrough antenna design, you get maximum read/write speeds and coverage required to maximize workforce efficiency. And, our unique power-optimizing algorithm delivers the superior battery cycle times that ensure full-shift power, even with intensive usage.
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Read rate (max) | 600 reads/s |
| Ports & interfaces | |
| Standard interfaces | Bluetooth |
| Bluetooth version | 2.1+EDR |
| Operating frequency | 865 - 868 MHz |
| Performance | |
| Protection features | Dust resistant, Splash proof |
| LED indicators | Yes |
| Product colour | Grey |
| Power | |
| Power source type | Battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 4410 mAh |
| Weight & dimensions | |
| Width | 185 mm |
| Depth | 130 mm |
| Height | 80 mm |
| Weight | 430 g |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 5 - 85% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Other features | |
| Mobile operating systems supported | Android 4.4, Android 5.0, Android 5.1, iOS 8.0, iOS 8.2, iOS 9.0 |
| Warranty | |
| Base Warranty | Non Non |
