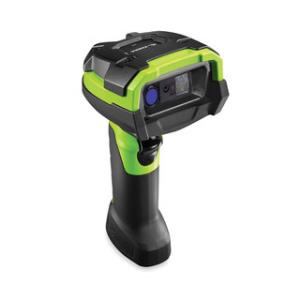

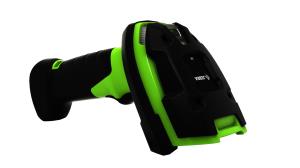

Li3608 Rugged Linear Imager Vibration Motor Industrial Green
ITCurry #: 1825F957 | Article #: LI3608-ER20003VZWW-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Unstoppable performance for extended-range 1D barcode capture
"As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-ER corded and DS3678-ER cordless scanners are ready for one of the world’s toughest environments — the warehouse." Designed to capture virtually any 1D barcode from as close as 2 in./5,1 cm to as far as 56 ft./17,1 m away, these scanners provide the ultimate in versatility — workers can capture codes in hand as well as on the top of your warehouse racks. And these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity to drive throughput, accuracy and customer service to a new level.
In addition to superior scanning performance, an ultra-rugged design and unparalleled manageability, you get more features that make this scanner easier than ever for your workers to use, including the crispest aiming pattern for first-time accurate capture of barcodes on pick lists; mix-and-match feedback modes so workers can see, hear or feel successful scans; an extreme temperature rating for freezer use and more. And Zebra’s Network Connect for Automation delivers a seamless connection between LI3608-ER/LI3678-ER scanners and your Industrial Ethernet network without additional third party equipment, reducing complexity, and eliminating a point of failure.
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Working distance | 17.1 m |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Wavelength | 660 nm |
| Pitch reading angle | -65 - 65ø |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Data transfer rate | 3 Mbit/s |
| Performance | |
| International Protection (IP) code | IP65, IP67 |
| Protection features | Dust resistant, Water resistant |
| LED indicators | Yes |
| Product colour | Black, Green |
| Programming function | Yes |
| Power | |
| Power source type | DC |
| Number of reads per charge | 100000 |
| Input voltage | 4.5 - 12.6 V |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Width | 77 mm |
| Depth | 132 mm |
| Height | 185 mm |
| Weight | 327 g |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
