Barcode Scanner Ds3608-xr Corded Rockwell Industrial Ethernet Straight Cable Kit
ITCurry #: 1825P971 | Article #: DS3608-XR3RF50AZVW-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

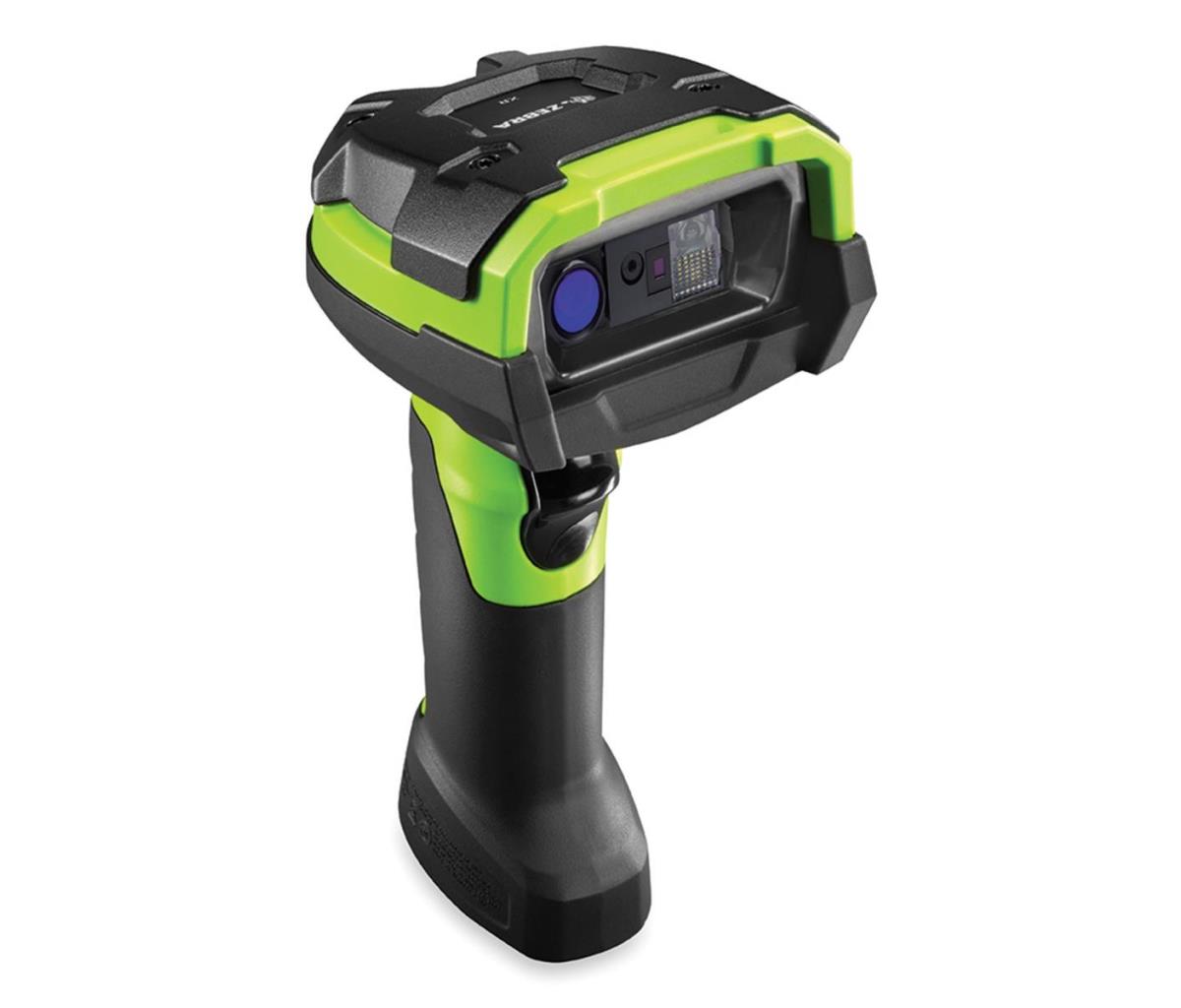

DS3600-XR Ultra-Rugged Scanner
Unstoppable performance now with the industry’s longest scanning range
When tasks get tougher, you need a scanner that’s ready for the job. The DS3600-XR sets a new standard in extended range performance, enabling workers to scan faster, farther and more accurately than ever before. The DS3600-XR maintains the proven ruggedness of the DS3600-ER, increases scanning range by more than 40% and aimer visibility up to 7x — while decreasing device weight by 10%. The DS3600-XR delivers an edge over the competition for both rapidly proliferating 2D barcodes and traditional 1D. It seamlessly reads barcodes from as close as 2 in./5 cm to over 105 ft./32 m — nearer and farther than any scanner in its class. A high visibility green laser aimer makes scanning easier and more accurate at varying distances and lighting conditions. The DS3600-XR is virtually indestructible with a best-in-class 10 ft./3 m drop spec to concrete. Superior cordless technology makes it easier for your workers to use and manage their cordless scanners. And Zebra DataCapture DNA takes scanner performance far beyond the basics.
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | Laser |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Wavelength | 520 nm |
| Tilt reading angle | -60 - 60ø |
| Pitch reading angle | -60 - 60ø |
| Yaw reading angle | -360 - 360ø |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | Keyboard wedge, RS-232, USB |
| Ethernet LAN | Yes |
| Performance | |
| International Protection (IP) code | IP67 |
| Protection features | Water resistant |
| LED indicators | Yes |
| Print contrast | 25% |
| Product colour | Black, Green |
| Programming function | Yes |
| Power | |
| Power source type | Battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
| Weight & dimensions | |
| Width | 132 mm |
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 308 g |
| Packaging data | |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Drop resistance | 2.4 m |
| Technical details | |
| Compliance certificates | RoHS |
| Warranty | |
| Base Warranty | Non Non |
