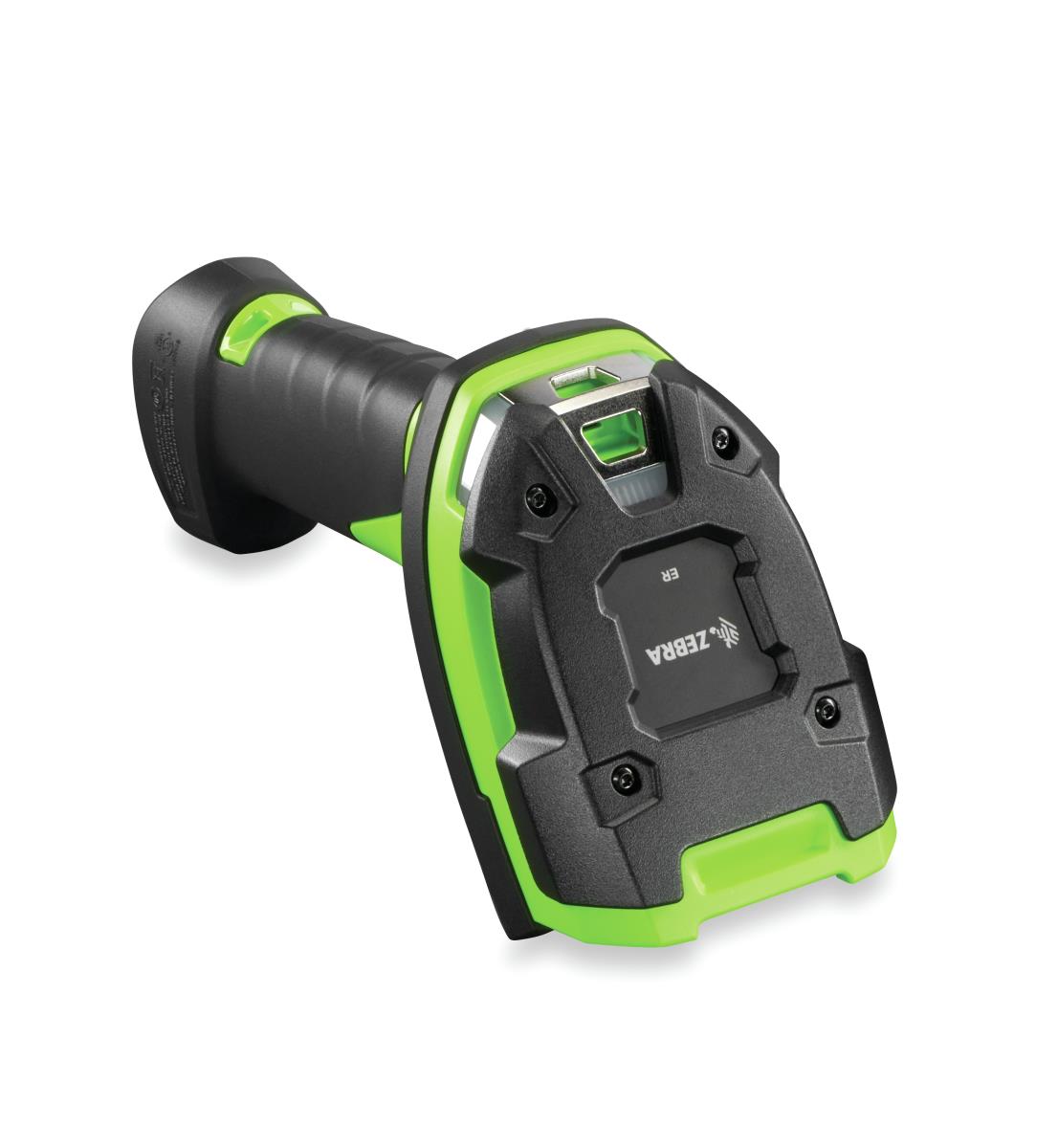

Barcode Scanner Ds3608 Rugg Area Imager Ext Range Corded
ITCurry #: 1825C151 | Article #: DS3608-ER20003VZWW-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
UNSTOPPABLE PERFORMANCE FOR EXTENDED-RANGE 1D/2D BARCODE CAPTURE
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-ER corded and DS3678-ER cordless scanners are ready for one of the world’s toughest environments — the warehouse. Designed to capture any 1D or 2D barcode from near contact to as far as 70 ft./ 21.4 m away, these scanners provide the ultimate in versatility — workers can capture large picklist codes and small codes at near contact as easily as barcodes on pallets and location codes on the top of your warehouse racks. And truly unstoppable performance helps you drive throughput, accuracy and customer service to a new level.
SUPERIOR PERFORMANCE
You get the ultimate in scanning performance — period. Your workers can scan virtually any 1D or 2D barcode from near contact to as far as 70 ft./ 21.4 m away in practically any condition, as fast as they can pull the trigger. Even if barcodes are under shrinkwrap on a pallet; damaged, dirty or poorly printed; on a picklist; or on your highest warehouse rack, no problem — this intelligent scanner can handle it all.
ULTRA-RUGGED DESIGN
The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. These freezer-ready corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.
UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.
| Scanning | |
| Type | Handheld bar code reader |
| Optical sensor resolution | 1280 pixels |
| Scanner type | 1D/2D |
| Sensor type | Laser |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 655 nm |
| Tilt reading angle | -65 - 65ø |
| Pitch reading angle | -65 - 65ø |
| Yaw reading angle | -45 - 45ø |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Ethernet LAN | Yes |
| Performance | |
| International Protection (IP) code | IP67 |
| Protection features | Dust resistant, Shock resistant, Water resistant |
| LED indicators | Yes |
| Product colour | Black, Green |
| Programming function | Yes |
| Power | |
| Power source type | Battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
| Number of reads per charge | 70000 |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Width | 132 mm |
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 334 g |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
