Product Information

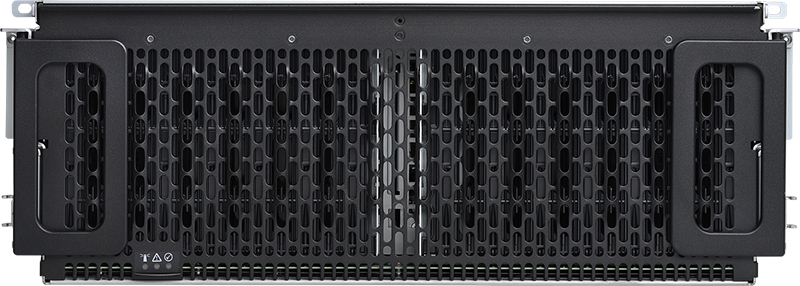

The Ultrastar Data102 is a key element of next-generation disaggregated storage and software-defined storage (SDS) systems, delivering extreme density and the flexibility to balance performance with cost.
- High Density – Up to 102 HGST HelioSeal® HDDs providing up to 1.2PB of raw storage in a 4U enclosure
- Flexible – Choice of SAS or SATA and up to 24 slots can be populated with SSDs for a data acceleration tier
- Innovative – Patented IsoVibe™ and ArcticFlow™ technologies improve performance and cooling
| Storage | |
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 60 |
| Total installed storage capacity | 720 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 102 |
| Storage drive capacity | 12 TB |
| Storage drive interface | Serial Attached SCSI (SAS) III |
| Storage drive size | 3.5" |
| Supported storage drive interfaces | SAS-3, Serial ATA III |
| Data transfer rate | 12 Gbit/s |
| Hot-swap drive bays | Yes |
| Ports & interfaces | |
| USB connectivity | No |
| Serial interface type | RJ-45 |
| Mini-SAS host port | Yes |
| Number of mini-SAS host ports | 12 |
| Design | |
| Chassis type | Rack (4U) |
| Product colour | Black, Grey |
| LED indicators | Yes |
| Number of fans | 6 fan(s) |
| Noise level | 72 dB |
| Redundant fans support | Yes |
| Built-in display | No |
| Performance | |
| Device class | Small & Medium Business |
| Power | |
| Power supply unit (PSU) capacity | 1600 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Weight & dimensions | |
| Width | 447 mm |
| Depth | 1047 mm |
| Height | 175 mm |
| Disk enclosure weight | 31.8 kg |
| Logistics data | |
| Harmonized System (HS) code | 84717020 |
| Warranty | |
| Base Warranty | Non Non |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 øC |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -40 - 60 øC |
| Operating altitude | 0 - 915 m |
