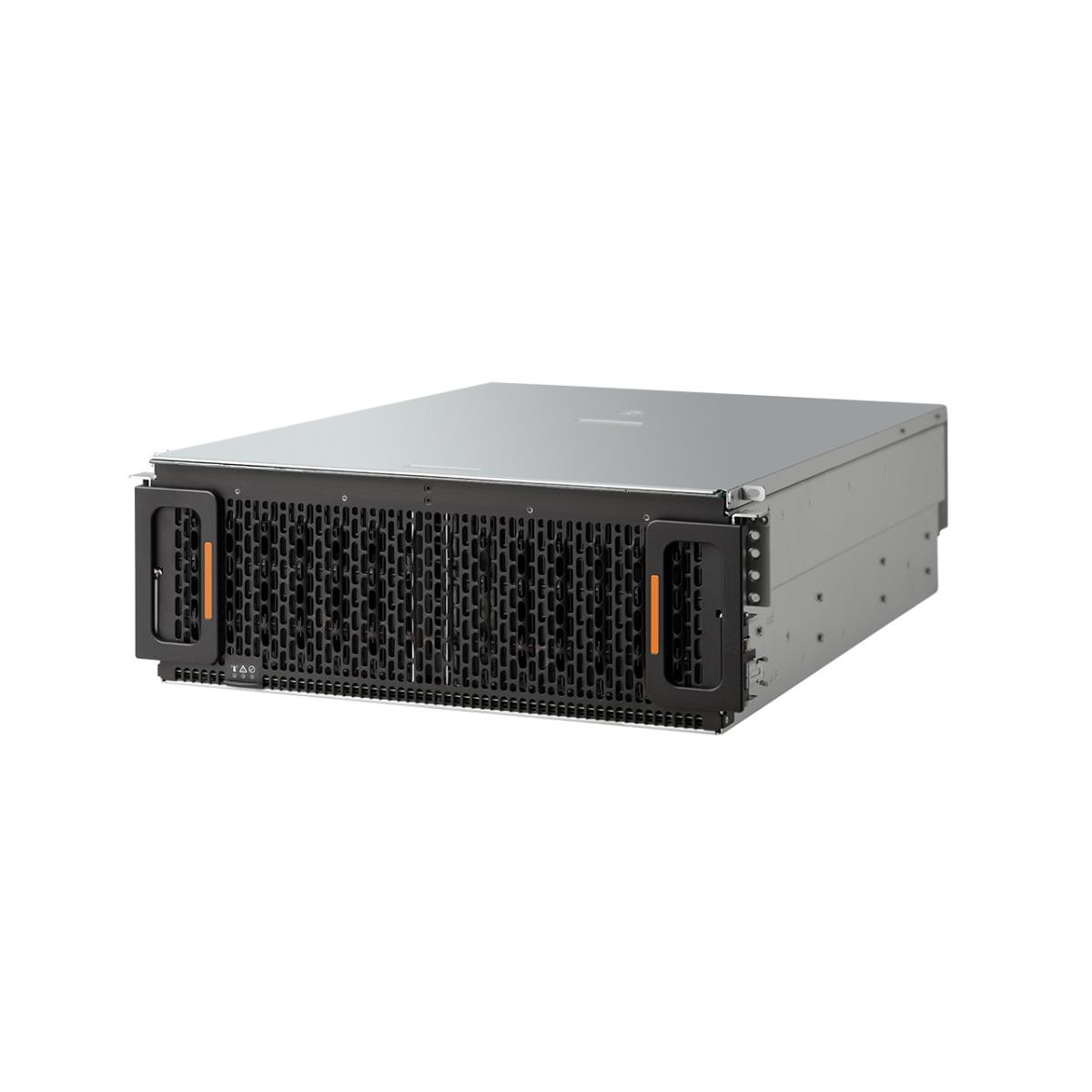

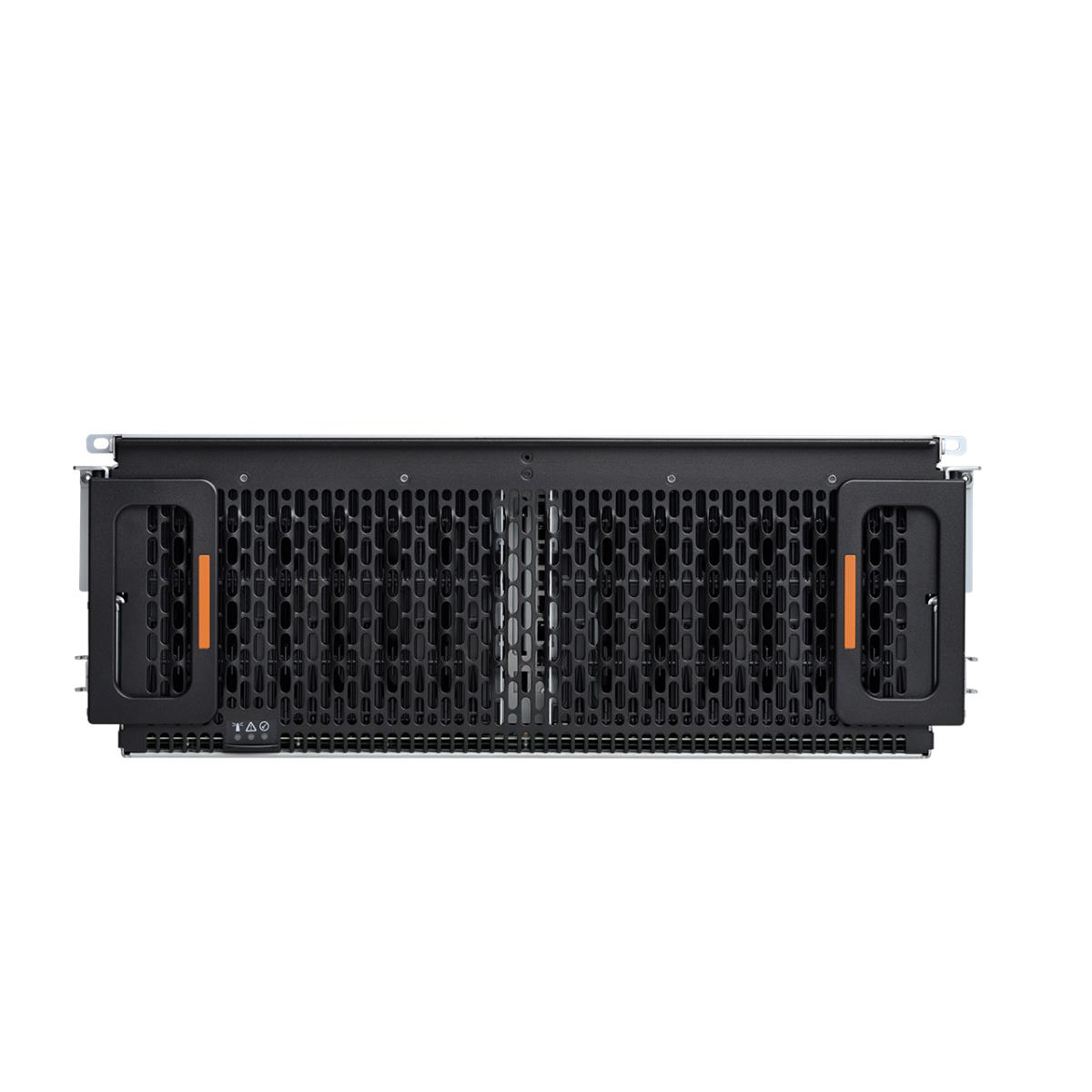

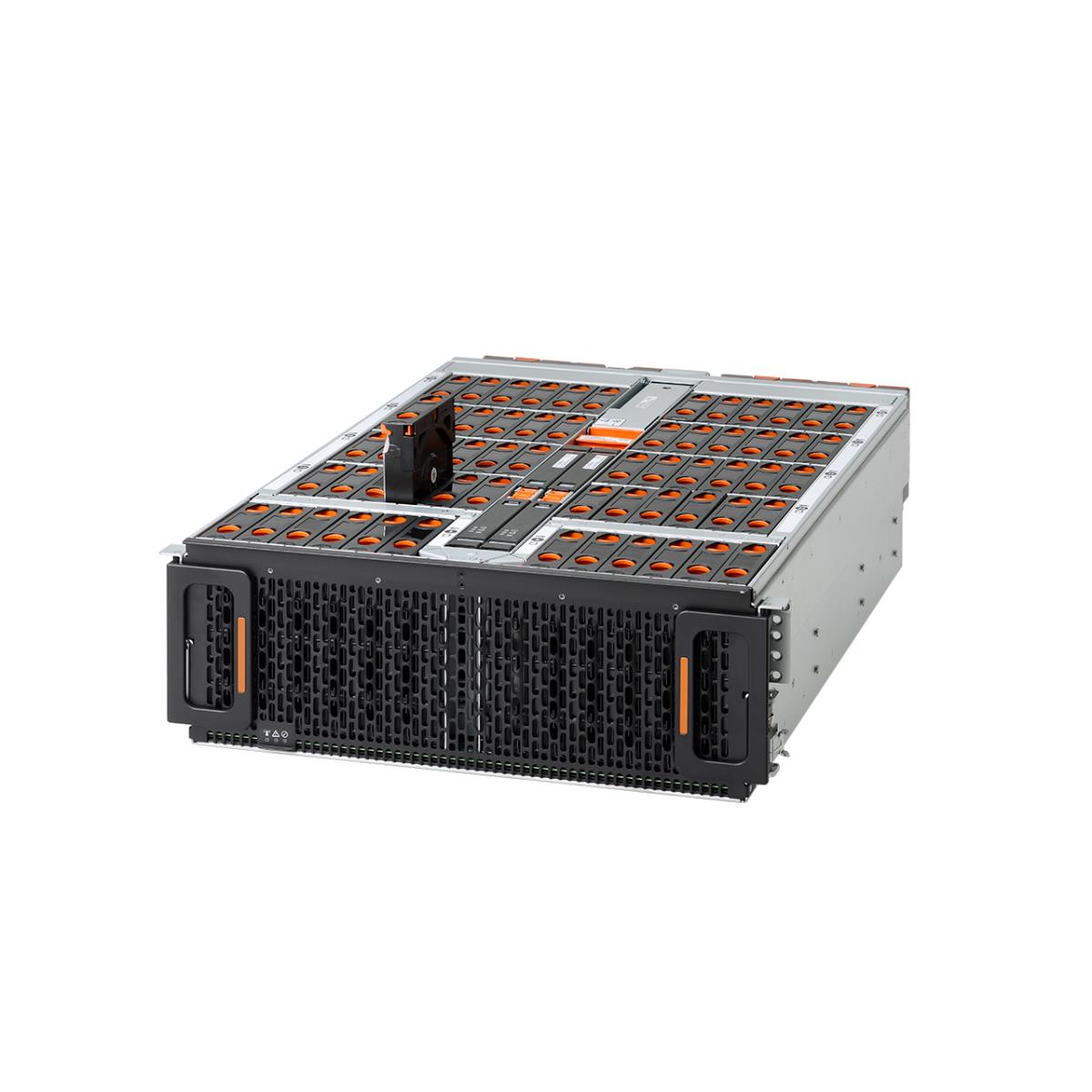

The Ultrastar Data102 storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The Ultrastar Data102 provides up to 2.2PB1 of raw storage in 4U using our 22TB CMR HDDs in a compact and efficient form factor. The Ultrastar Data102 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD.
IsoVibe™ Vibration Isolation Technology

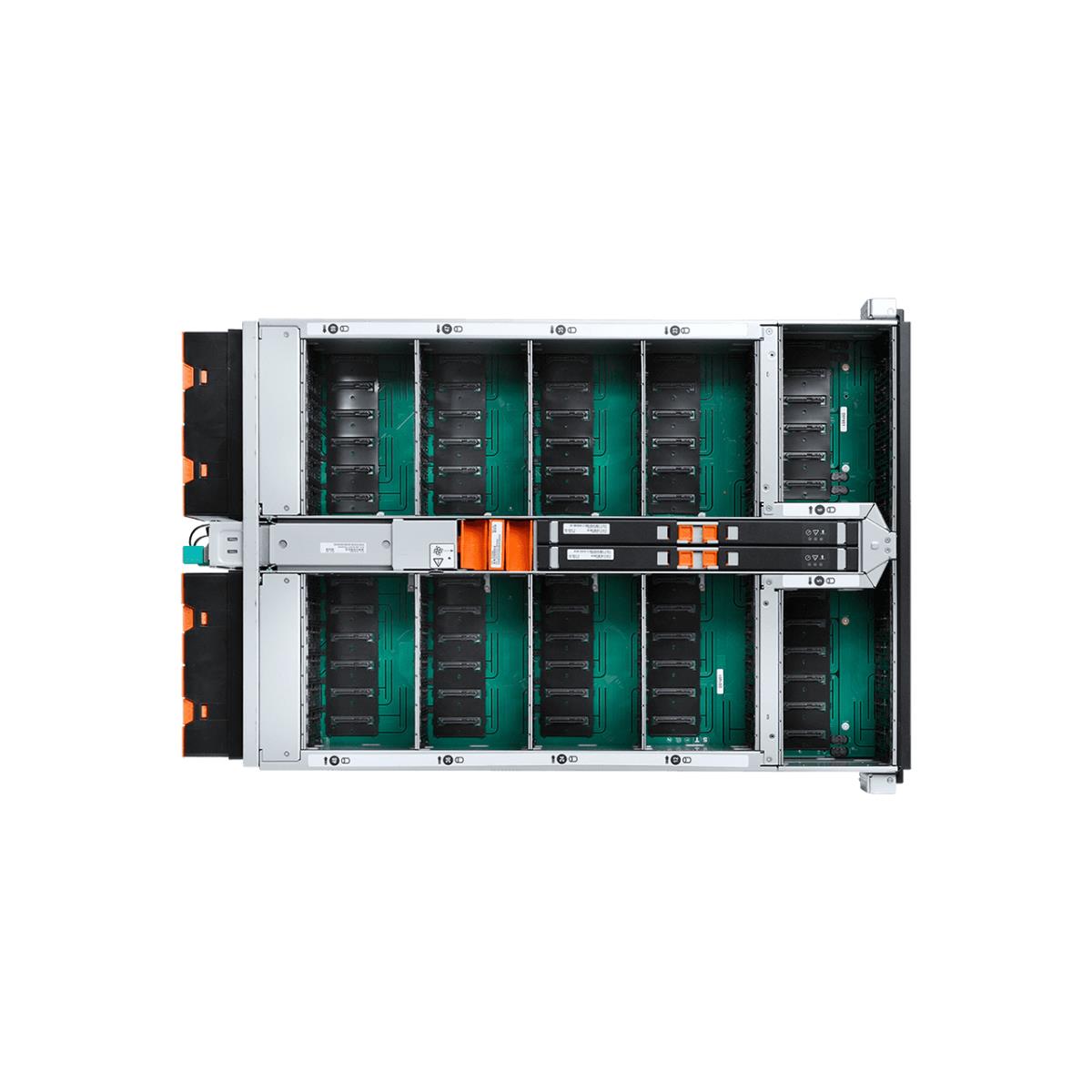

Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.
ArcticFlow™ Thermal Zone Cooling Technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.
Western Digital Resource Manager
A GUI-based tool that enables real-time monitoring and management of the platform and provides a consolidated dashboard displaying the most critical information. Other views allow platform configuration, health monitoring, and maintenance.
| Storage | |
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Total installed storage capacity | 216 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 102 |
| Maximum supported storage capacity | 22000 TB |
| Storage drive interface | Serial ATA III |
| Storage drive size | 3.5" |
| Supported storage drive interfaces | SAS, Serial ATA III |
| Hot-swap drive bays | Yes |
| Ports & interfaces | |
| USB connectivity | No |
| Mini-SAS host port | Yes |
| Design | |
| Chassis type | Rack (4U) |
| Product colour | Black |
| LED indicators | Activity, Fault, Power |
| Number of fans | 4 fan(s) |
| Redundant fans support | Yes |
| Performance | |
| Device class | Large Enterprise Business |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power consumption (max) | 1800 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 / 60 Hz |
| System requirements | |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2016, Windows Server 2019 |
| Weight & dimensions | |
| Width | 447 mm |
| Depth | 1047 mm |
| Height | 175 mm |
| Weight | 31.8 kg |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 øC |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating altitude | -300 - 3048 m |
| Warranty | |
| Base Warranty | Non Non |
