SSD WD Blue SN550 NVMe 250GB M.2 Pci-e Gen 3
ITCurry #: 60505813 | Article #: WDBA3V2500ANC-WRSN-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

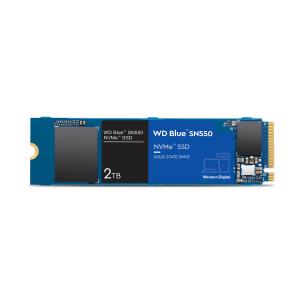

WD Blue SN550 NVMe SSD
Put NVMe power at the heart of your PC for lightning-fast, ultraresponsive performance. The WD Blue SN550 NVMe SSD can deliver up to 4 times the read speed of SATA SSDs. Whether you’re working, creating, casually gaming, or processing large amounts of data, take advantage of this powerful internal drive’s high speeds to do more, faster. Available in capacities up to 1TB in an affordable M.2 2280 form factor, there’s no time like now to make the change to NVMe.
The Right Storage for Your Next PC
NVMe goes mainstream with a powerful, cost-effective storage solution that adds to the reliability of an SSD.
Boost Your Performance
Get breakneck sequential read speeds up to 2,400 MB/s to improve your productivity no matter what you’re doing or creating.
Think Small
Build powerful small-form factor PCs with a slim single-sided M.2 2280 PCIe Gen3 x4 NVMe SSD.
Do More With Less
Scalable NVMe hardware, accelerated architecture for high performance and low power draw.
Do More, Faster
Western Digital -designed controller and firmware paired with our latest 3D NAND for optimized, consistent performance.
Continuing the Legacy
Thousands of hours of hardware, firmware and validation testing combine to advance the award-winning WD Blue heritage of quality and reliability.
| Features | |
| SSD form factor | M.2 |
| SSD capacity | 250 GB |
| Interface | PCI Express 3.0 |
| Memory type | 3D NAND |
| NVMe | Yes |
| Data transfer rate | 8 Gbit/s |
| Read speed | 2400 MB/s |
| Write speed | 950 MB/s |
| Random read (4KB) | 170000 IOPS |
| Random write (4KB) | 135000 IOPS |
| PCI Express interface data lanes | x4 |
| Mean time between failures (MTBF) | 1700000 h |
| TBW rating | 150 |
| Certification | BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC, KCC, Morocco, RCM, TUV, UL, VCCI |
| Power | |
| Power consumption (max) | 3.5 W |
| Power consumption (average) | 0.075 W |
| Power consumption (sleep) | 0.005 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -55 - 85 øC |
| Operating vibration | 5 G |
| Non-operating vibration | 4.9 G |
| Operating shock | 1500 G |
| Weight & dimensions | |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.38 mm |
| Weight | 6.5 g |
| Warranty | |
| Base Warranty | Non Non |
