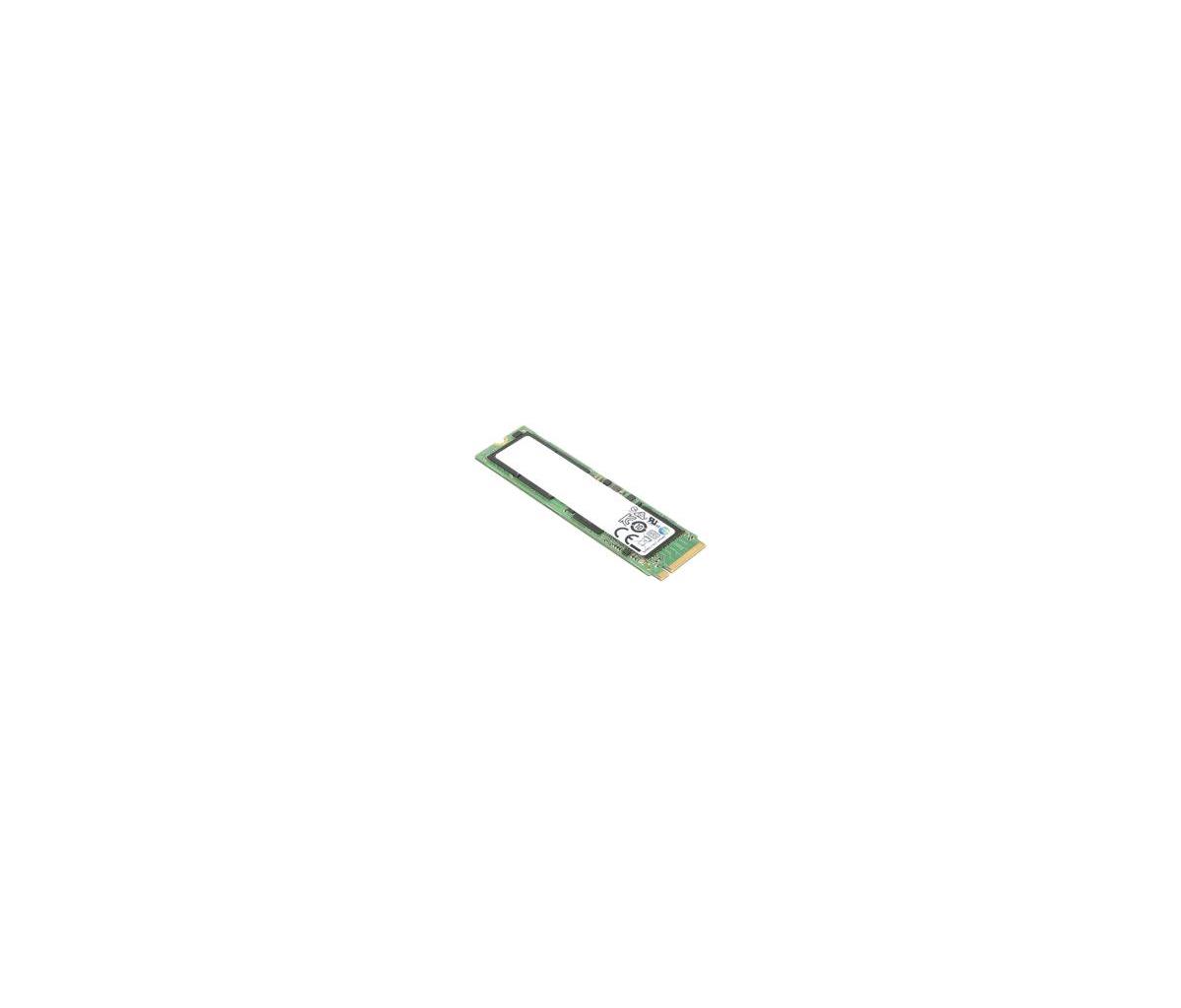

SSD - WD Blue SN5100 - 1000GB - Pci-e - M2
ITCurry #: 60508278 | Article #: WDS100T5B0E-00CPE0-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Harness the power of AI with the WD Blue® SN5100 NVMe™ SSD.
The WD Blue® SN5100 NVMe™ SSD with PCIe® Gen 4.0 delivers read speeds up to 7,100 MB/s, 30% faster than our prior generation. Create and store more with capacities up to 4TB on M.2 2280 built with our next generation SANDISK 3D CBA NAND technology. And with SANDISK nCache 4.0, you can copy large files or project folders faster than before.
Speed up your projects
Accelerate your AI-enabled workflow and loading assets quicker with PCIe® Gen 4.0 read speeds up to 7,100 MB/s, 30% faster than our prior generation.
Create and store more
Make more room for your masterpieces with capacities from 500GB up to 4TB on M.2 2280 deploying next generation SANDISK 3D CBA NAND technology.
Work faster, wait less
Copy large files or project folders in blistering speeds thanks to our SANDISK nCache™ 4.0 technology.
Create confidently
Your new drive comes with a 5-year limited warranty, giving you peace of mind that your hard work isn’t wasted.
Free Acronis® True Image™ software
Download Acronis True Image™ for SANDISK data migration software to transfer your files to your new SSD.
Monitor your new drive
Monitor your SSD’s performance and check for updates with the downloadable SANDISK Dashboard application.
| Features | |
| Security algorithms | TCG Pyrite |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Memory type | QLC 3D NAND |
| Component for | PC/Laptop |
| Hardware encryption | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 7100 MB/s |
| Write speed | 6700 MB/s |
| Random read (4KB) | 1000000 IOPS |
| Random write (4KB) | 1300000 IOPS |
| PCI Express interface data lanes | x4 |
| Mean time between failures (MTBF) | 1750000 h |
| TBW rating | 600 |
| Power | |
| Average power consumption (read) | 3.9 W |
| Average power consumption (write) | 3.9 W |
| Power consumption (idle) | 0.004 W |
| Weight & dimensions | |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.38 mm |
| Weight | 5.7 g |
| Packaging data | |
| Package width | 101.6 mm |
| Package depth | 21 mm |
| Package height | 126 mm |
| Package weight | 49 g |
| Package type | Box |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 85 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating vibration | 5 G |
| Non-operating vibration | 4.9 G |
| Operating shock | 1500 G |
| Other features | |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), ICES, KCC, RCM, RoHS, UKCA, UL, VCCI |
| Warranty | |
| Base Warranty | Non Non |
