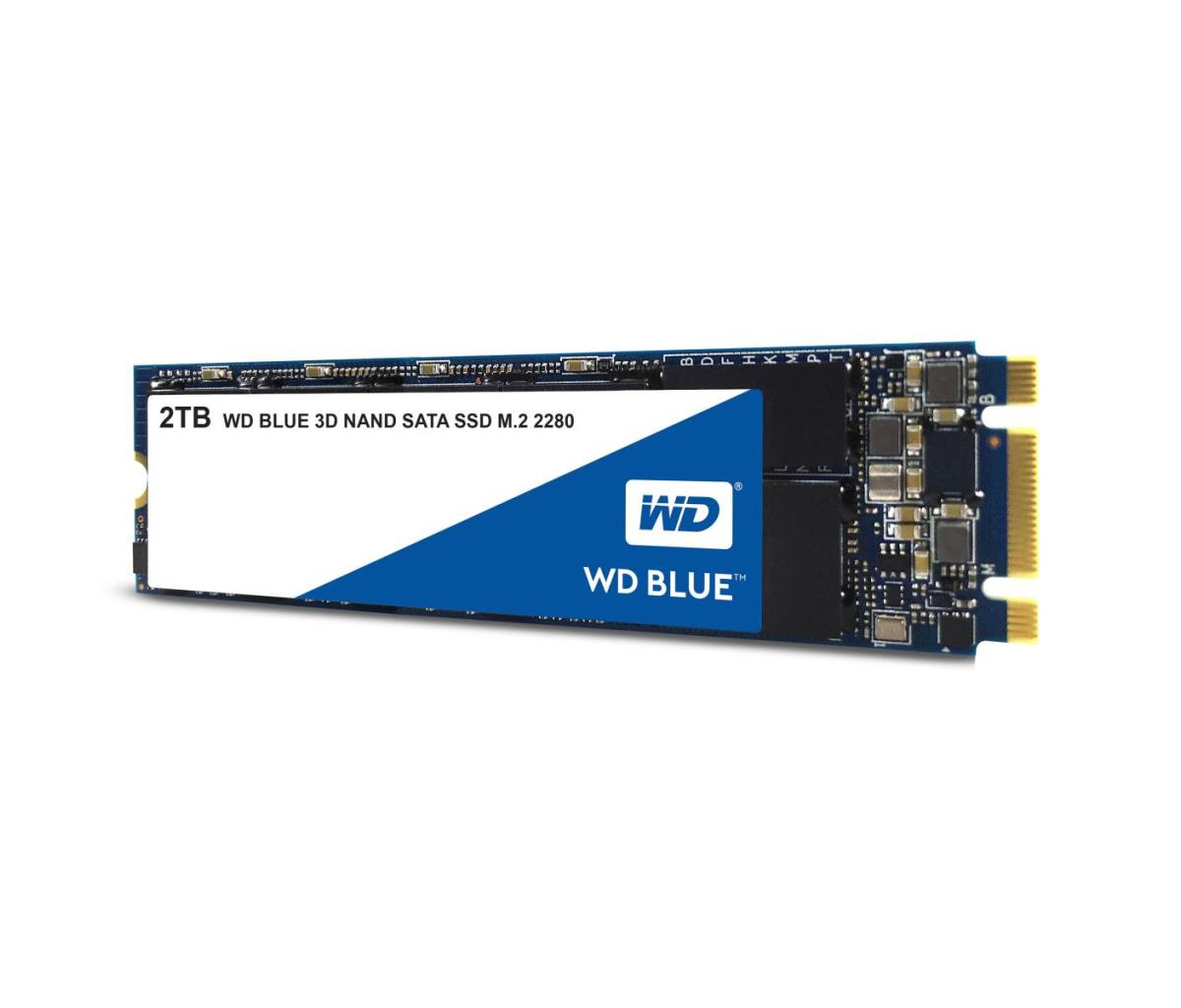

SSD WD Blue 2TB M.2 3D NAND
ITCurry #: 60505529 | Article #: WDBK3U0020BNC-WRSN-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
High capacity with enhanced reliability
A WD Blue 3D NAND SATA SSD uses 3D NAND technology not only for higher capacities (up to 4TB in the 2.5" 7mm form factor1) than the previous generation WD Blue SSDs, but also to help reduce cell-to-cell interference for enhanced reliability.
Superior Performance
3D NAND technology enables Sequential Read Speeds up to 560MB/s and Sequential Write Speeds up to 530MB/s.
Leading-Edge Reliability
An SSD is designed with no moving parts to help protect against data loss if it is accidentally bumped or dropped. And with 1.75M hours MTTF (mean time to failure)2, up to 600 TBW (terabytes written)3, and several error correction technologies, WD Blue 3D NAND SATA SSDs can help guard data for years to come.
Broad Compatibility
With a certification from the WD Functional Integrity Testing Lab (F.I.T. Lab™), every WD Blue 3D NAND SATA SSD is verified for compatibility with a wide range of desktop and laptop computers. Every WD Blue 3D NAND SATA SSD goes through extensive compatibility and reliability testing to ensure it meets the high standards of the WD brand.
Downloadable WD SSD Dashboard And Acronis Software
Monitor your drive’s available capacity, operating temperatures, SMART attributes and more with the WD SSD Dashboard. Acronis® True Image™ WD Edition software, available as a free download, can clone drives and backup your operating system, applications, settings and all of your data.
| Features | |
| SSD form factor | M.2 |
| SSD capacity | 2 TB |
| Interface | Serial ATA III |
| Memory type | 3D TLC |
| NVMe | No |
| Component for | PC/Laptop |
| Data transfer rate | 6 Gbit/s |
| Read speed | 560 MB/s |
| Write speed | 530 MB/s |
| Random read (4KB) | 95000 IOPS |
| Random write (4KB) | 84000 IOPS |
| M.2 SSD size | 2280 (22 x 80 mm) |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^16 bits read |
| Mean time between failures (MTBF) | 1750000 h |
| TBW rating | 500 |
| Certification | FCC, UL, TUV, KC, BSMI, VCCI, Morocco |
| Power | |
| Operating voltage | 3.3 V |
| Power consumption (read) | 3 W |
| Power consumption (write) | 3.8 W |
| Power consumption (sleep) | 0.012 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -55 - 85 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating vibration | 5 G |
| Non-operating vibration | 4.9 G |
| Operating shock | 1500 G |
| Maximum operating altitude | 12192 m |
| Weight & dimensions | |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.38 mm |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
| Warranty | |
| Base Warranty | Non Non |
