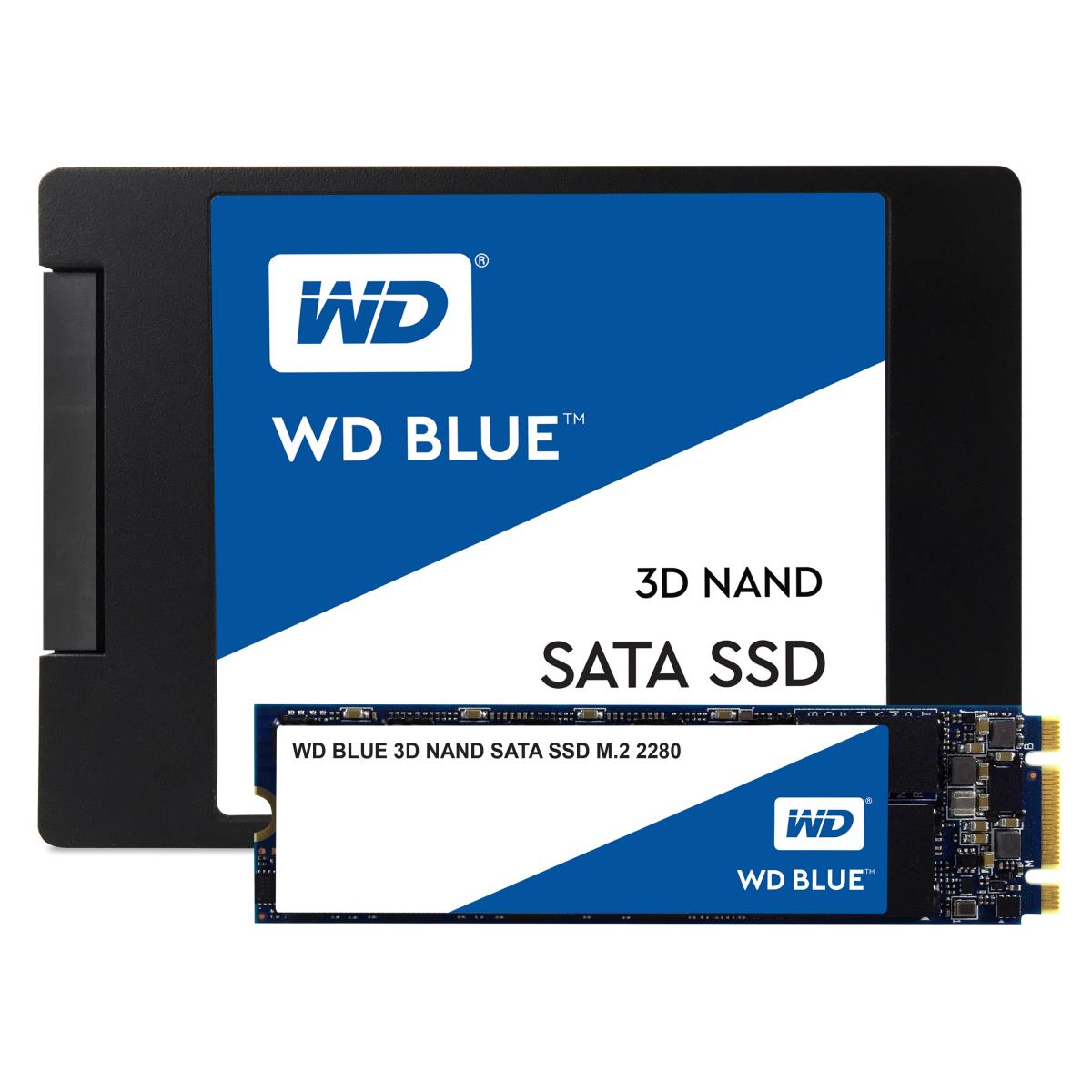

SSD - WD Blue - 1TB - SATA 6Gb/s - M.2 2280
ITCurry #: 60505251 | Article #: WDS100T2B0B-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
A NEW DIMENSION OF STORAGE
Ready for your high performance computing needs, a WD Blue™ 3D NAND SATA SSD offers high capacity, enhanced reliability, and blazing speed.
High capacity with enhanced reliability
A WD Blue 3D NAND SATA SSD uses 3D NAND technology not only for higher capacities (up to 2TB1) than the previous generation WD Blue SSDs, but also to help reduce cell-to-cell interference for enhanced reliability.
Enhanced power efficiency
Offering improved endurance, a WD Blue 3D NAND SATA SSD features an active power draw up to 25% lower2 than previous generations of WD Blue SSDs. And with less power used, you’re able to work longer before recharging your laptop.
Superior performance for high-end computing
For high-end computing applications like gaming, HD media playback, or creative software, look to WD Blue 3D NAND SATA SSDs. 3D NAND technology helps enable sequential read speeds up to 560MB/s and sequential write speeds up to 530MB/s for fast system boot-ups, quick application responses, and rapid transfer speeds3.
| Features | |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | Serial ATA |
| NVMe | No |
| Memory type | TLC 3D NAND |
| Component for | PC/Laptop |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Data transfer rate | 6 Gbit/s |
| Read speed | 560 MB/s |
| Write speed | 530 MB/s |
| Random read (4KB) | 95000 IOPS |
| Random write (4KB) | 84000 IOPS |
| S.M.A.R.T. support | Yes |
| Mean time between failures (MTBF) | 1750000 h |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| TBW rating | 400 |
| Certification | FCC, UL, TUV, KC, BSMI, VCCI, Morocco |
| Power | |
| Power consumption (read) | 2.55 W |
| Power consumption (write) | 3.75 W |
| Weight & dimensions | |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.38 mm |
| Weight | 7 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -55 - 85 øC |
| Operating vibration | 5 G |
| Non-operating vibration | 4.9 G |
| Operating shock | 1500 G |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
| Warranty | |
| Base Warranty | Non Non |
