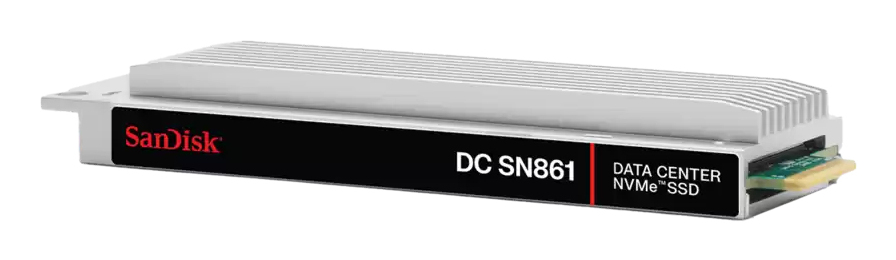

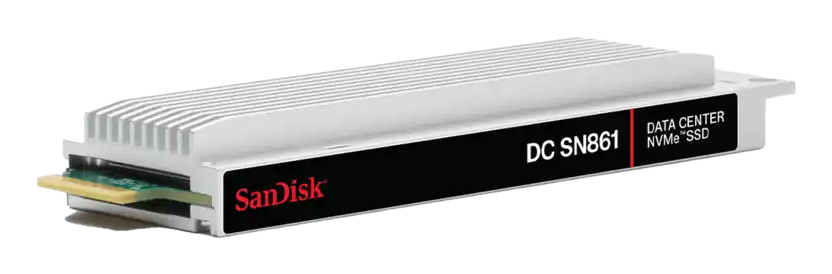

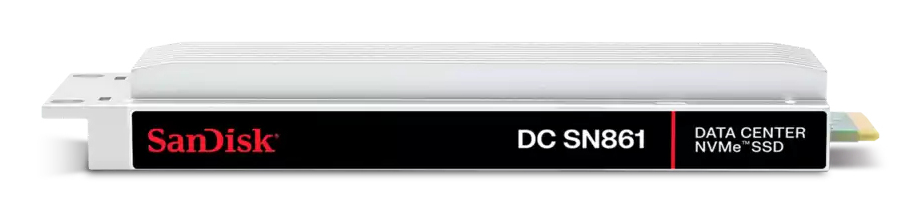

SSD - Ultrastar DC SN861 - 7.68TB - Pci-e Gen 5 x4 - E1.S (15mm) - TCG Opal
ITCurry #: 60508248 | Article #: 0TS2568-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Be ready for the future of mission critical workloads with the SanDisk DC SN861. The latest SanDisk SSD with a cutting-edge PCIe® Gen5 enterprise-class speeds, the DC SN861 offers exceptional performance and multiple capacities up to 7.68TB1 options. With high random read speeds and low power consumption, the DC SN861 is optimized for compute-intensive AI and machine learning applications, ensuring superior read/write performance, extremely low latency, and maximize IOPs/Watt. The DC SN861 also provides a rich feature set including NVMe™ 2.02 and OCP 2.0 support, 1 DWPD2, and a 5-year limited warranty3, making it the ideal solution for hyperscale, cloud, and enterprise data centers.
Ready for the Demands of AI Workloads
Designed to handle compute-intensive AI and machine learning applications which require high bandwidths and low latencies.
Superior Performance and Capacity
Experience future-ready PCIe® Gen5 read/write speeds with capacities up to 7.68TB1.
Designed for Power Efficiency
Architected to provide heightened performance per watt, optimizing power efficiency and reducing operational costs.
Outstanding Mixed Workload Performance
High-speed random reads provide enhanced solutions at low cost for your enterprise.
Optimized for Quality of Service (QoS)
Reduce latency during mission-critical workloads, delivering consistent Quality of Service (QoS) for your applications, even under heavy workloads.
Rich Enterprise Features
Benefit from enterprise-class features such as Power Loss Protection, End-to-End Data Path Protection, and TCG security and encryption, helping ensure data integrity and security
Future-Ready Data Infrastructure
Designed to support NVMe™ 2.02, NVMe™ MI 1.2c, and OCP 2.0 supportive, for enhanced scalability and efficiency.
| Features | |
| NVMe version | 2.0 |
| Security algorithms | TCG Opal 2.0 |
| SSD capacity | 7.68 TB |
| SSD form factor | E1.S |
| Interface | PCI Express 5.0 |
| NVMe | Yes |
| Memory type | TLC 3D NAND |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Read speed | 13.7 MB/s |
| Write speed | 7 MB/s |
| Random read (4KB) | 2850 IOPS |
| Random write (4KB) | 235 IOPS |
| Read latency | 70 æs |
| Write latency | 10 æs |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2500000 h |
| Drive writes per day (DWPD) | 1 |
| Power | |
| Operating voltage | 12 V |
| Power consumption (idle) | 5 W |
| Weight & dimensions | |
| Width | 33.8 mm |
| Depth | 118.8 mm |
| Height | 15 mm |
| Weight | 95 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Warranty | |
| Base Warranty | Non Non |
