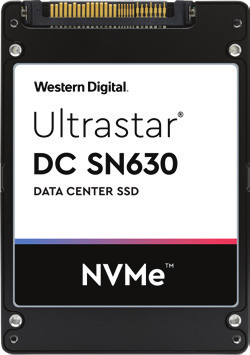

SSD - Ultrastar DC SN630 - 3840GB - Pci-e Gen 3.1 x4 - U.2 2.5in - 0.8 DW/D
ITCurry #: 60505458 | Article #: 0TS1619-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Accelerate Access to Critical Data for Data-Intensive Workloads and Applications
Ultrastar NVMe series SSDs perform at the speed of today’s business needs. Enabling faster intelligence and access to critical data, these SSDs meet the growing digital demands of your business applications. Our top-end Ultrastar DC SN200 drive delivers extreme performance and ultra-low latency to the top tier of enterprise storage. It takes hyper-converged infrastructure (HCI) system throughput to new levels and helps scale on-line transaction processing (OLTP). Our Essential NVMe drives, Ultrastar DC SN620 and DC SN630, offer low latency and higher bandwidth for a seamless transition away from SATA SSDs in mixed-use and read-intensive applications. This combination of high throughput and predictable low latency delivers high performance for deeper insights and faster results for today’s data intensive applications.
| Features | |
| NVMe version | 1.3 |
| Security algorithms | 256-bit AES |
| SSD capacity | 3.84 TB |
| SSD form factor | 2.5" |
| Interface | U.2 |
| NVMe | Yes |
| Memory type | 3D TLC |
| Component for | PC |
| Hardware encryption | Yes |
| Read speed | 2580 MB/s |
| Write speed | 1230 MB/s |
| Random read (4KB) | 329020 IOPS |
| Random write (4KB) | 55820 IOPS |
| Read latency | 230 æs |
| PCI Express interface data lanes | x4 |
| Mean time between failures (MTBF) | 2000000 h |
| Power | |
| Operating voltage | 12 V |
| Power consumption (average) | 10.75 W |
| Power consumption (idle) | 5.6 W |
| Weight & dimensions | |
| Width | 69.8 mm |
| Depth | 100.5 mm |
| Height | 7 mm |
| Weight | 95 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
| Warranty | |
| Base Warranty | Non Non |
