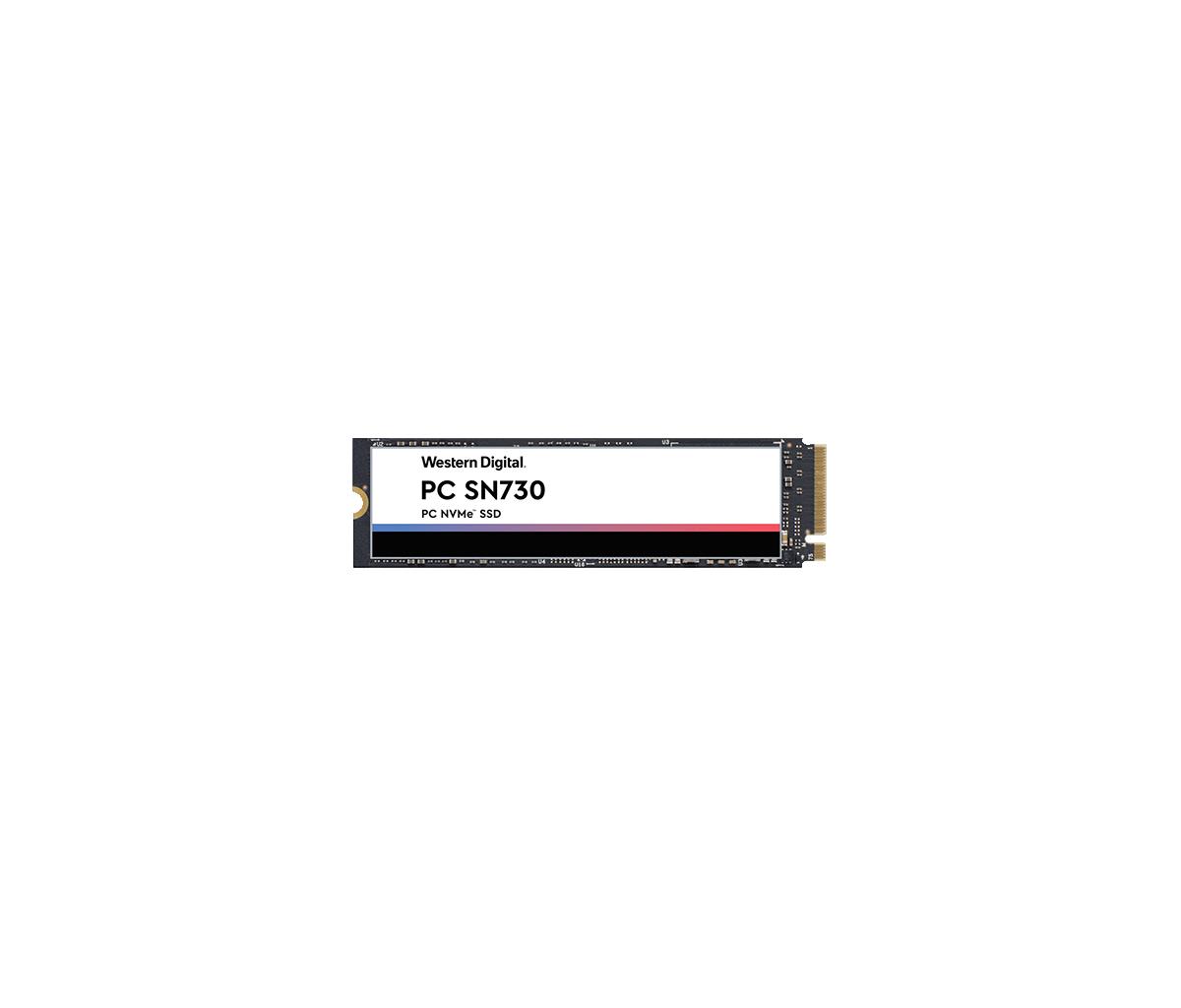

SSD SN730 1TB Pci-e M.2 2280
ITCurry #: 60506101 | Article #: SDBPNTY-1T00-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Introducing a New Layer of Performance
With future-ready, scalable NVMe™ architecture, the Western Digital PC SN730 NVMe™ SSD is breaking through performance limits of client computing, enabling partners to support higher storage applications in today’s mobile and ultra-thin computing markets.
With Sequential Read speeds up to 3,400 MB/s (1TB and 512GB models), the Western Digital PC SN730 NVMe™ SSD is a fully integrated solution that includes an in-house controller, firmware, and extensive testing providing extended supply longevity in a robust and reliable design.
High Speed
Sequential Read/Write speeds up to 3,400/3,100 MB/s (1TB model)
Low Power
Hardware accelerated architecture enables very low latency and low power
Increased Performance
Scalable NVMe™ architecture enables an efficient qualification process and maintains significantly higher performance over SATA
| Features | |
| NVMe version | 1.3 |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| Component for | Laptop |
| Read speed | 3400 MB/s |
| Write speed | 3100 MB/s |
| Random read (4KB) | 550000 IOPS |
| Random write (4KB) | 550000 IOPS |
| Mean time between failures (MTBF) | 1750000 h |
| TBW rating | 400 |
| Power | |
| Operating voltage | 3.3 V |
| Current | 2.3 A |
| Power consumption (average) | 100 W |
| Power consumption (sleep) | 3.5 W |
| Weight & dimensions | |
| Width | 22 mm |
| Depth | 2.38 mm |
| Height | 80 mm |
| Weight | 7.3 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -55 - 85 øC |
| Operating vibration | 5 G |
| Non-operating vibration | 4.9 G |
| Operating shock | 1500 G |
| Warranty | |
| Base Warranty | Non Non |
