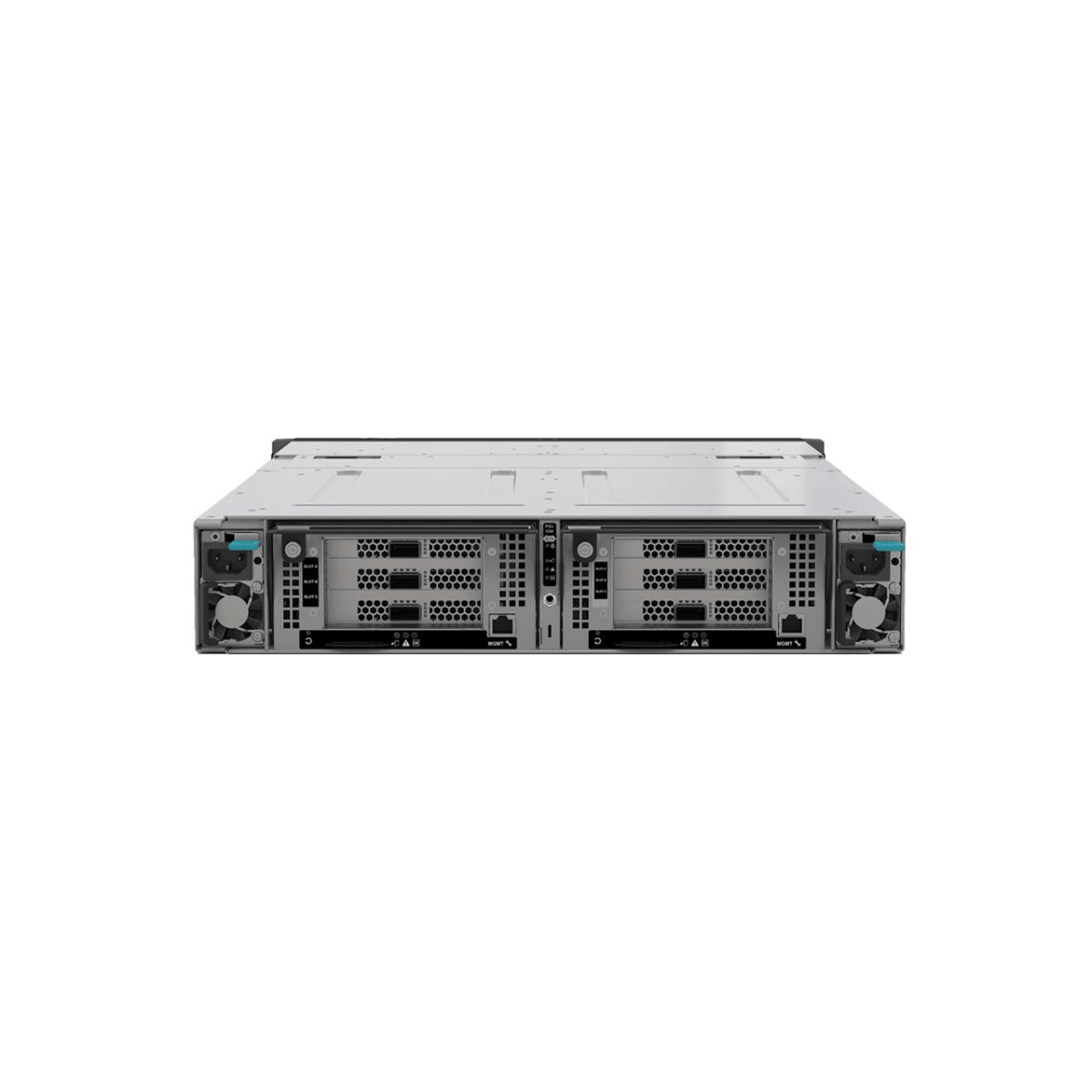

OpenFlex Data24-12 SN840 6x100GbE nTAA Pci-e RI-1DW/D SE 92.16TB
ITCurry #: 60507182 | Article #: 1ES2026
Related products
Product Information
Western Digital’s OpenFlex Data24 NVMe-oF Storage Platform extends the high performance of NVMe flash to shared storage. It provides low-latency sharing of NVMe SSDs over a high-performance Ethernet fabric to deliver similar performance to locally attached NVMe SSDs. Industry-leading connectivity, using Western Digital RapidFlex network adapters, allows up to six hosts to be attached without a switch.
The platform can also be specified with just two RapidFlex adapters for simpler environments and as a direct replacement for SAS external storage.
The OpenFlex Data24 NVMe-oF Storage Platform can also be used as a disaggregated storage resource in an open composable infrastructure environment. OpenFlex Data24 is built to deliver high availability and enterprise-class reliability.
| Storage | |
| Number of storage drives supported | 24 |
| Total installed storage capacity | 92.2 TB |
| NVMe | Y |
| Hot-swap | Y |
| Maximum storage capacity | 368 TB |
| Ports & interfaces | |
| USB connectivity | N |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Interface | NVMe-oF |
| Design | |
| Product type | SSD enclosure |
| Product colour | Black |
| LED indicators | Y |
| Rack mounting | Y |
| Rack capacity | 2U |
| Power | |
| Power source type | AC |
| AC adapter input voltage | 200 - 240 V |
| Weight & dimensions | |
| Width | 448 mm |
| Depth | 711.2 mm |
| Height | 87.5 mm |
| Weight | 31.8 kg |
| Warranty | |
| Base Warranty | Non Non |
