V3 Stereo Amplifier 2x25w (rms @ 8 Ohms) Low Impedance Digital Amplifier
ITCurry #: Q3822773 | Article #: TC3-AMP-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
By using latest low-impedance digital amplifier chip technology the new Techconnect Amp module outputs a massive 2 x 25 watts RMS (at 8 ohms) but fits into the space of a Techconnect module.

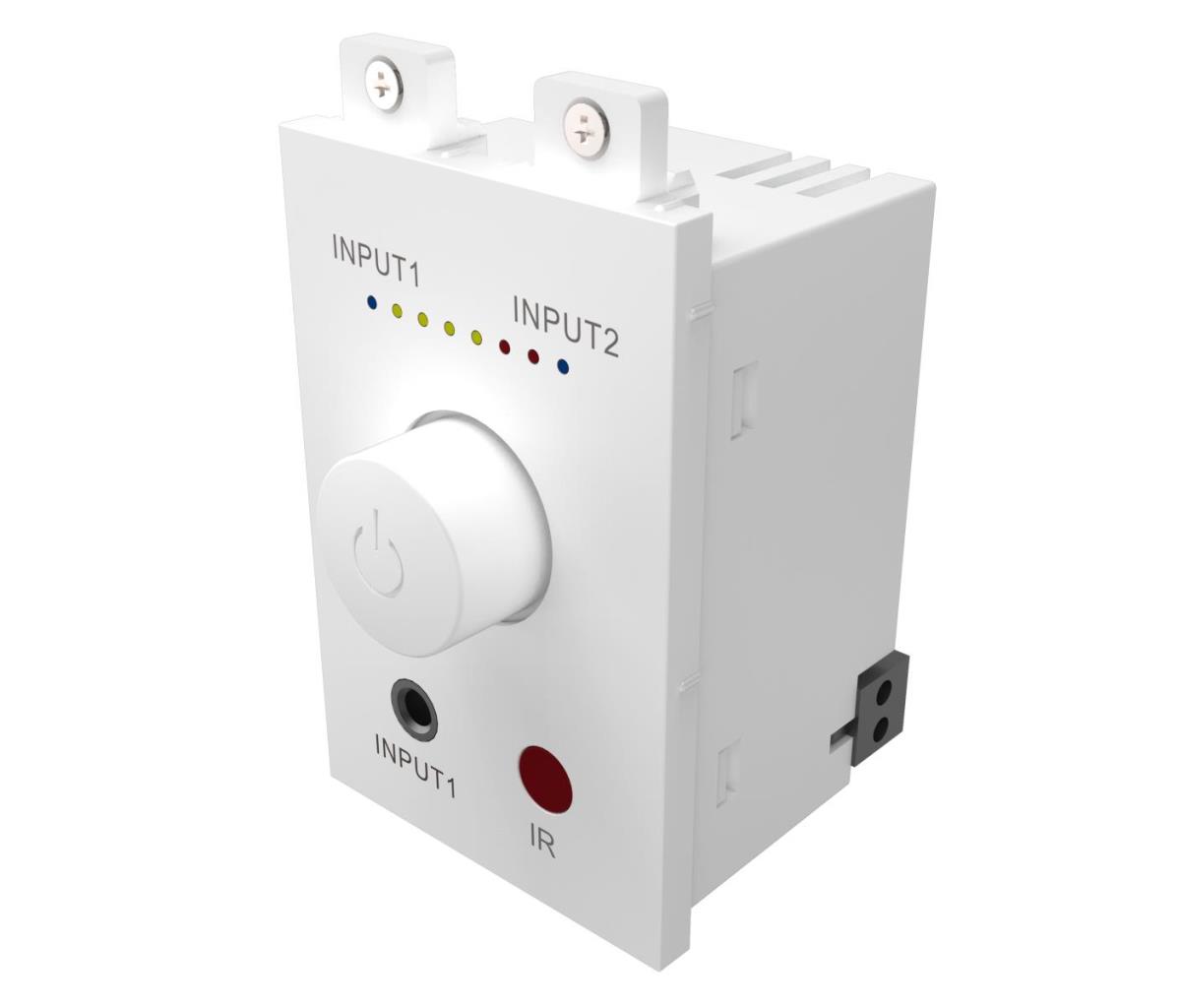

Front Panel Input

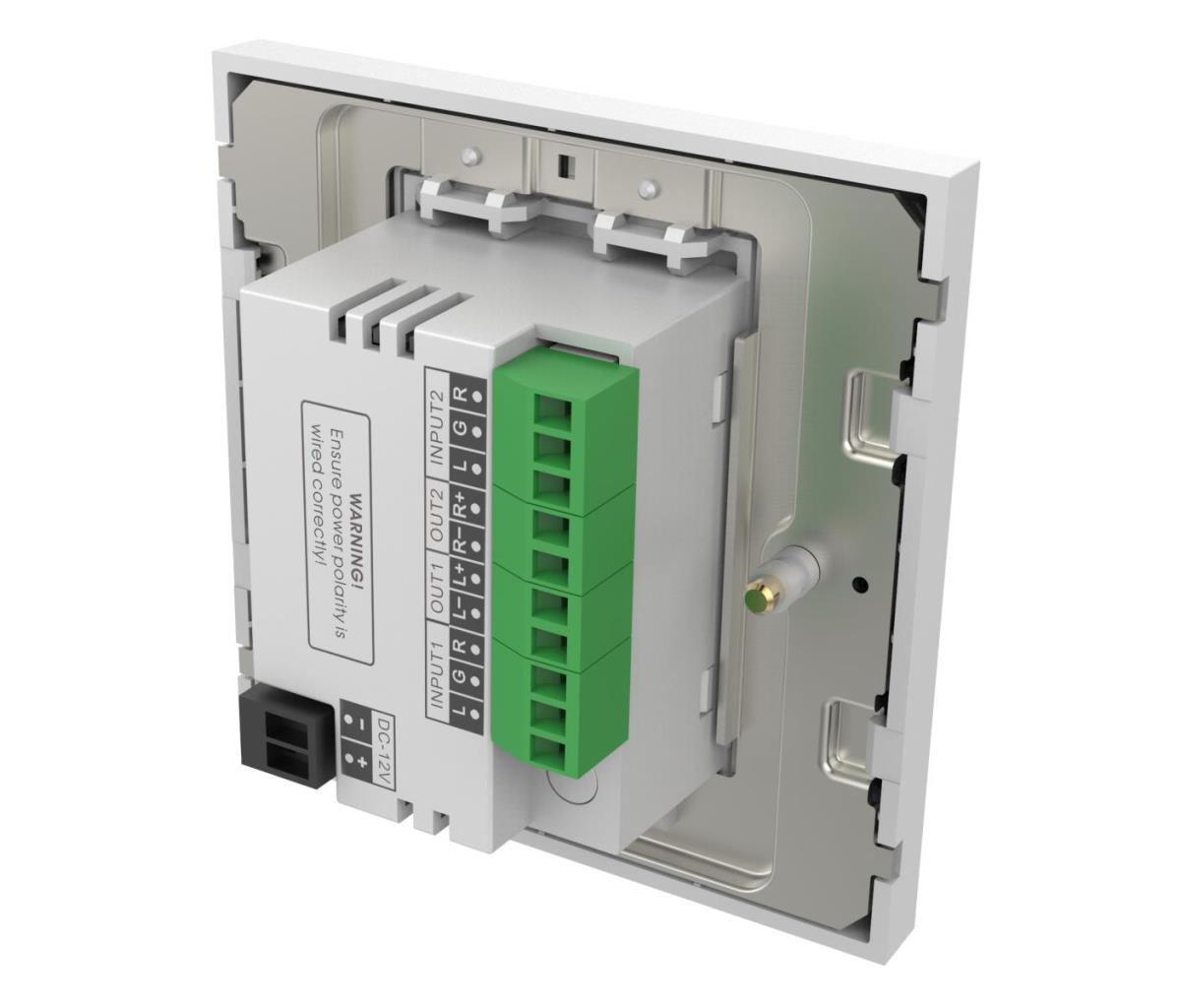

Two Inputs are wired into the rear with removable phoenix connectors, but Input 1 is also duplicated on the front panel with a minijack socket for convenience. This “half-normalled” input disconnects the rear terminal while in use.
D-Class Amplifier
Digital amplifiers use no power unless they are amplifying program, so even on at full volume; unless it is receiving input it is effectively off. Digital amplifiers also have the advantage of running cold so a bulky heatsink is not necessary
Power Four Speakers
Don’t let size deceive you: the Techconnect Amp can drive into a 4 ohm load allowing you to power up to four 8 ohm speakers (or two 4 ohm speakers).
Preset Memory
By default when power is activated the Techconnect Amp turns on and resumes the most recent settings. For hospitality applications it can be set to return to a preset input and level whenever it is powered on – for example in hotel guest rooms.
Tactile Dial
A simple clear control interface makes the product easy to use long press on the dial to power on and off. Short press to change input.

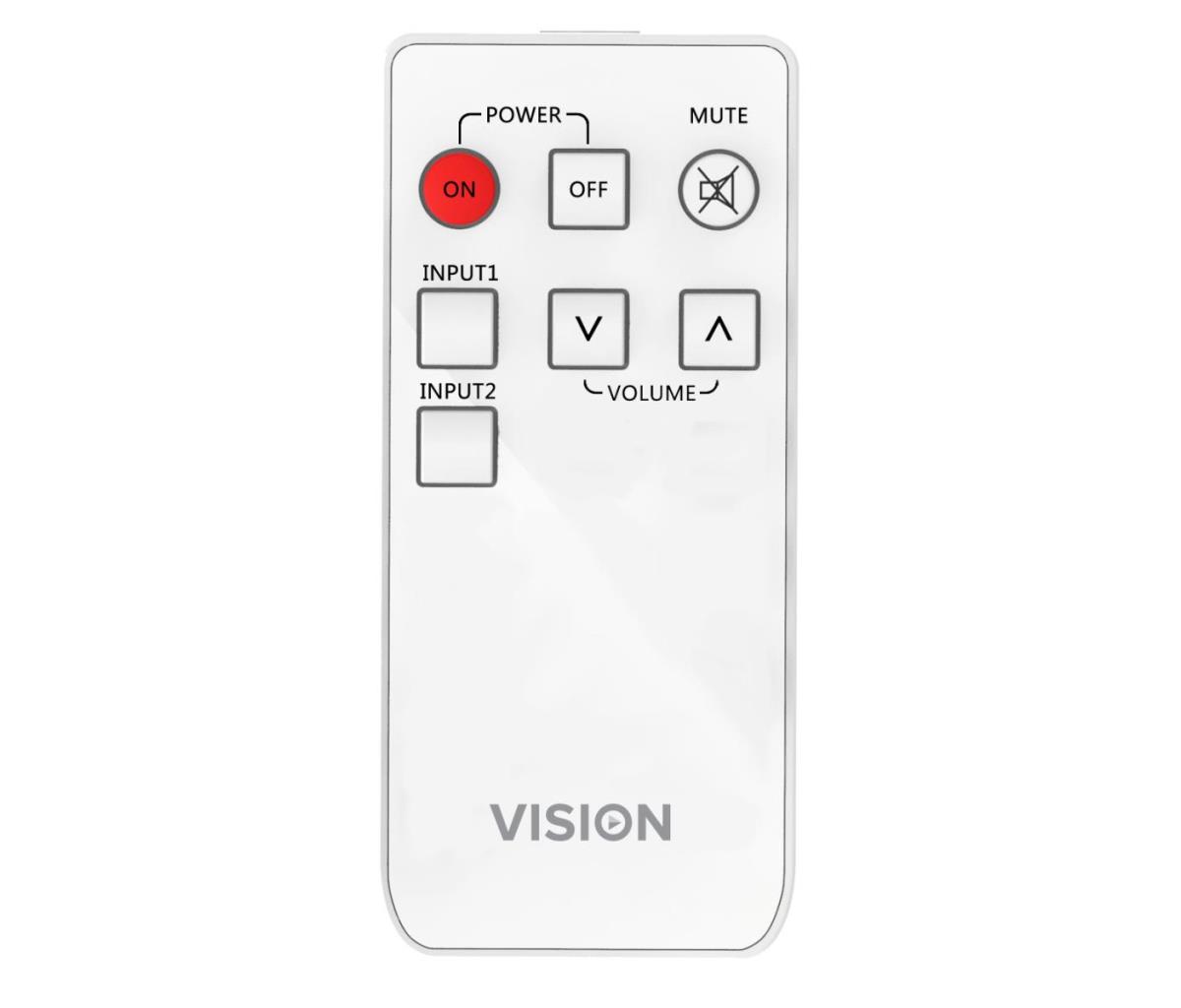

Remote Control
A remote control is included and IR receivers are positioned on the front and rear for integration with a control system such as the Techconnect Control. Note: there is no tone control with this amplifier. Vision’s spare remote controls have tone buttons but they do not work with this product.
Easy to Install and Uninstall

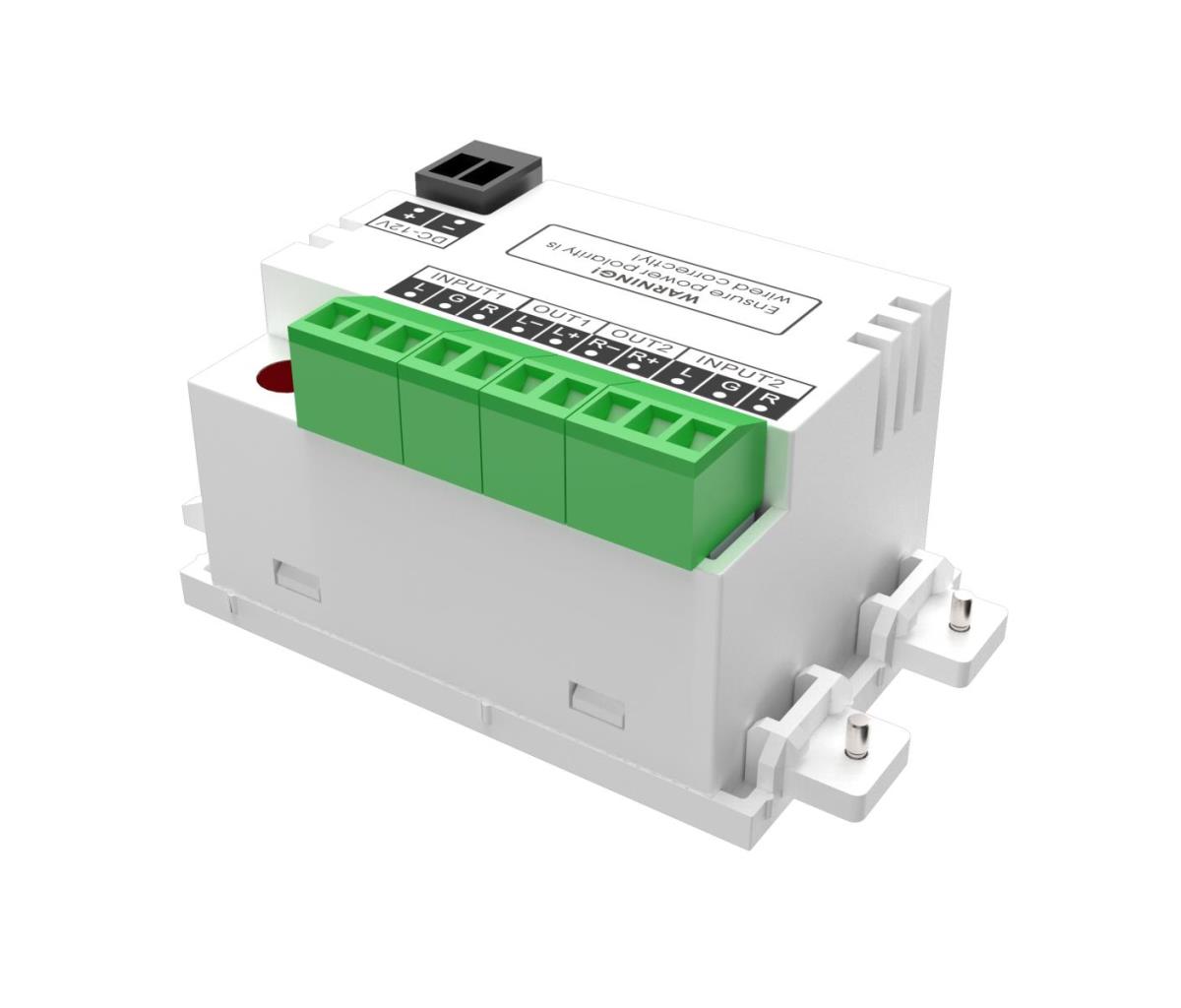

A robust module that is easy to install or remove and disconnect from the front. Removable phoenix connectors allow non-technical end users to uninstall it very easily if required.
Cables Included
Speaker cable is included plus short input cables are included for connection to the rear of adjacent input modules on the Techconnect.
Secure
Ideal when you don’t have furniture to sit an amplifier on, and because it is mounted to the wall it is much less obvious as a target for theft.
Close at Hand
Can be positioned anywhere in the room making it perfect for training rooms, boardrooms, and classrooms.

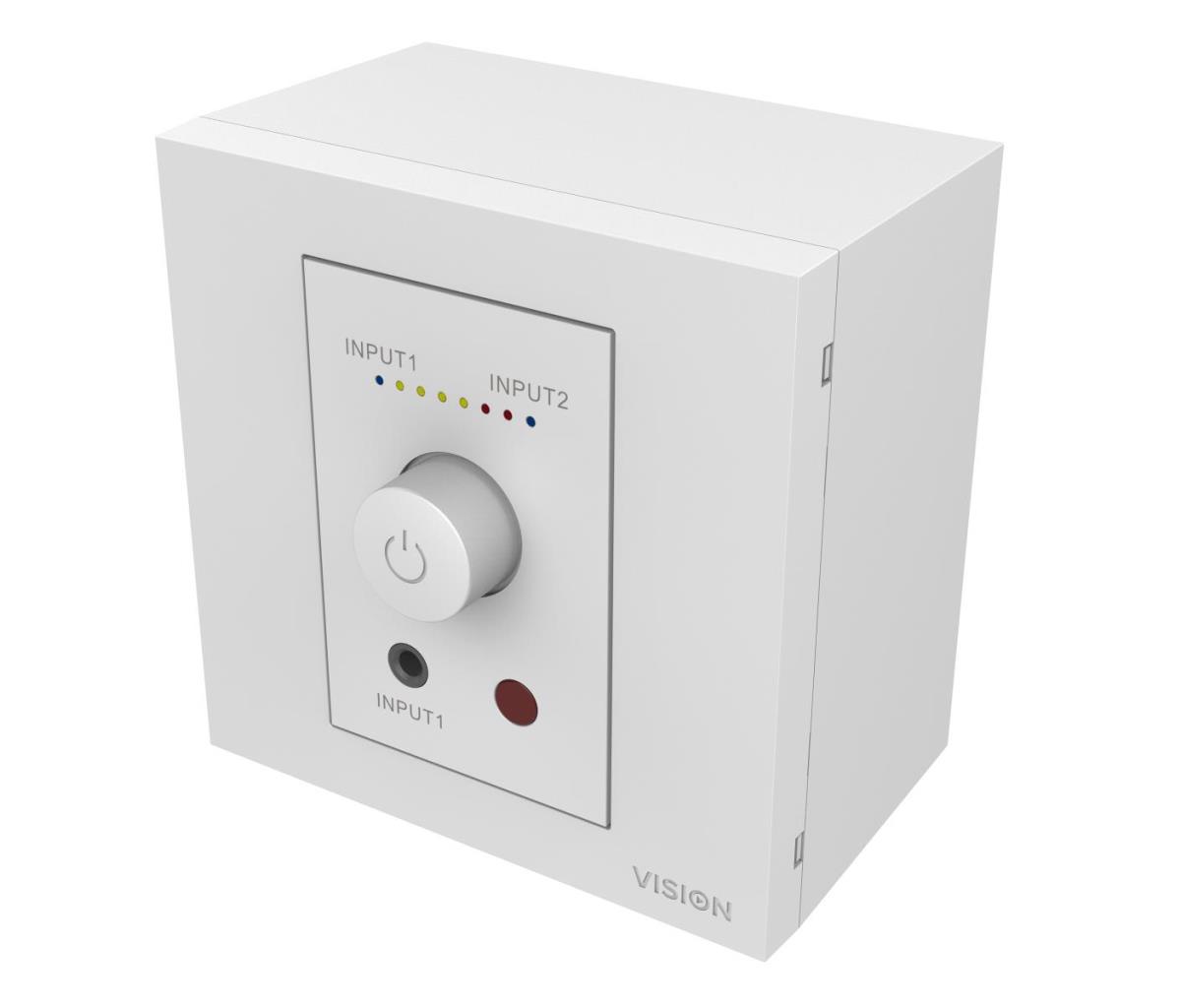

Integrated Techconnect Family

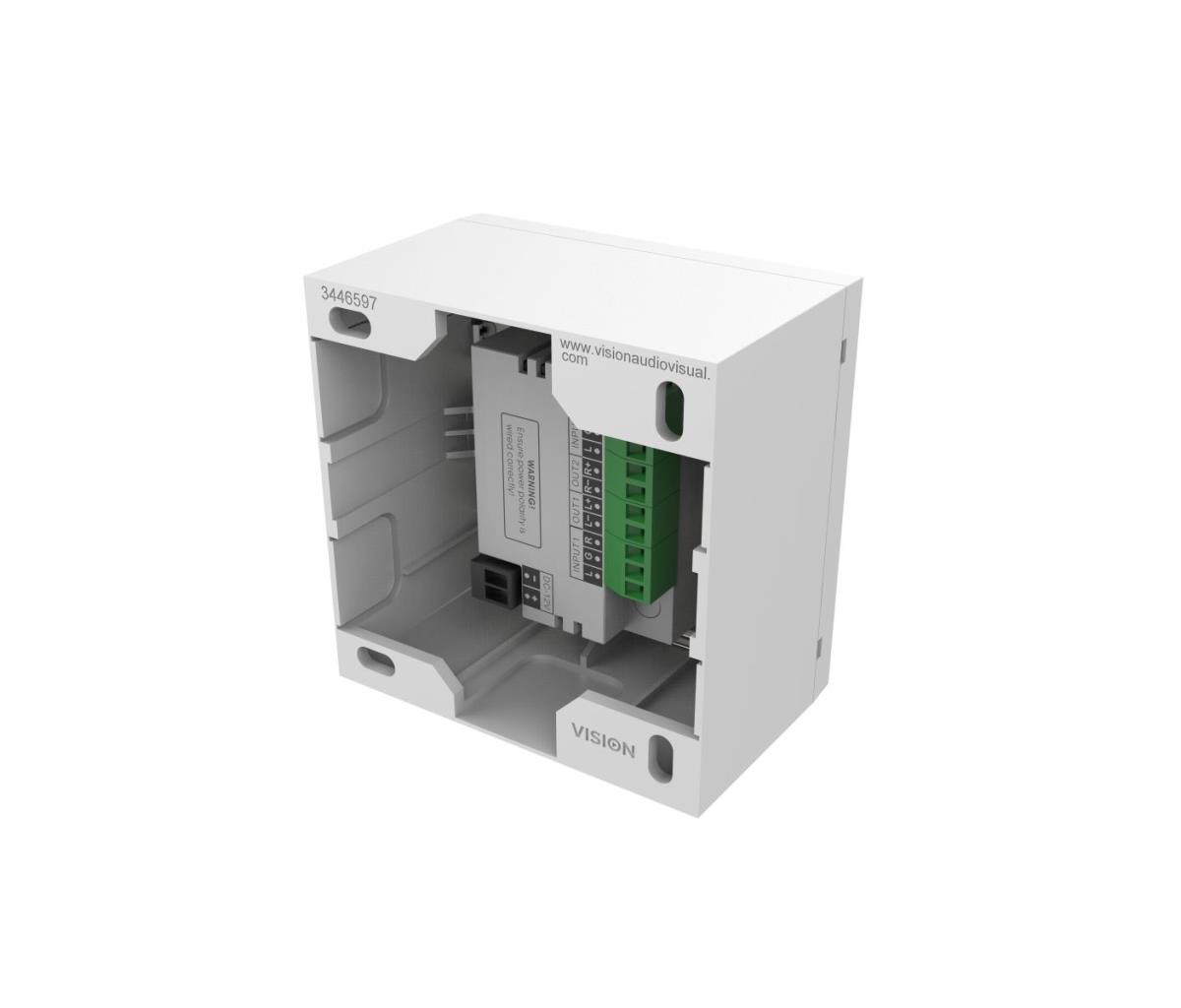

Included is a single-gang backbox and surround, or alternatively you can mount it in a double-gang surround with other Techconnect modules.
| Audio | |
| Audio output channels | 2.0 channels |
| Peak power per channel | 25 W |
| Amplifier class | D |
| Total Harmonic Distortion (THD) | 1% |
| Signal-to-Noise Ratio (SNR) | 98 dB |
| RMS power output per channel (8 Ohm) | 25 W |
| Input sensitivity | 500 mV |
| Input impedance | 50000 O |
| RMS rated power | 50 W |
| Frequency range | 80 - 22000 Hz |
| Ports & interfaces | |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 2 |
| DC-in jack | Yes |
| Technical details | |
| Purpose | Home |
| Connectivity technology | Wired |
| Product colour | White |
| Compliance certificates | RoHS |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 12 V |
| Power consumption (typical) | 50 W |
| Weight & dimensions | |
| Width | 42 mm |
| Depth | 46 mm |
| Height | 64 mm |
| Weight | 63 g |
| Certificates | |
| Certification | RoHS, WEEE, CE/EMC, RCM, FCC |
| Warranty | |
| Base Warranty | Non Non |
| Packaging content | |
| Remote control included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85184000 |
| Packaging data | |
| Package dimensions (WxDxH) | 240 x 205 x 63 mm |
| Package weight | 1.1 kg |
