Projector LSC601WU-ST Short Throw Laser WUXGA 6000 Lm 3000000:1
ITCurry #: 11914526 | Article #: LSC601WU-ST-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

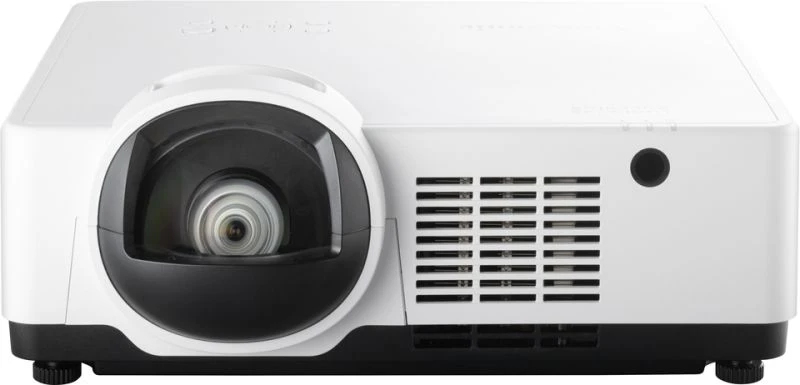

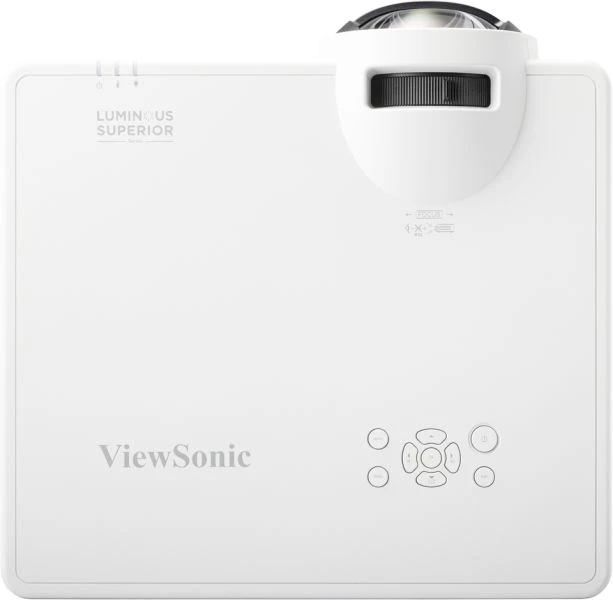

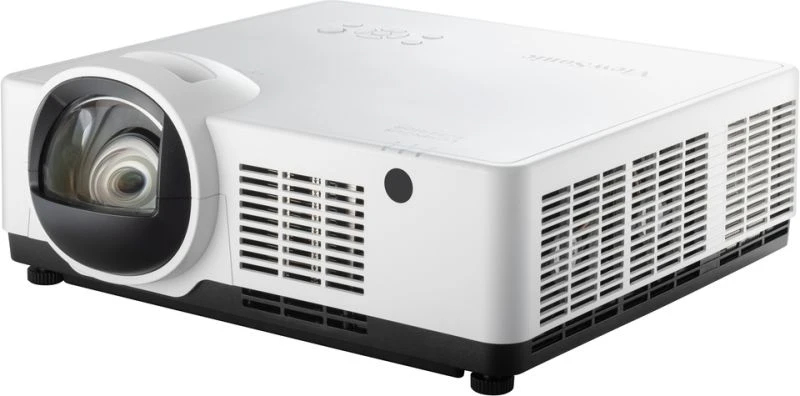

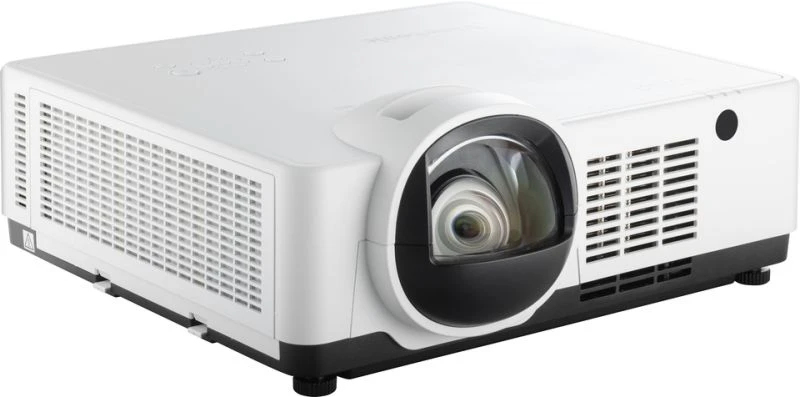

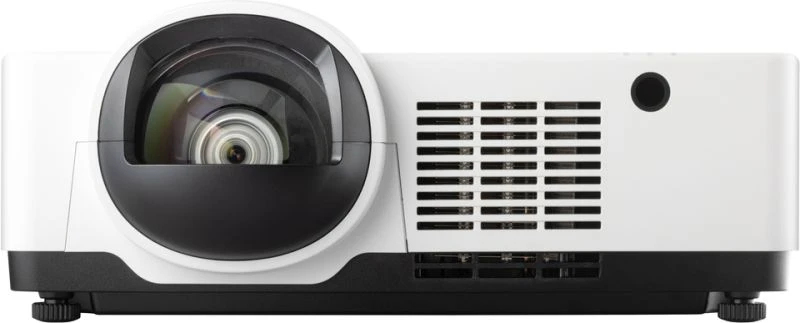

The LSC601WU-ST is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 6,000 ANSI Lumens of brightness for up to 30,000 hours and can display an ultra-large screen up to 180” in WUXGA resolution. With a 0.44 short throw ratio, it can project a 100” image from just 0.95 m away, enabling a seamless viewing experience without shadows. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V keystone correction, 360° projection, and warping capabilities, the LSC601WU-ST offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.

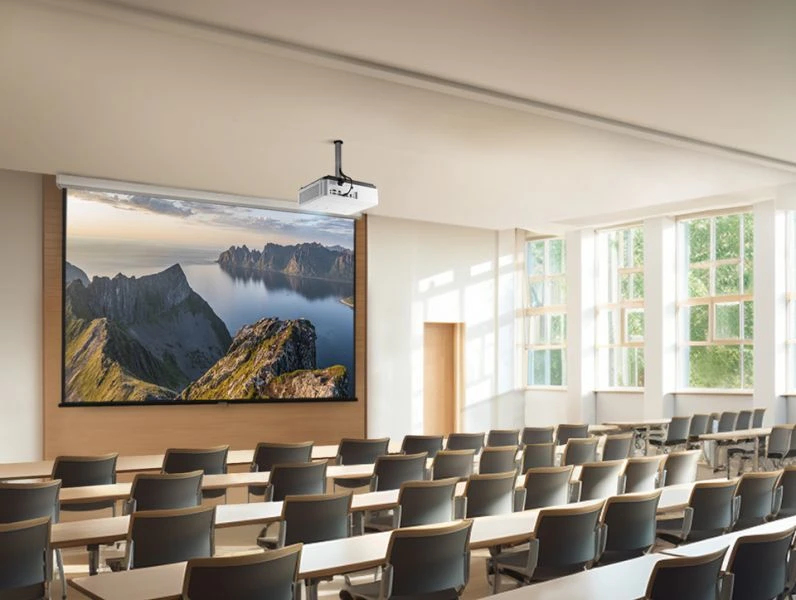

Bright Images for Large Venues

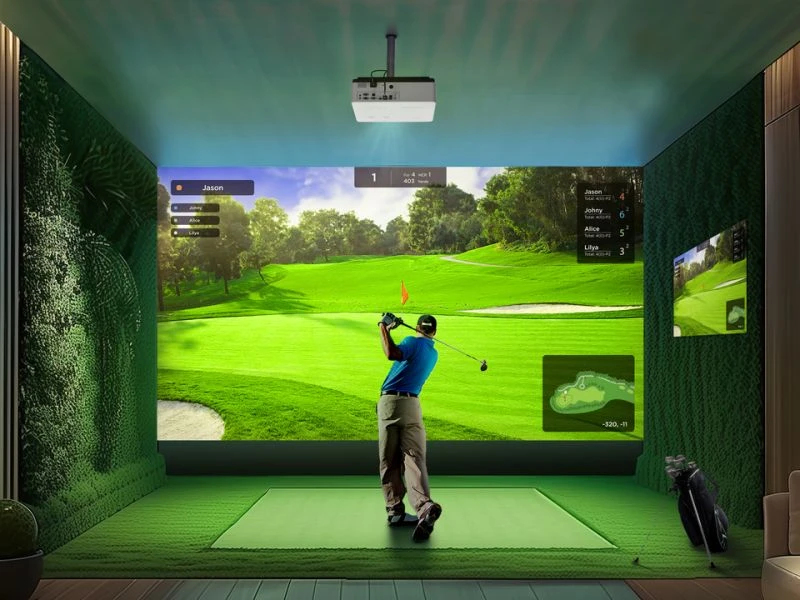

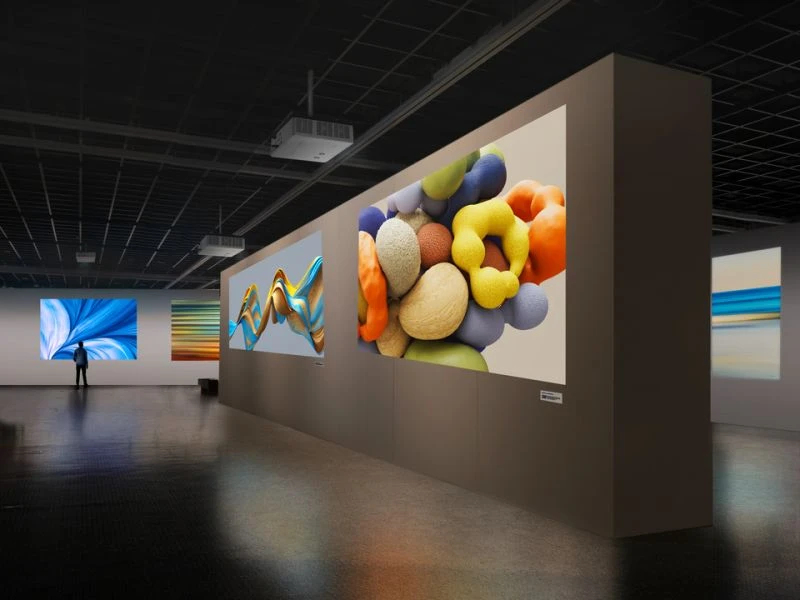

Delivering 6,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 180”, offering a lower cost-per-inch compared to other types of commercial displays.?
No Shadows, No Blinding Lights
The 0.44 short throw offers a 100” visuals from only 0.95m away. When projecting onto a wall, there are no distracting shadows, providing seamless viewing experience.

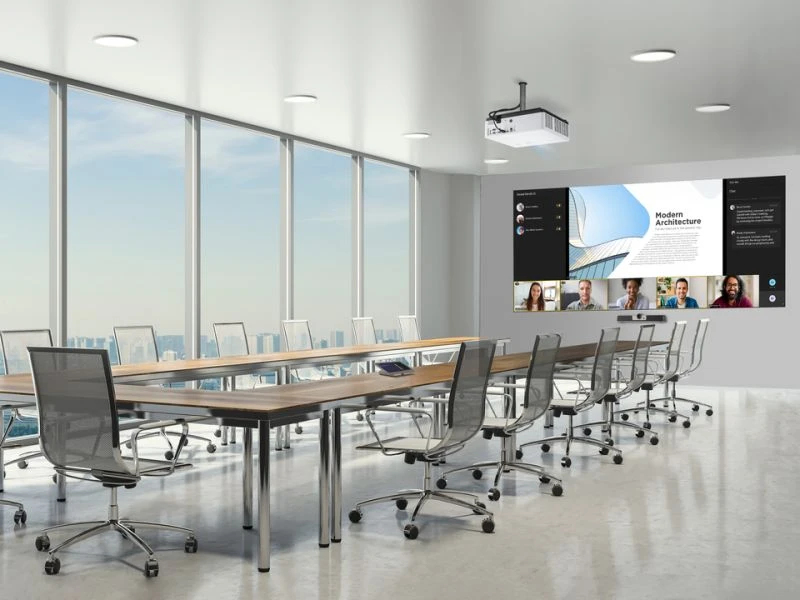

Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency?.
| Projector | |
| Supported aspect ratios | 16:10, 16:9 |
| Screen size compatibility | 1397 - 4572 mm (55 - 180") |
| Projection distance | 0.521 - 1.71 m |
| Projector brightness | 6000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Number of colours | 1.07 billion colours |
| Vertical scan range | 23 - 85 Hz |
| Keystone correction, horizontal | -15 - 15ø |
| Keystone correction, vertical | -15 - 15ø |
| Light source | |
| Light source type | Lamp |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lens system | |
| Fixed focal length | 6.39 mm |
| F-number (relative aperture) | 1.6 |
| Zoom capability | Yes |
| Throw ratio | 0.44 |
| Offset | 98% |
| Video | |
| Full HD | Yes |

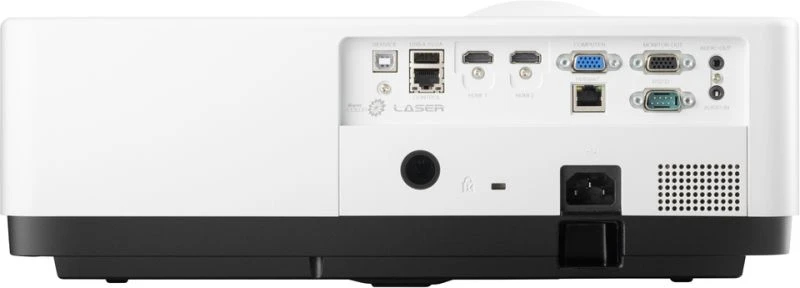

| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| AC (power) in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Features | |
| Noise level (economic mode) | 25 dB |
| Noise level | 35 dB |
| Air filter | Yes |
| Design | |
| Market positioning | Education |
| Product type | Standard throw projector |
| Product colour | Black, White |
| LED indicators | Yes |
| Power | |
| Power source | AC |
| Power consumption (typical) | 345 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 405 mm |
| Depth | 404 mm |
| Height | 164 mm |
| Weight | 8 kg |
| Package width | 510 mm |
| Package depth | 498 mm |
| Package height | 260 mm |
| Package weight | 11 kg |
| Packaging content | |

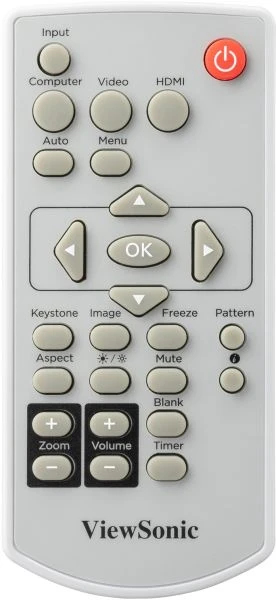

| Remote control included | Yes |
| Manual | Yes |
| Warranty | |
| Base Warranty | Non Non |
