Vertiv Geist Rack PDU Switched (Unit Level) EC 0U input IEC 60309 230V 32A locking outlets (20
ITCurry #: N6415866 | Article #: VP5G30A7-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

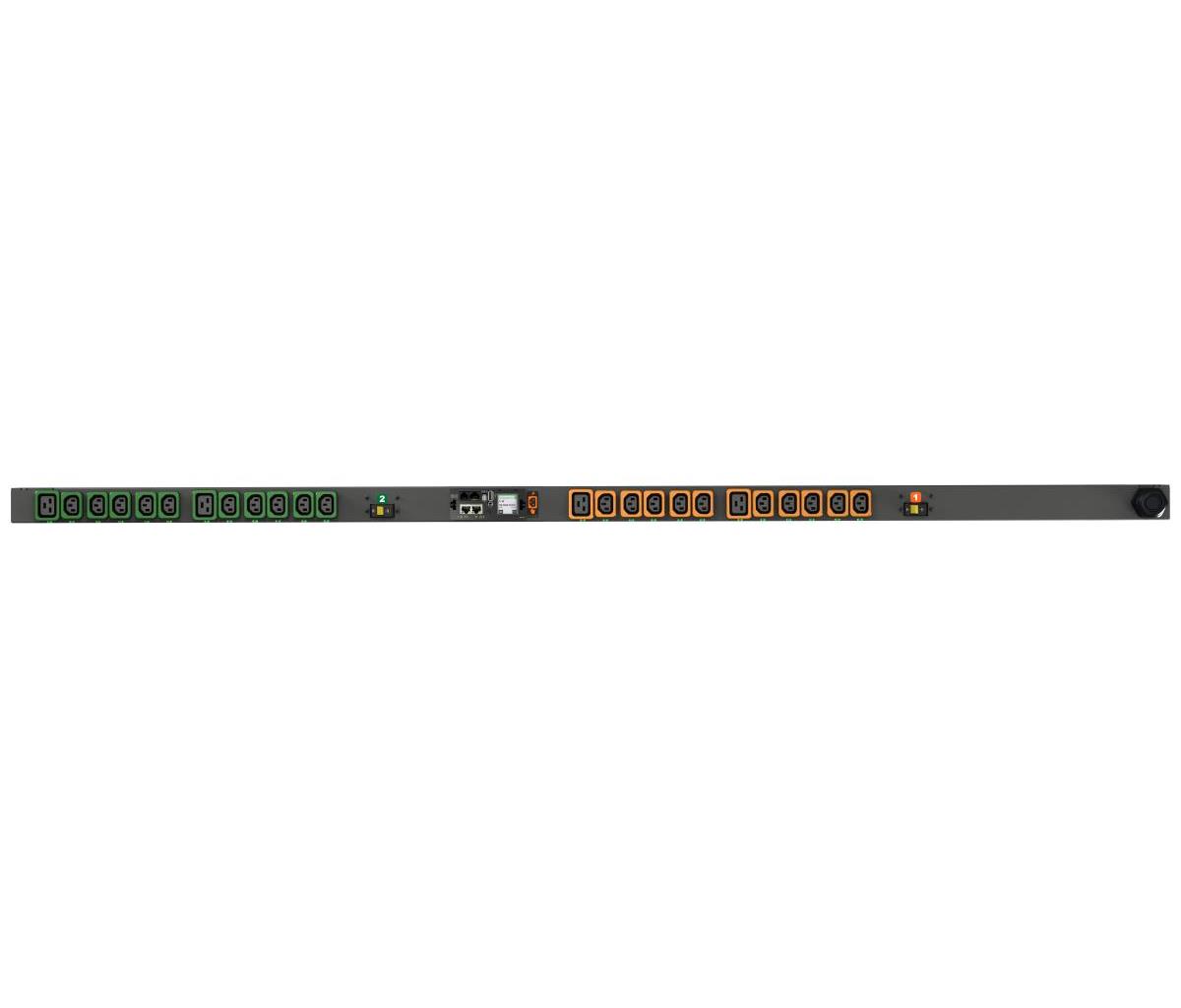

The Vertiv Geist Switched RPDU VP5G30A7 is a 32A, 230V, 0U, vertical rack power distribution unit with input power monitoring and outlet level switching. It has (20) U-Lock C13 and (4) U-Lock C19 outlets and a 2P+E (IP44) plug providing 7.3kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are CE Marked, comply with IEC 60950-1 (CB Certificate Available), RoHS certified, and are individually tested for functionality and reliability.
| Design | |
| PDU types | Monitored |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LCD |
| On/off switch | Yes |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB ports quantity | 1 |
| Features | |
| Reset button | Yes |
| Cable length | 3 m |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
| Power | |
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Load capacity | 230 VA |
| Maximum power | 7300 W |
| Certificates | |
| Certification | CE Mark, UKCA Mark, Complies with IEC 62368-1, RCM Mark (EMC Only) |
| Weight & dimensions | |
| Width | 51 mm |
| Depth | 66 mm |
| Height | 1683 mm |
| Packaging data | |
| Package weight | 9.07 kg |
| Warranty | |
| Base Warranty | Non Non |
