Product Information

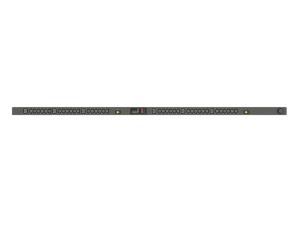

Upgradeable Switched Unit Level Monitored EC rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of input power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.
Design | |
PDU types | Switched |
Type | Three-phase |
Rack capacity | 0U |
Mounting | Vertical |
Product colour | Black |
Display | LED |
Ports & interfaces | |
AC outlets quantity | 36 AC outlet(s) |
Power plug | IEC 60309 |
AC outlet types | C13 coupler, C19 coupler |
Serial ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 2 |
USB ports quantity | 2 |
Features | |
Daisy chain | Yes |
LED indicators | Yes |
Colour-coded outlets | Yes |
Cable length | 3 m |
Management features | |
Monitoring | Current, Power, Voltage |
Outlet control | Turn off, Turn on |
Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
Power | |
Nominal input voltage | 200 - 415 V |
AC input frequency | 50 - 60 Hz |
Maximum current | 32 A |
Output voltage | 230 V |
Power protection features | Over current |
Maximum power | 22000 W |
Weight & dimensions | |
Width | 51 mm |
Depth | 66 mm |
Height | 1829 mm |
Weight | 9.98 kg |
Warranty | |
Base Warranty | Non Non |
Technical details | |
Compliance certificates | RoHS |
