Product Information

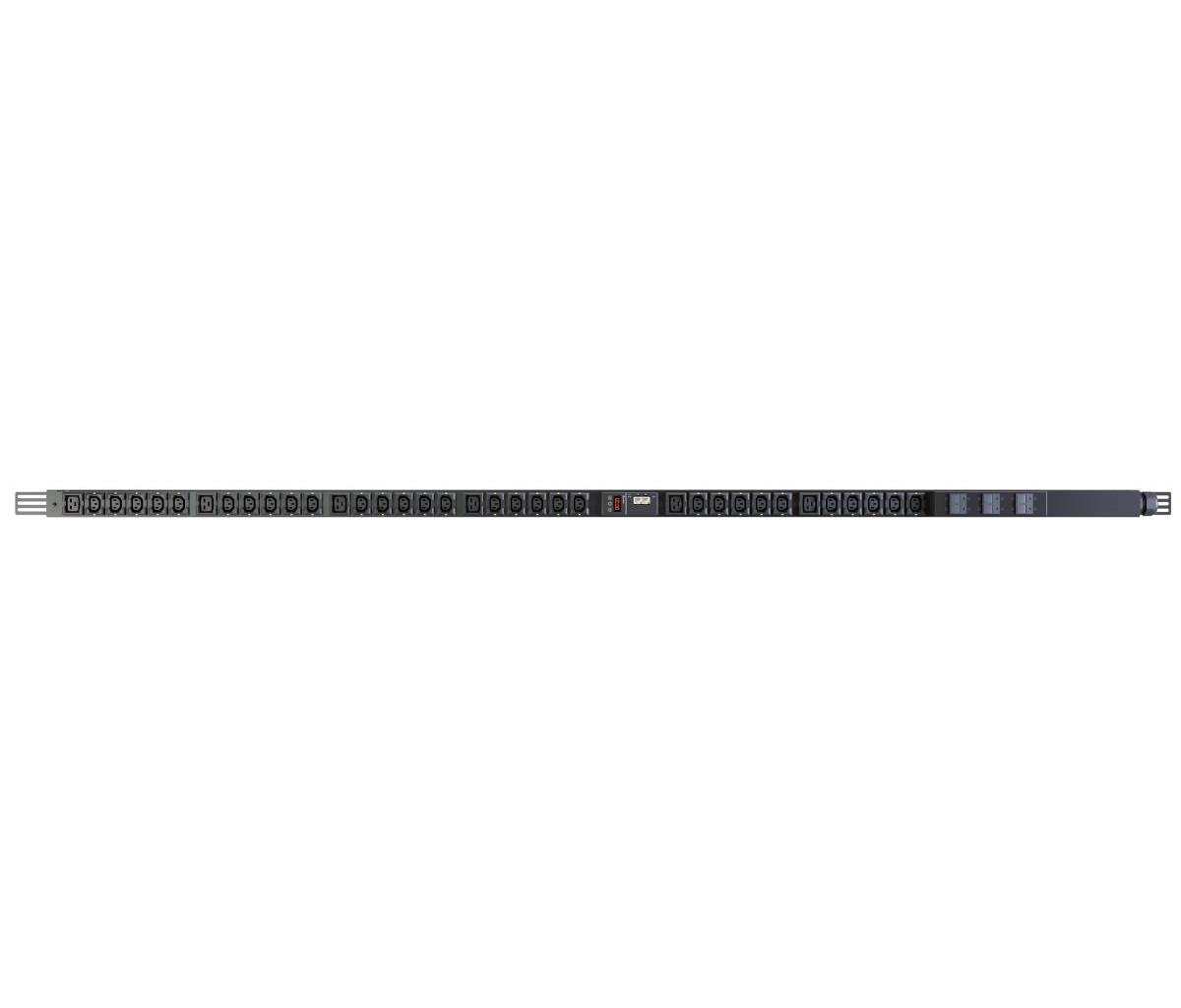

The Vertiv PowerGo EP4G90A1 rPDU is a monitored rack power distribution unit (rPDU) with a high-visibility LED display that delivers a comprehensive view of input-level power usage via remote network access. This three-phase unit supports up to 22kVA load capacity with a 230V/400V WYE and 32A input providing reliable power distribution to critical IT equipment. It includes 30 Manual Lock IEC C13 and 6 Manual Lock IEC C19 outlets, providing 10A and 16A, respectively. It also features Fault-Tolerant Daisy Chaining with RSTP that helps ensure data is reported even when a break in the network chain occurs. This unit supports protocols like IPv4/IPv6, SNMP, and Modbus TCP/IP for versatile connectivity. It has a 0U, vertical configuration, allowing seamless integration into standard racks. It supports a maximum operating temperature of 45°C, ensuring adaptability to demanding environments. It is CE-Marked, FCC-Marked, complies with IEC 62368-1, and is RoHS compliant. Every unit is 100% tested and has a 1-year warranty, offering both efficiency and peace of mind.
| Design | |
| PDU types | Monitored |
| Type | Three-phase |
| Rack capacity | 1U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LED |
| On/off switch | Yes |
| Ports & interfaces | |
| AC outlets quantity | 36 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| Cable length | 3 m |
| Management features | |
| Management protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
| Power | |
| Nominal input voltage | 346 - 415 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 32 A |
| Power protection features | Over current |
| Maximum power | 22000 W |
| Weight & dimensions | |
| Width | 58 mm |
| Depth | 2050 mm |
| Height | 51 mm |
| Weight | 11.5 kg |
| Logistics data | |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
