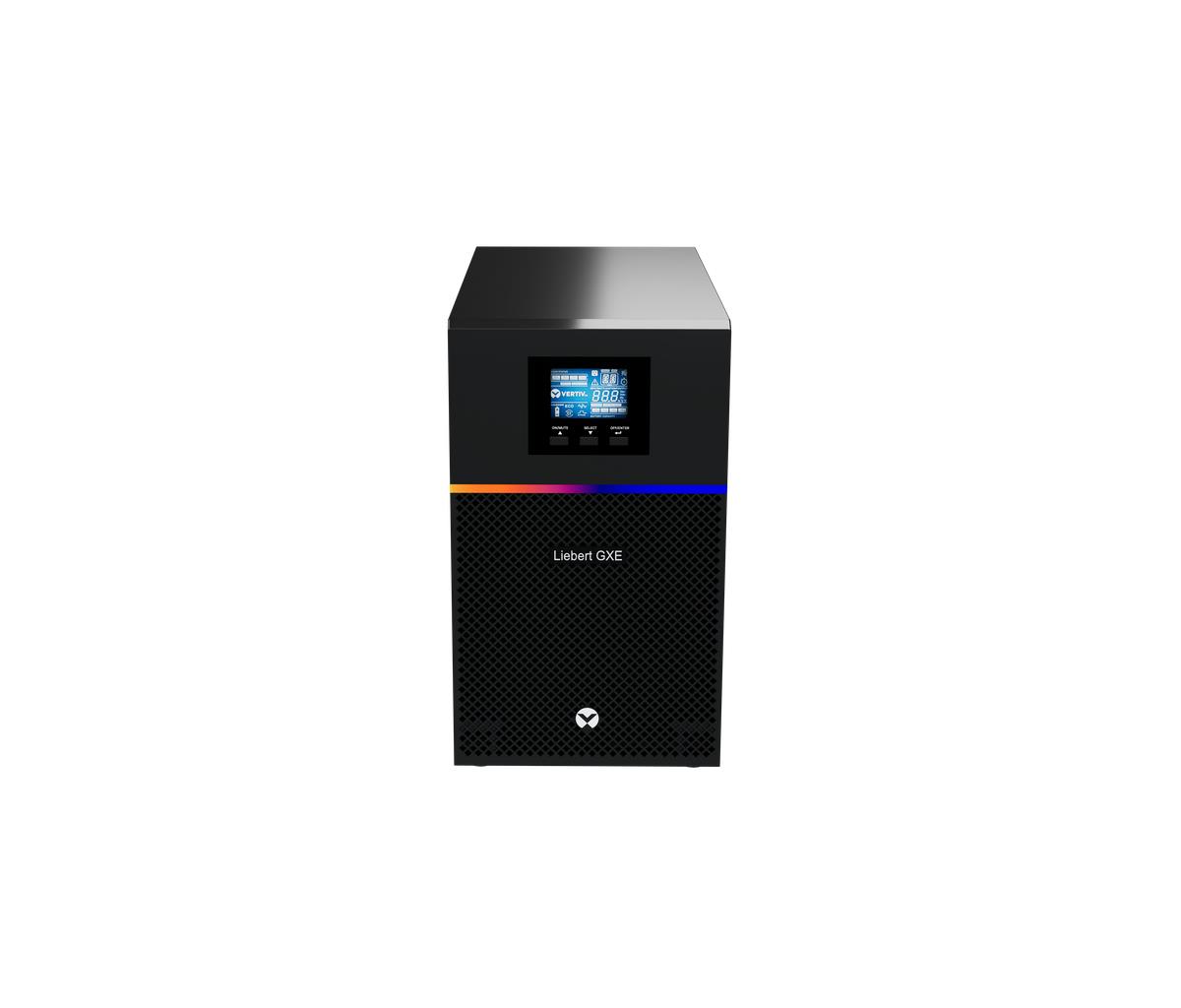

LIEBERT GXE UPS 3KVA 1PH UPS 230V TOWER W/BATTERIES C20 INPUT/C13 X 8 OUTPUT + C
ITCurry #: N6415980 | Article #: GXE3-3000IMT-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Vertiv Liebert GXE UPS is an affordable, efficient UPS with high output power factor (0.9PF), which enables continuous and reliable power to more connected devices. With online double conversion technology, this 3kVA compact tower UPS protects devices against many disturbances. With proven reliability, it is ideal for critical applications in financial, government, and manufacturing industries. It has an intuitive LCD for local monitoring, configuration, and control. The high efficiency in both online and ECO modes of operation (up to 95% in ECO mode) for this already affordable UPS further drives energy and operational costs savings. An optional network management card allows remote management and server shutdown via the optional network card or (free) Vertiv Power Insight software. In addition to reliable power, having multiple monitoring options make this compact UPS ideal for delivering best-in-class power protection to equipment at the edge of networks or in remote sites.
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 290 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 600 J |
| Efficiency (On-line mode) | 91% |
| Efficiency (ECO mode) | 96% |
| EMI/RFI noise filtering | Yes |
| Noise level | 53 dB |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 9 AC outlet(s) |
| USB port | Yes |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 6 |
| Typical backup time at full load | 3.3 min |
| Typical backup time at half load | 9.5 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 4 h |
| Design | |
| Form factor | Tower |
| Product colour | Grey |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 50 øC |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 2000 m |
| Certificates | |
| Compliance certificates | CB, CE, RCM, REACH, RoHS, UKCA, WEEE |
| Packaging content | |
| Cables included | Input power cable, Output power cable, USB cable |
| Quick installation guide | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 425 mm |
| Height | 345 mm |
| Weight | 27.7 kg |
| Packaging data | |
| Package width | 320 mm |
| Package depth | 560 mm |
| Package height | 460 mm |
| Package weight | 29.3 kg |
| Warranty | |
| Base Warranty | Non Non |
