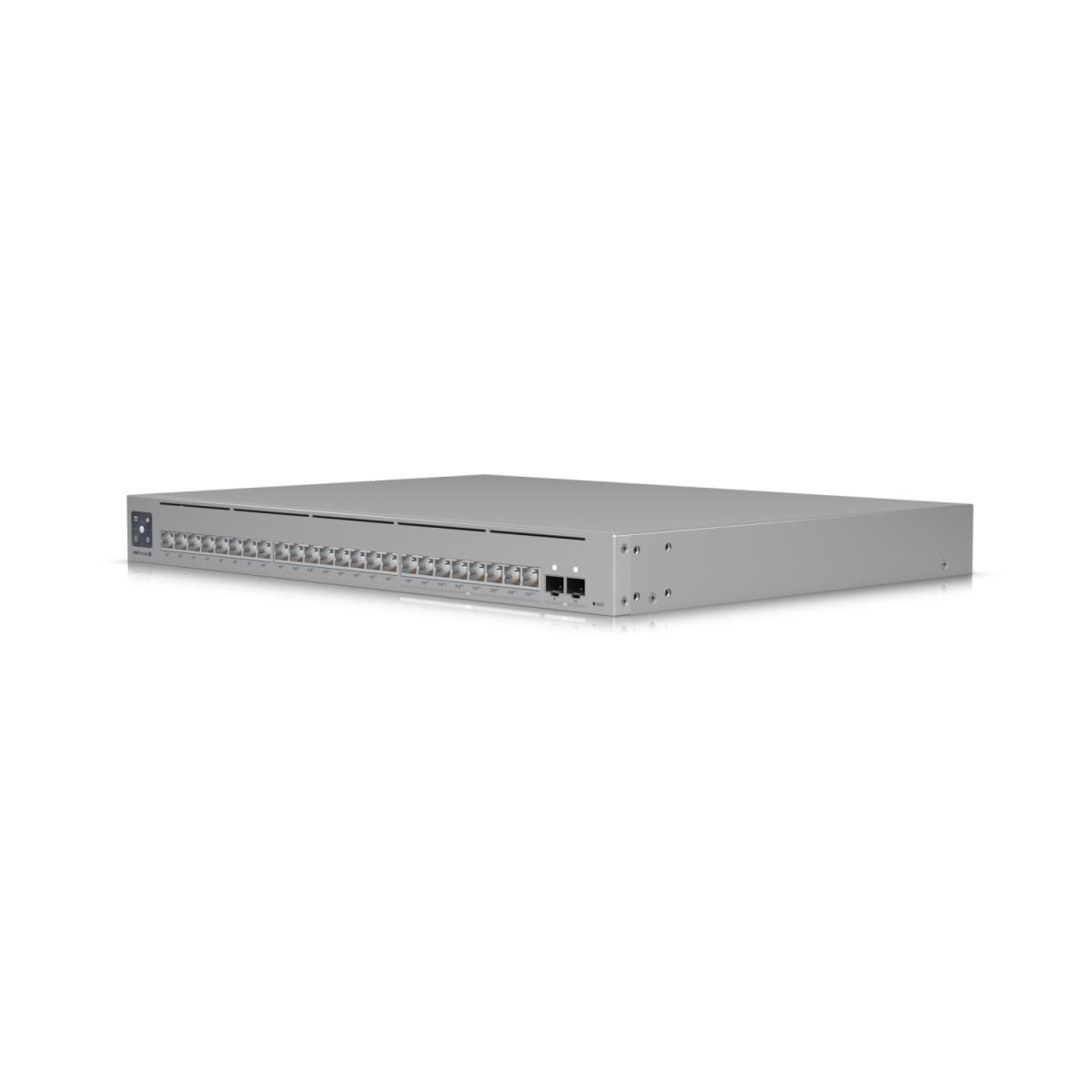

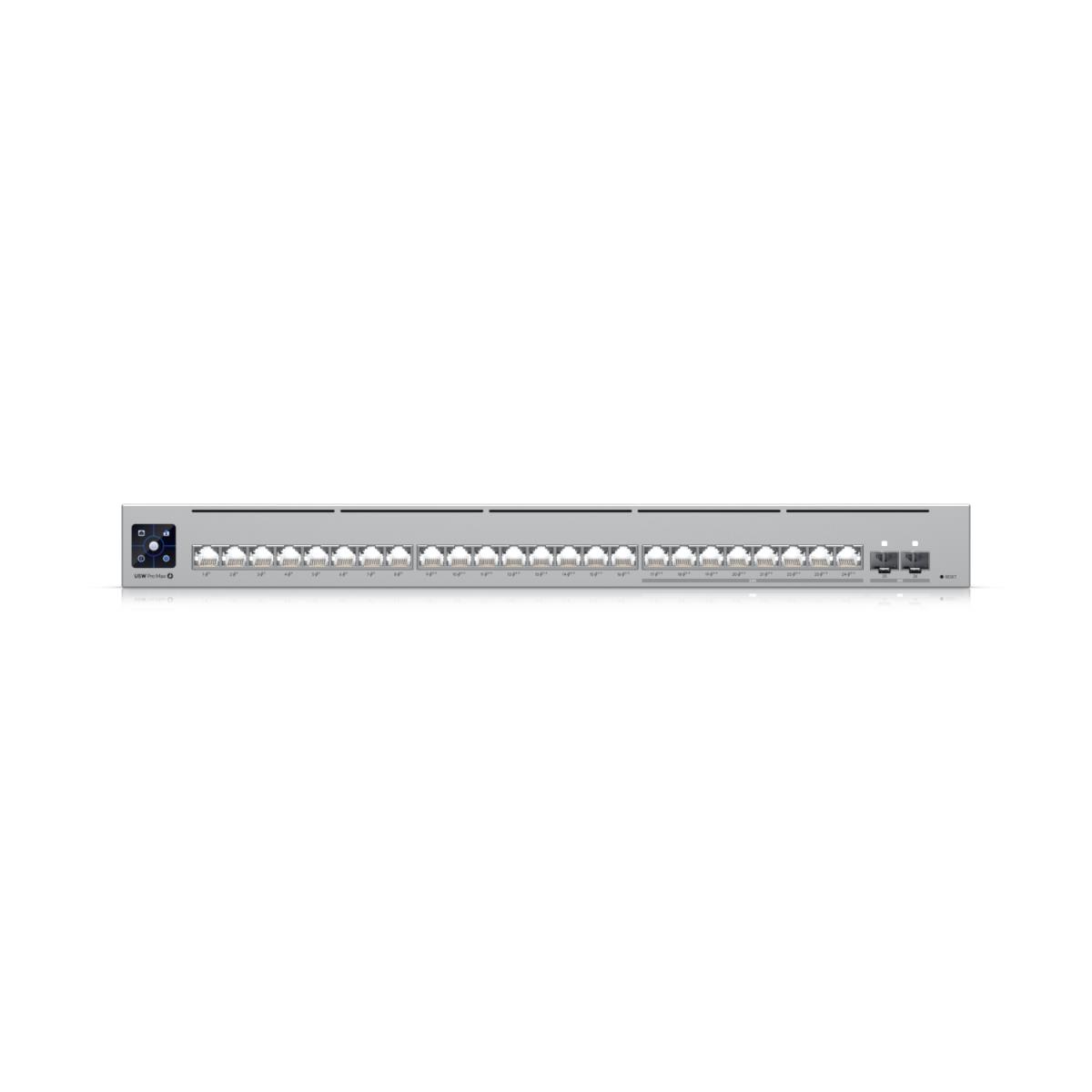

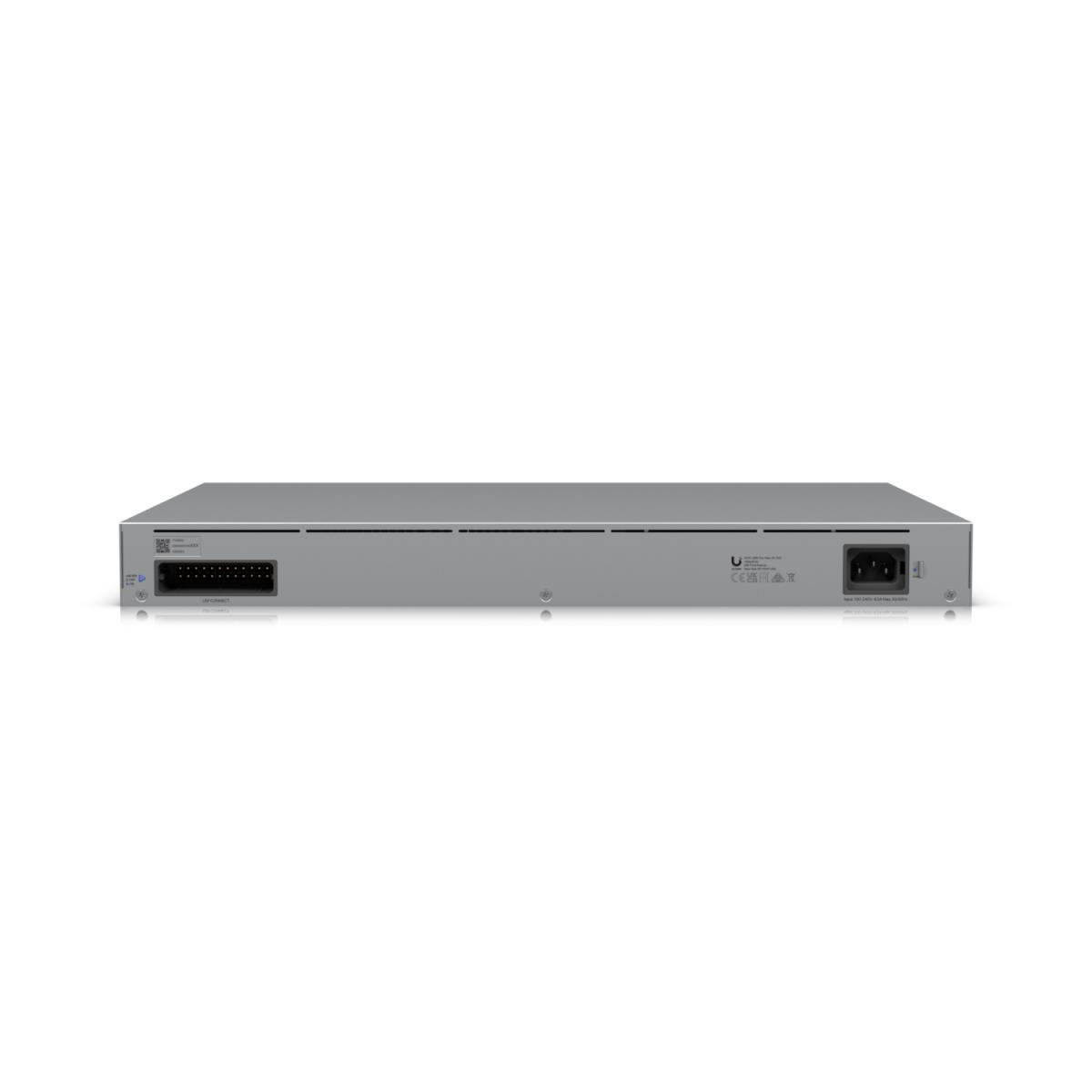

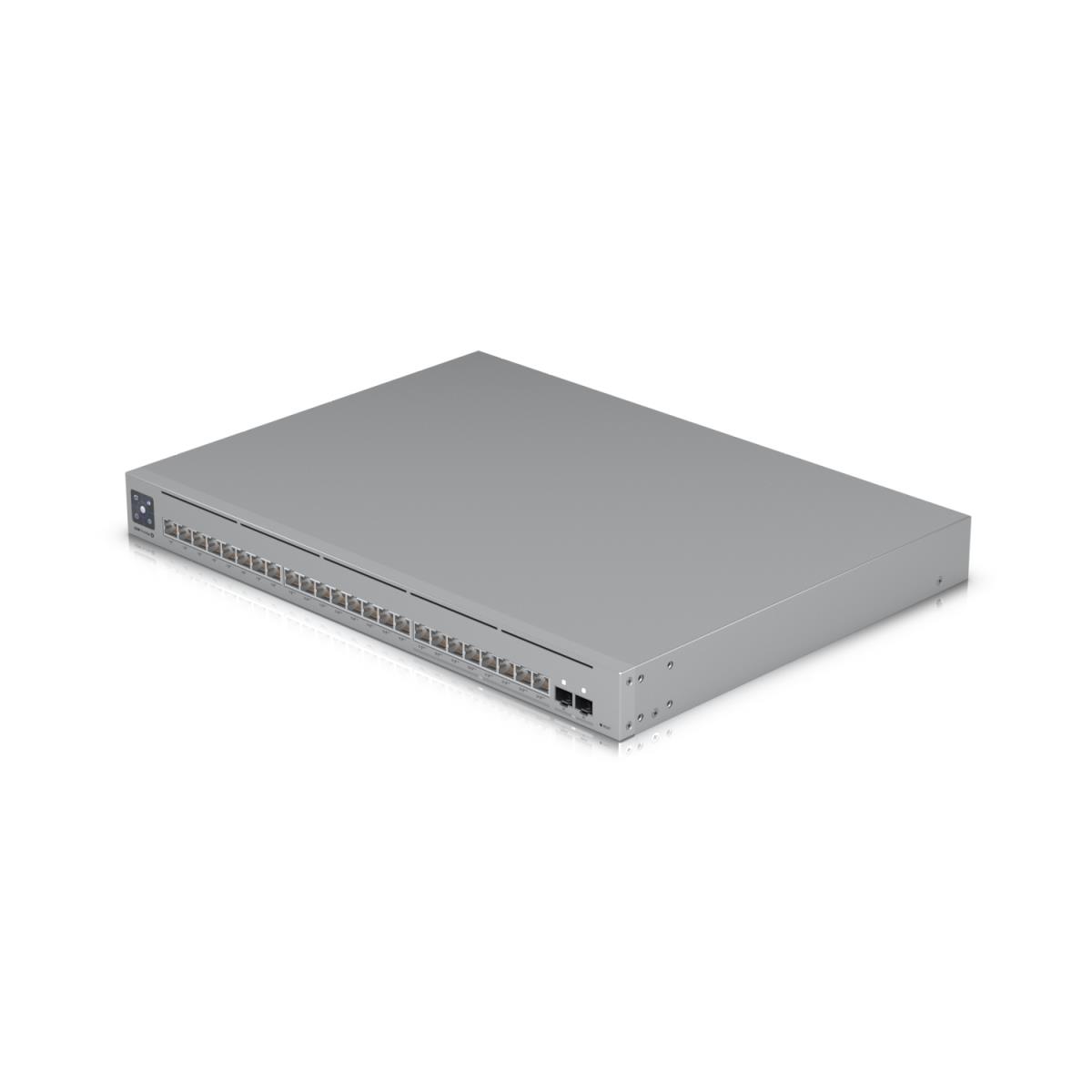

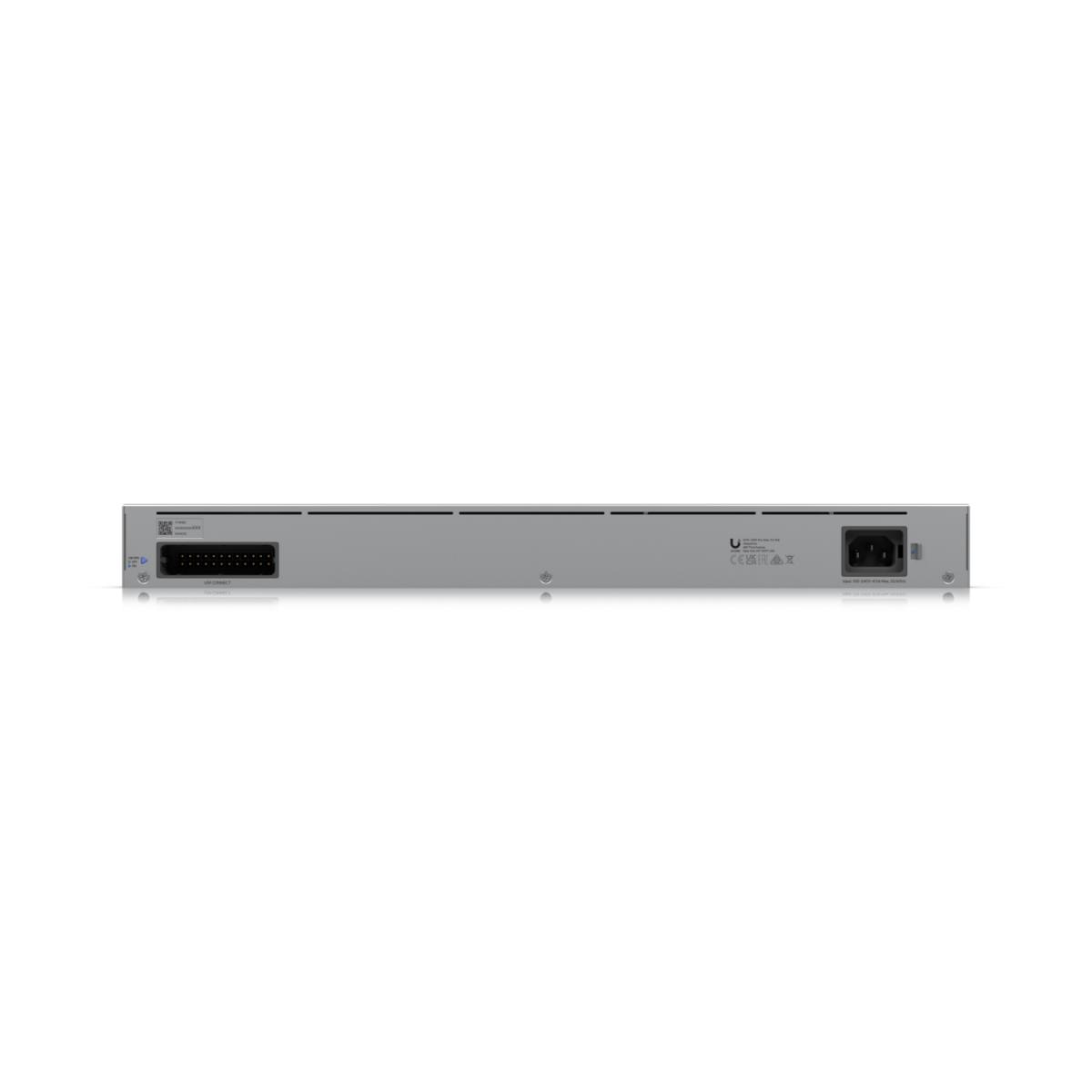

Unifi Switch Usw-pro-max-24 24-port-poe Poe++
ITCurry #: N3302957 | Article #: USW-PRO-MAX-24
slide 2 of 11
Price:
385.40
Ex VAT
Shipping:
FREE Shipping.
Delivery in 3 days
Quantity:
Related products
slide 7 to 11 of 14
Product Information
A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
| Management features | |
| Switch layer | L3 |
| Warranty | |
| Base Warranty | Non Non |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| 2.5G Ethernet (copper) ports quantity | 8 |
| 10G Ethernet (copper) ports quantity | 2 |
| Installed SFP+ modules quantity | 2 |
| Power connector | AC/DC |
| Network | |
| 10G support | Yes |
| VLAN support | Yes |
| Data transmission | |
| Switching capacity | 112 Gbit/s |
| Throughput | 56 Gbit/s |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| Housing material | SGCC |
| Reset button | Yes |
| LED indicators | Link, Network, Speed, Status |
| Display type | LCM |
| Backlight display | Yes |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Power | |
| Power source | AC/DC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 50 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Power over Ethernet (PoE) voltage | 57 V |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 400 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 442.4 mm |
| Depth | 325 mm |
| Height | 43.7 mm |
| Weight | 5.1 kg |
| Sustainability | |
| Sustainability compliance | Yes |
| Packaging data | |

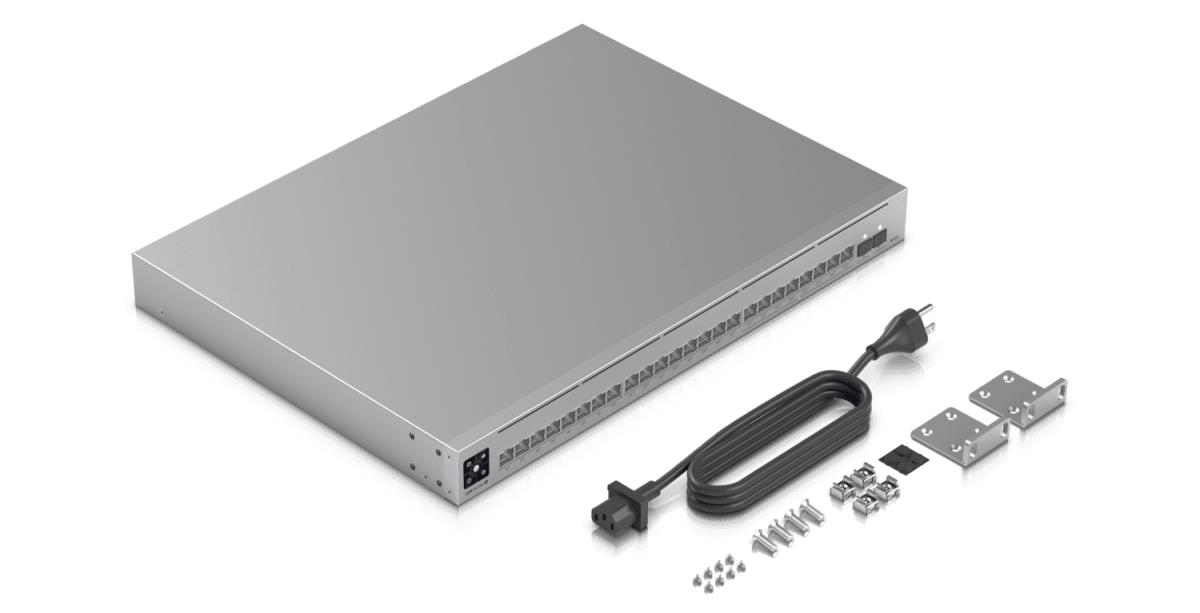

| Cables included | Power |
| Rack mount kit | Yes |
