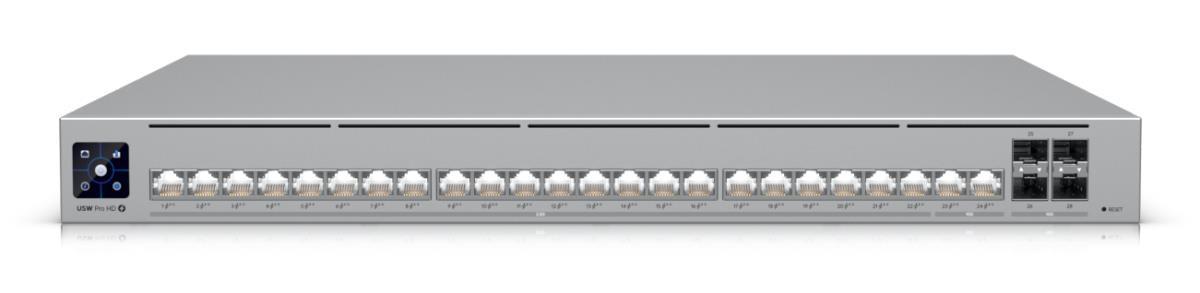

Unifi Switch Usw-pro-hd-24-poe 1u Professional Grade 24-port L3
ITCurry #: N3303436 | Article #: USW-PRO-HD-24-POEFlash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
836.59
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information
Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 22 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 22 |
| 10G Ethernet (copper) ports quantity | 2 |
| SFP+ module slots quantity | 4 |
| Power connector | AC/DC |
| Network | |
| Networking standards | IEEE 802.1x |
| 10G support | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| IPv4 routes | 12000 |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 1000 |
| Data transmission | |
| Switching capacity | 230 Gbit/s |
| Throughput | 115 Gbit/s |
| Forwarding rate | 171 Mpps |
| MAC address table | 32000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
| Security | |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCP snooping |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | SGCC |
| Reset button | Yes |
| LED indicators | Link, Speed, Status |
| Display type | LCM |
| Power | |
| Power source | AC/DC/PoE |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 60 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 600 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 442.4 mm |
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 6.2 kg |
| Packaging content | |
| Cables included | Power |
| Rack mount kit | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Warranty | |
| Base Warranty | Non Non |
