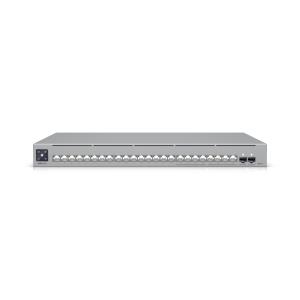

Unifi Switch Usw-mission-critical

ITCurry #: N3302950 | Article #: USW-MISSION
Price:
806.22 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

Product Information

A switch with integrated 368Wh Lithium-ion battery, capable of providing uninterruptible power for 8 devices.

Warranty
Base Warranty Non Non
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 9
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

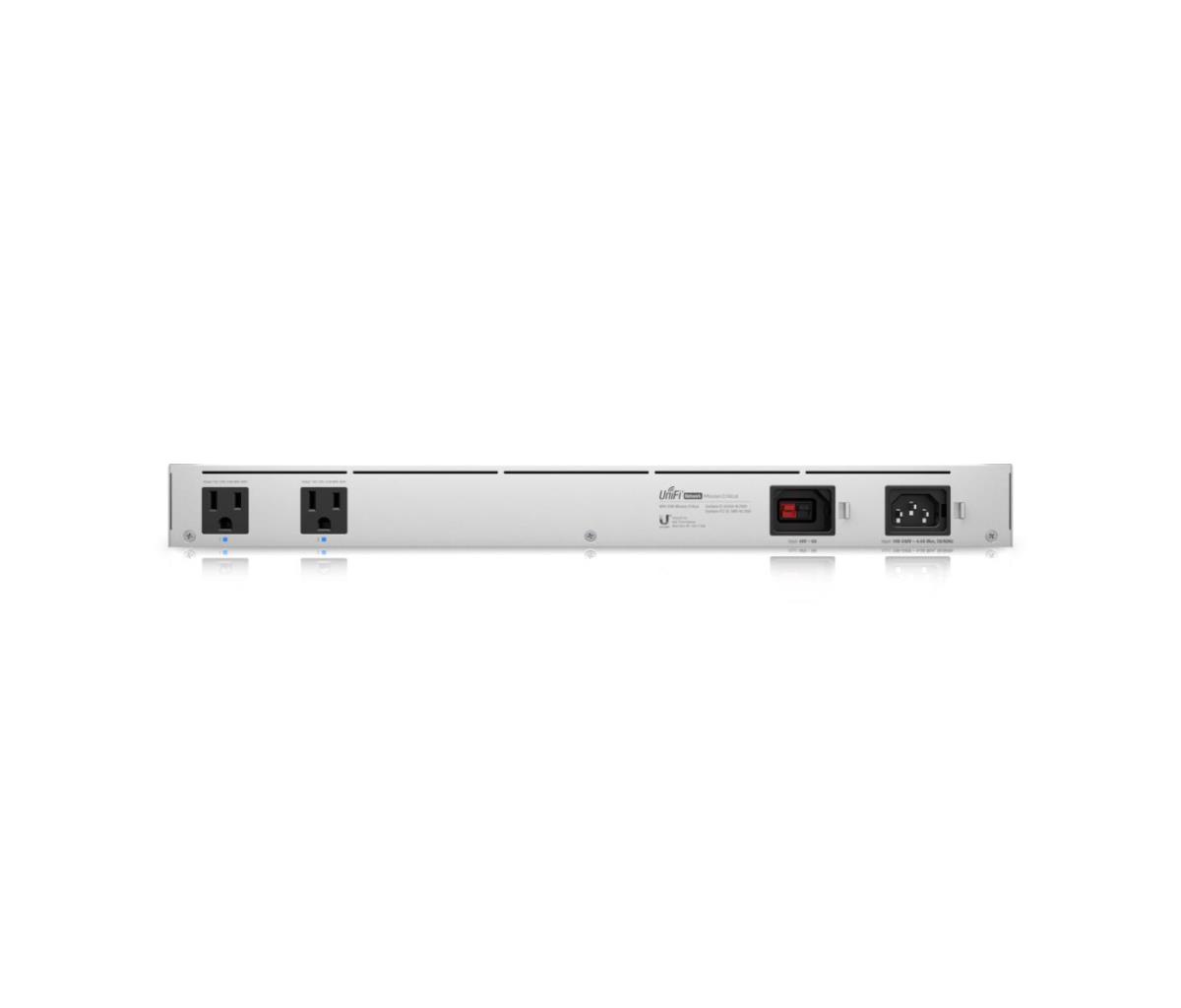

Power connector AC-in jack
Network
Ethernet LAN data rates 10,100,1000 Mbit/s
Data transmission
Switching capacity 18 Gbit/s
Throughput 9 Gbit/s
Forwarding rate 26.78 Mpps
Design

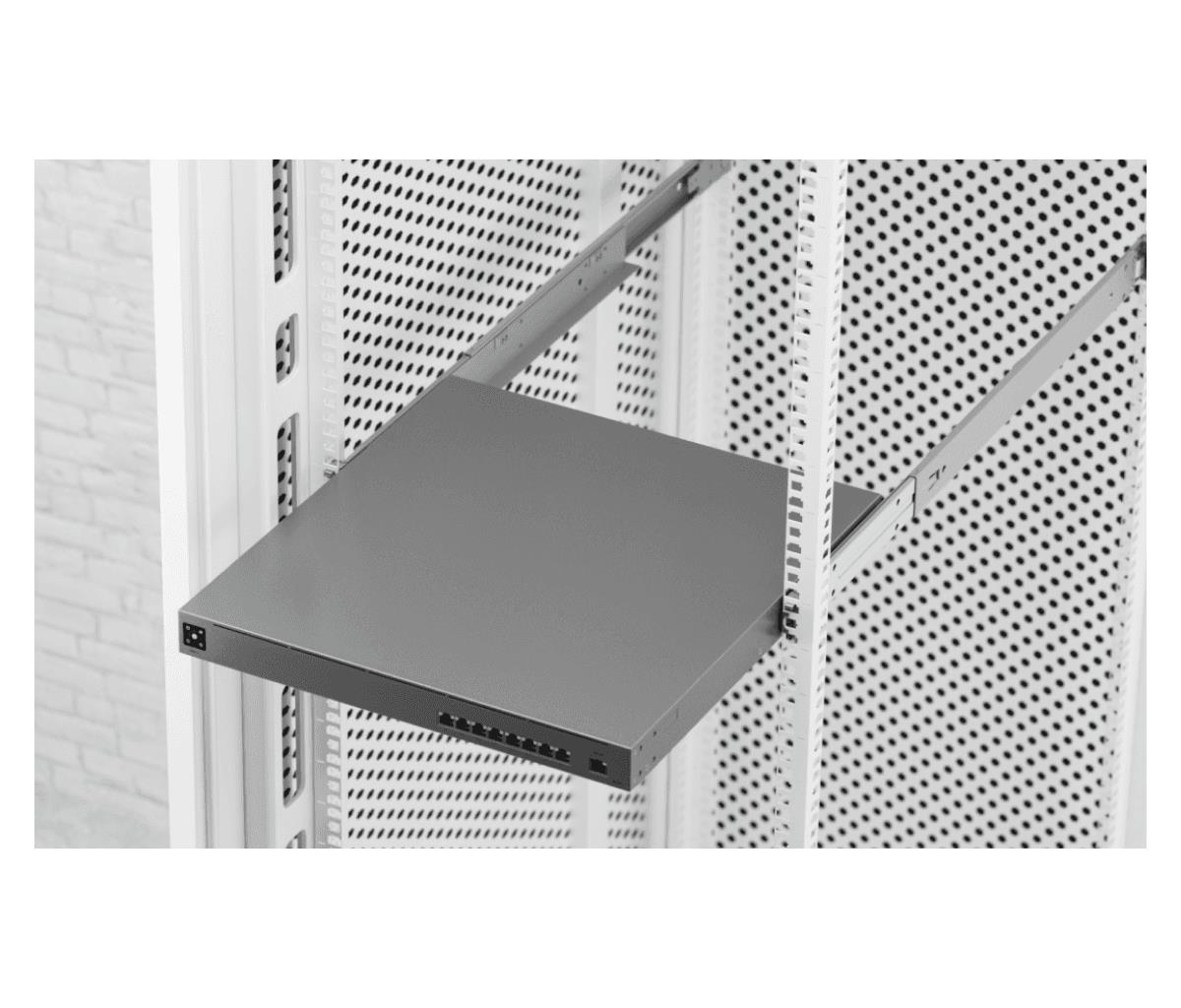

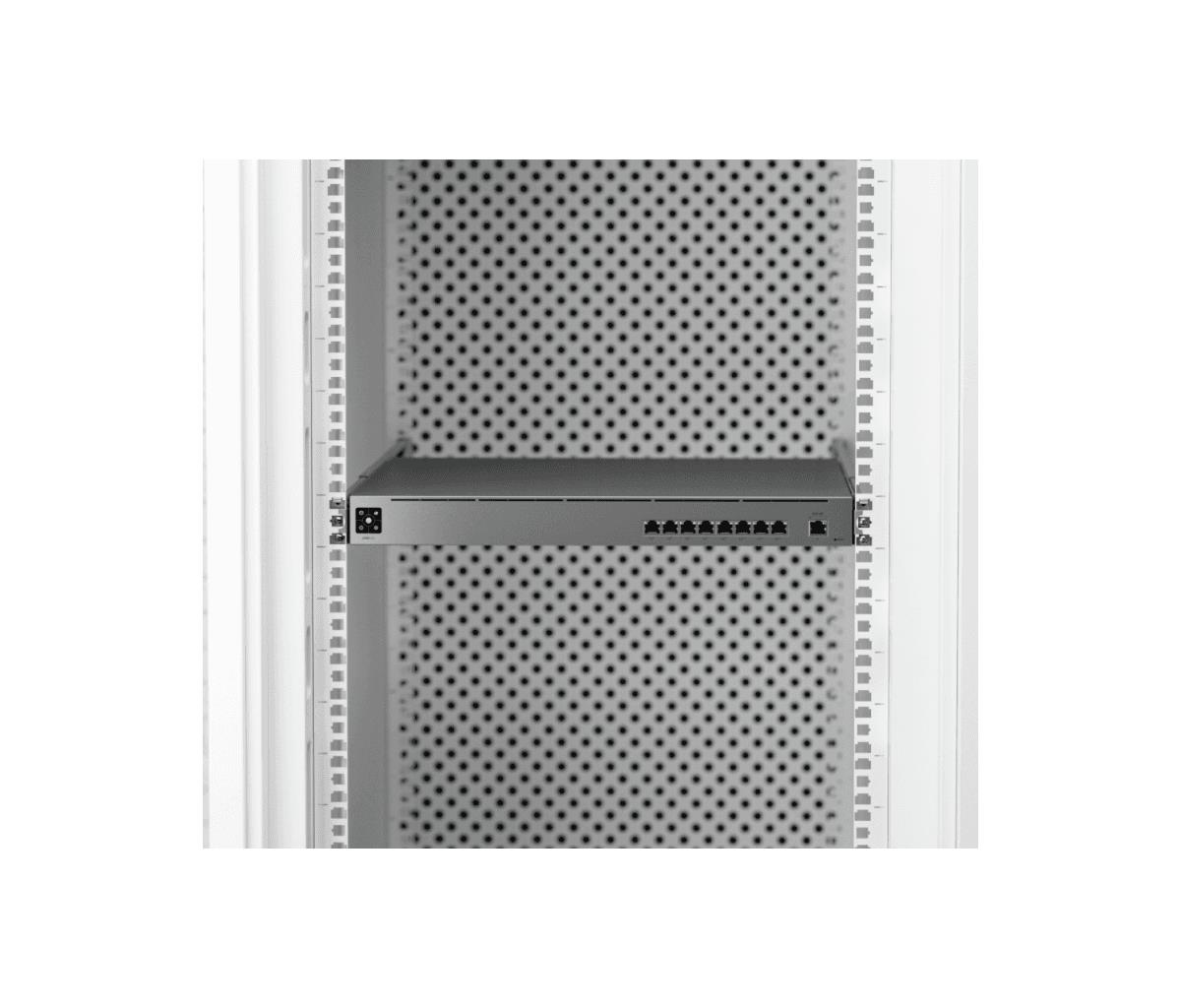

Rack mounting Yes
Form factor 1U
Housing material Steel
Reset button Yes
LED indicators Yes
Technical details
Compliance certificates CE, Federal Communications Commission (FCC)
Power
Power source AC
Power supply included Yes
Number of power supply units 1
AC input voltage 110 - 240 V
AC input frequency 50/60 Hz
DC input voltage 48 V
Input current 4.4 A
Power consumption (max) 240 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 4
Power over Ethernet plus (PoE+) ports quantity 4
Power over Ethernet 4PPoE (PoE++) ports quantity 4
Power over Ethernet (PoE) voltage 57 V
Total Power over Ethernet (PoE) budget 120 W
Operational conditions
Operating temperature (T-T) -5 - 40 øC
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 442 mm
Depth 480 mm
Height 44 mm
Weight 9 kg
Sustainability
Sustainability compliance Yes
