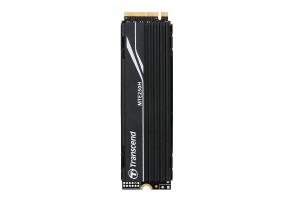

SSD Mte662p 256GB M.2 2280 Nvme Pci-e Gen3 X4 3d Nand Flash
ITCurry #: 31666709 | Article #: TS256GMTE662P-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Transcend's MTE662P M.2 SSD features the PCI Express (PCIe) Gen 3 x4 interface and is compatible with NVM Express (NVMe) 1.3 specifications to achieve never-before-seen transfer speeds. The MTE662P features state-of-the-art 3D NAND technology, which allows 96 layers of 3D NAND flash chips to be vertically stacked. Compared to 3D NAND at 64 layers, this density breakthrough greatly improves storage efficiency, and its built-in DRAM cache allows faster access. Applied with 30µ" gold finger PCB and Corner Bond technology, the MTE662P is fully tested in-house, boasting an endurance rating of 3K Program/Erase cycles and an extended operating temperature ranging from -20°C~75°C. The built-in Power Loss Protection (PLP) further ensures data integrity in mission-critical applications.
Transcend also offers the MTE662P-I with wide temperature (-40? ~ 85?) capabilities to ensure sustained functionality, enhanced endurance, and optimal reliability in mission-critical applications.
| Features | |
| NVMe version | 1.3 |
| SSD form factor | M.2 |
| SSD capacity | 256 GB |
| Interface | PCI Express 3.1 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Component for | PC/Laptop |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Random read (4KB) | 340000 IOPS |
| Random write (4KB) | 355000 IOPS |
| Sequential read speed (CDM) | 3400 MB/s |
| Sequential write speed (CDM) | 2300 MB/s |
| M.2 key ID | M |
| PCI Express interface data lanes | x4 |
| PCI Express CEM revision | 3.1 |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Data retention | 3 year(s) |
| Mean time between failures (MTBF) | 3000000 h |
| Drive writes per day (DWPD) | 2 |
| TBW rating | 2200 |
| Power | |
| Operating voltage | 3.3 V |
| Power consumption (average) | 3.4 W |
| Power consumption (idle) | 0.9 W |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 75 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 20 G |
| Operating shock | 15 G |
| Technical details | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), UKCA |
| Weight & dimensions | |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 3.88 mm |
| Weight | 9 g |
| Warranty | |
| Base Warranty | Non Non |
