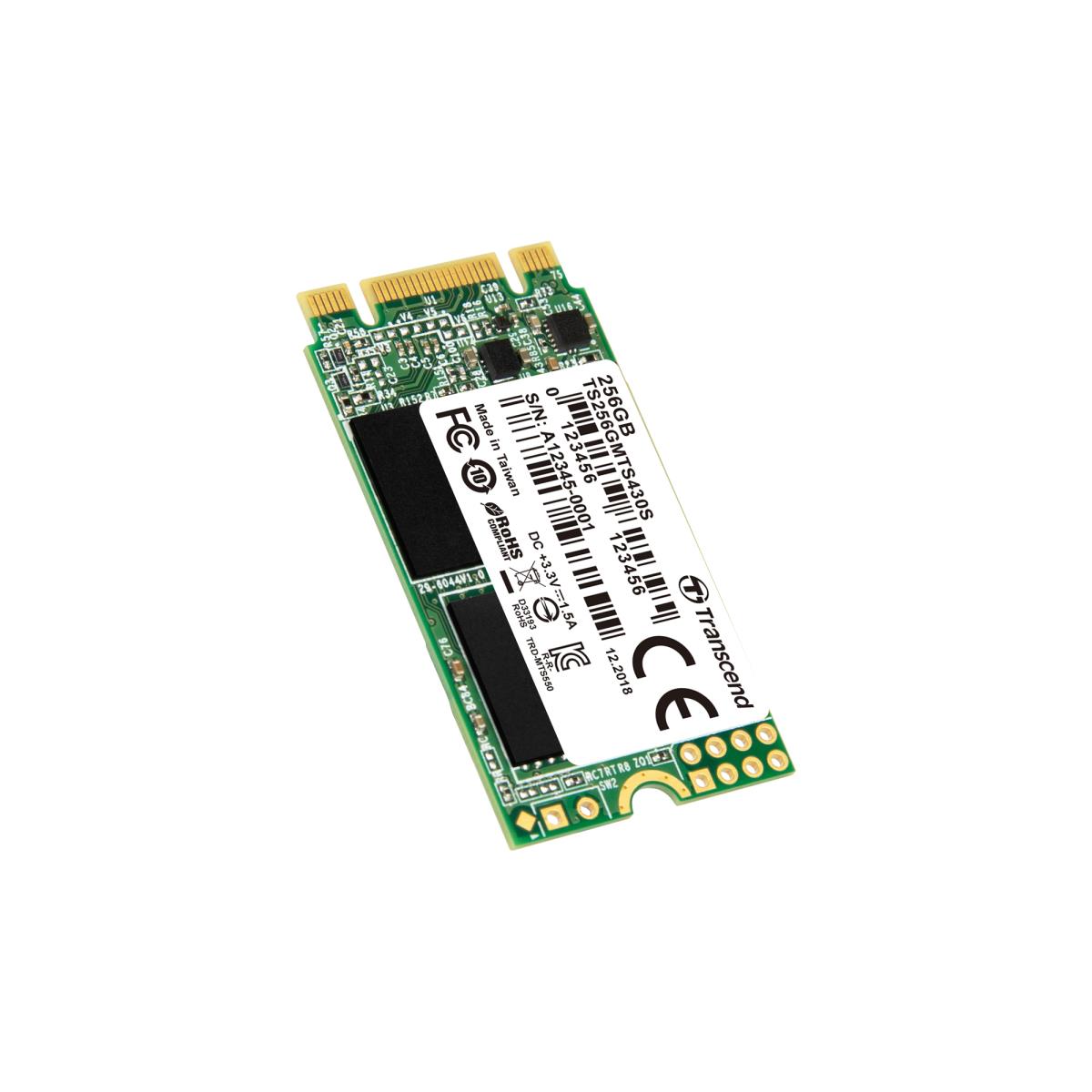

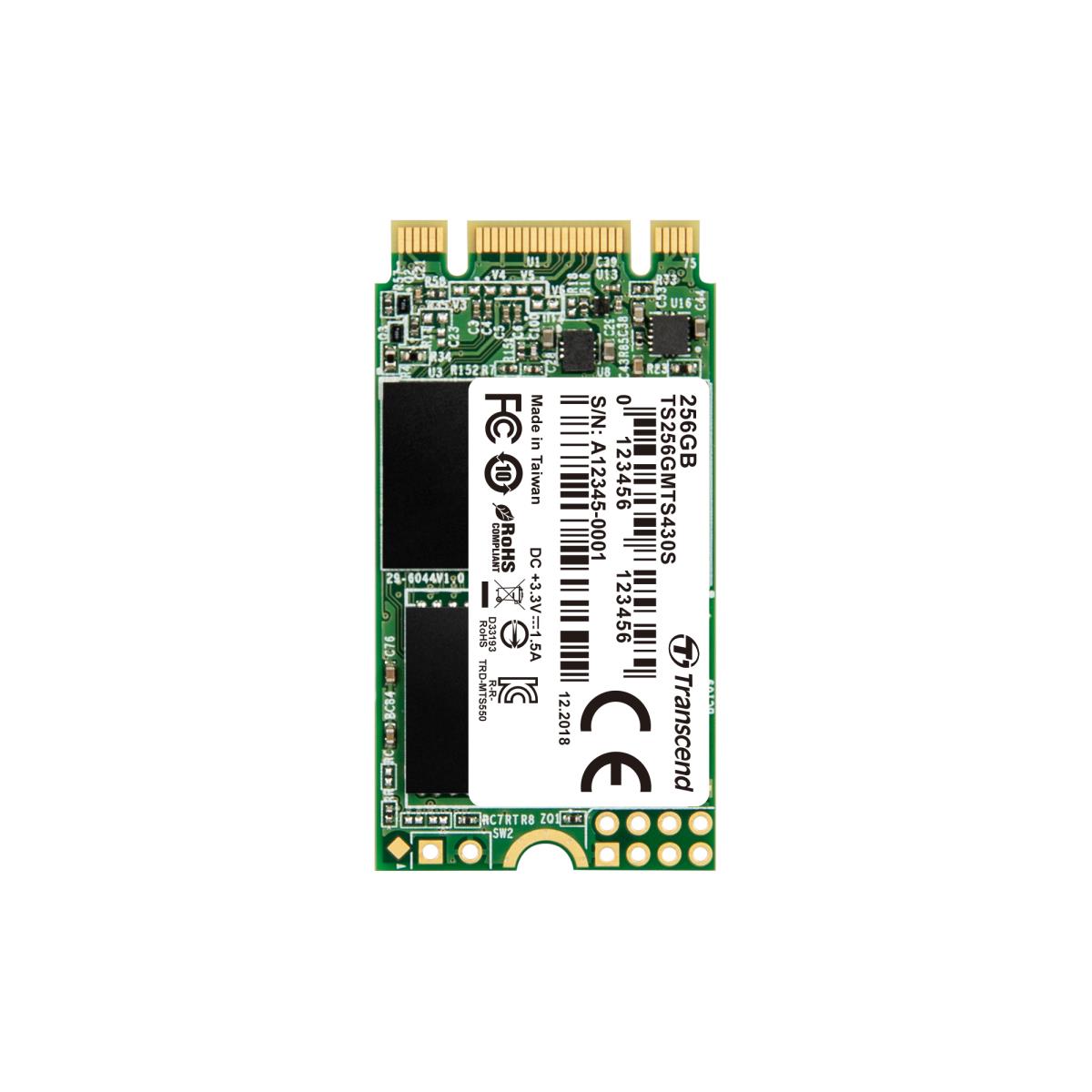

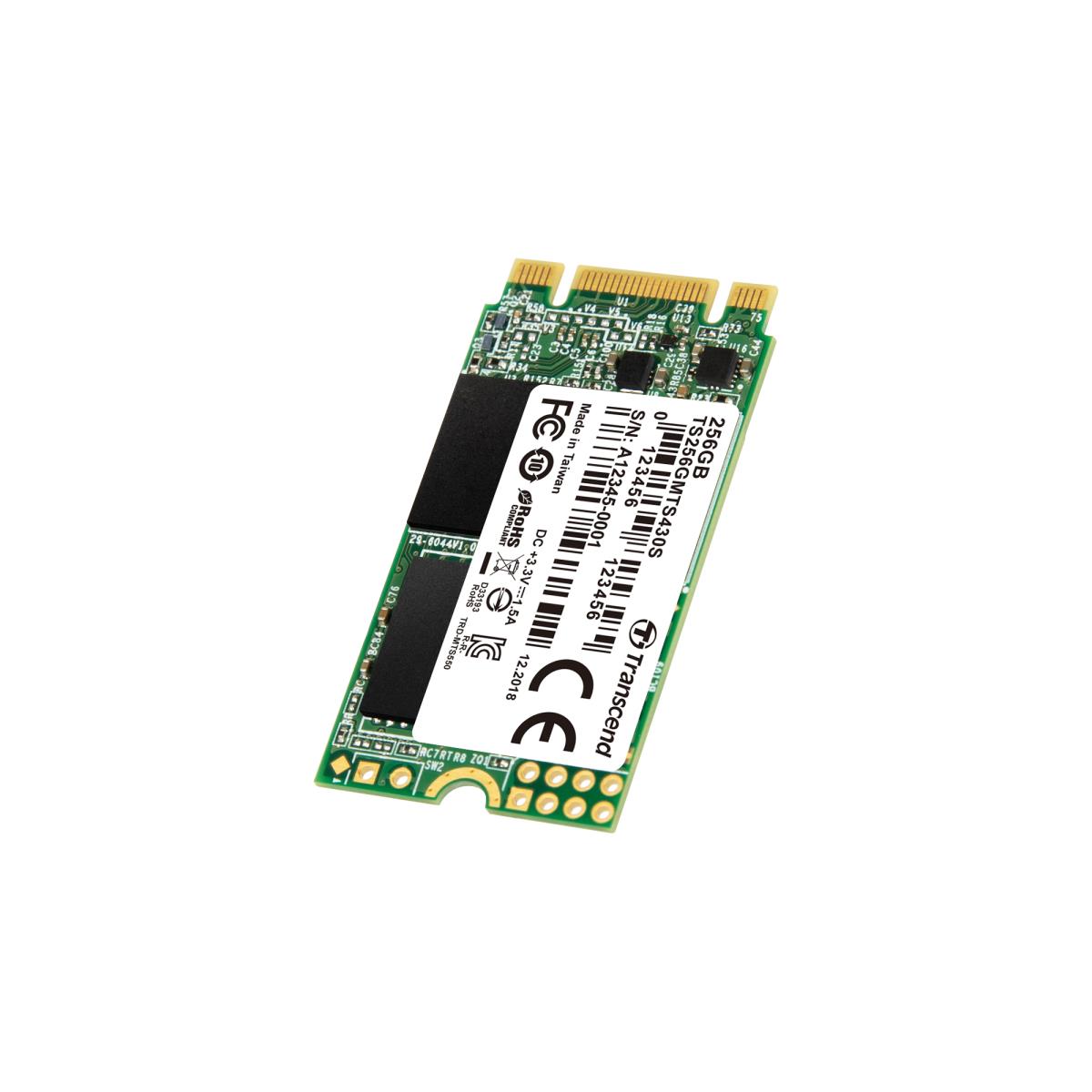

SSD 430s 256GB M.2 2242 SATA Ill 6gb/s 3d Nand Flash
ITCurry #: 31666515 | Article #: TS256GMTS430S-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Transcend's ultra-compact SATA III 6Gb/s M.2 SSD 430S addresses the high-performance needs and strict size limitations of small form factor devices, best suited for Ultrabooks and thin, light notebooks. Boasting high-quality flash chips, DDR3 DRAM cache, and enhanced firmware algorithms, Transcend's M.2 SSD 430S delivers optimal reliability.
3D expansion to break through limits
Unlike the existing planar NAND chips, 3D NAND flash is a type of flash memory in which the memory cells are stacked vertically in multiple layers. 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance.
Perfect for your Ultrabook
Compliant with M.2 form factors Type 2242 and 2280, Transcend's 3D NAND M.2 SSDs are perfect for use in Ultrabooks and lightweight notebooks. Measured at just 42mm in length, the M.2 SSD 430S makes for an easy upgrade to your computer, taking up little space while giving it a much needed energy boost.
Superior transfer speeds
Featuring the M.2 standard (42mm), the next generation SATA III 6Gb/s interface and a powerful controller, Transcend's M.2 SSD 430S reaches incredible read and write speeds of up to 560MB/s and 500MB/s. When used as a cache, the M.2 SSD 430S provides 1.5 times faster boot time than conventional hard drives.
High IOPS to speed up loading times
Dedicated to maximizing high-performance computing, the M.2 SSD 430S features 4k random file read and write speeds up to 85,000 IOPS that deliver incredibly short loading times and almost instant response for heavy graphics and multimedia applications.
Store more in less space
The M.2 form factor enables expansion and integration of functions onto a single form factor module solution. M.2 SSDs include a smaller form factor but with larger capacities than that of mSATA and half-slim SSDs.
Potent and feature-laden
Despite its extra-small dimensions, the M.2 SSD 430S boasts a DDR3 DRAM cache and contains advanced features to enhance the performance of the SSD.
Error Correcting Code (ECC)
Detects and corrects transfer errors to prevent data corruption
Garbage Collection
Relocates existing data to release memory blocks
Wear-leveling
Distributes data evenly across memory cells to prolong SSD's lifespan
DDR3 DRAM cache
Stores a temporary copy of the most active data to shorten access times
SSD Scope software
Transcend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the condition and optimizing the performance of your drive.
Guaranteed quality
Transcend’s solid state drives are built to the highest standards and rigorously tested, and offer outstanding quality, performance, and reliability.
| Features | |
| SSD form factor | M.2 |
| SSD capacity | 256 GB |
| Interface | Serial ATA III |
| Memory type | 3D NAND |
| NVMe | No |
| Component for | PC |
| Data transfer rate | 6 Gbit/s |
| Read speed | 530 MB/s |
| Write speed | 400 MB/s |
| Random read (4KB) | 45000 IOPS |
| Random write (4KB) | 70000 IOPS |
| Sequential read speed (CDM) | 530 MB/s |
| Sequential write speed (CDM) | 400 MB/s |
| DevSlp (device sleep) support | Yes |
| RAID support | Yes |
| Low-density parity-check (LDPC) | Yes |
| Mean time between failures (MTBF) | 1000000 h |
| Active garbage collection | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported | No |
| Linux operating systems supported | Kernel 2.6.31 |
| TBW rating | 140 |
| Certification | CE/FCC/BSMI/KC/RCM |
| Power | |
| Operating voltage | 3.3 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Weight & dimensions | |
| Width | 42 mm |
| Depth | 3.58 mm |
| Height | 22 mm |
| Weight | 5 g |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
| Other features | |
| Product colour | Black, Green |
| Warranty | |
| Base Warranty | Non Non |
