Wi-Fi Outdoor Access Point N300
ITCurry #: P6042724 | Article #: EAP110-OUTDOOR-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Enjoy Wi-Fi Outside, Finally
Omada EAP110-Outdoor
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP110-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas

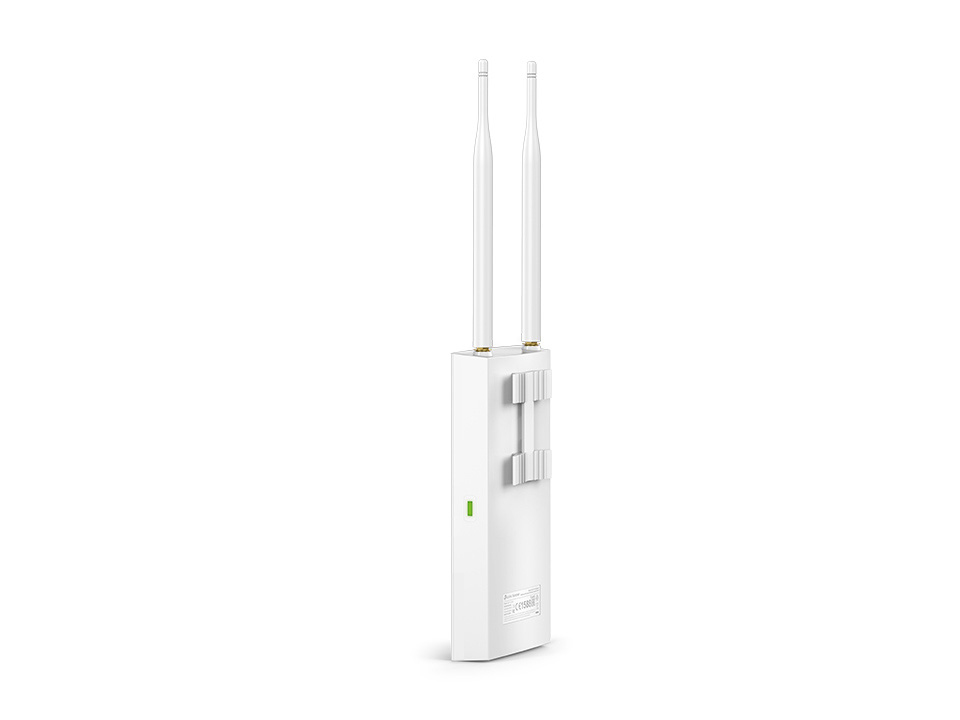

EAP110-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Delicate Appearance Even Better for Indoor Applications

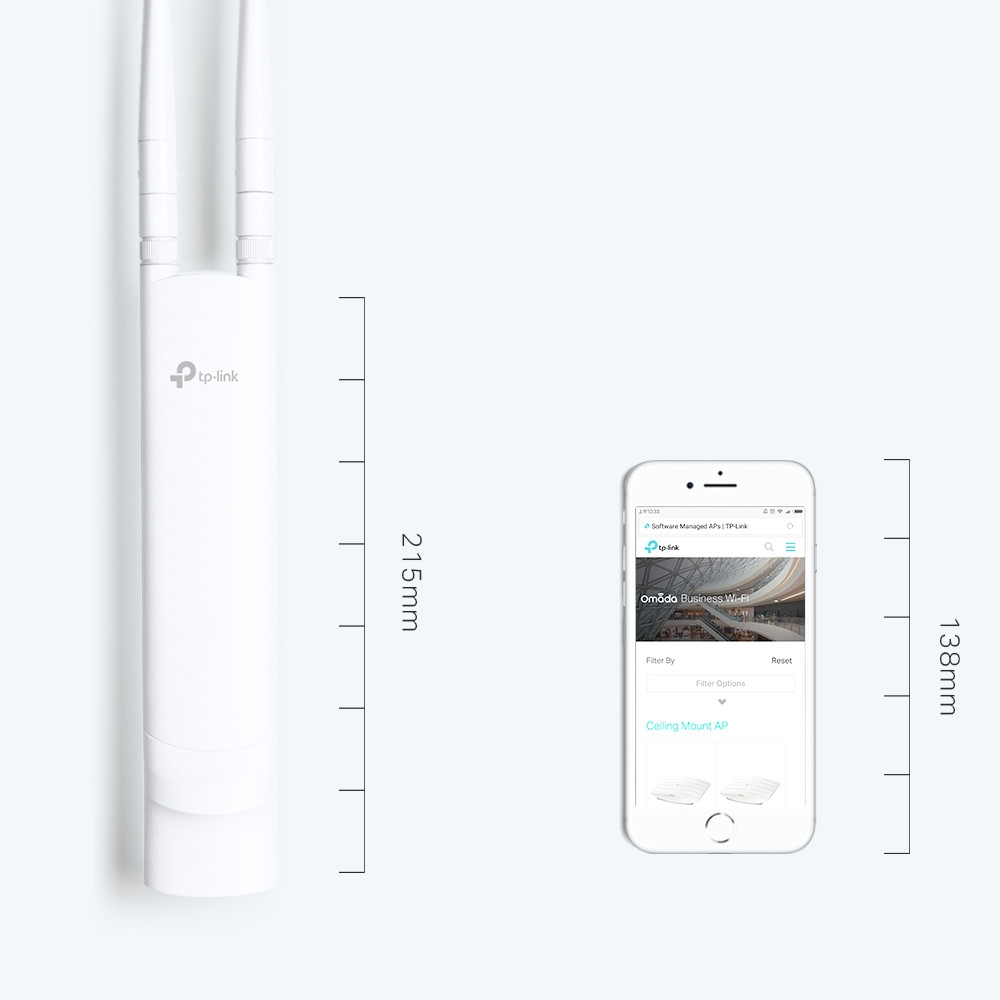

EAP110-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.1in. (215 × 46 × 27mm)
Supports Passive PoE for Easy Outdoor Set up
Do away with DC power adapters and power cords with passive Power over Ethernet (PoE), making outdoor deployment simple and fast.
Flexible Deployment

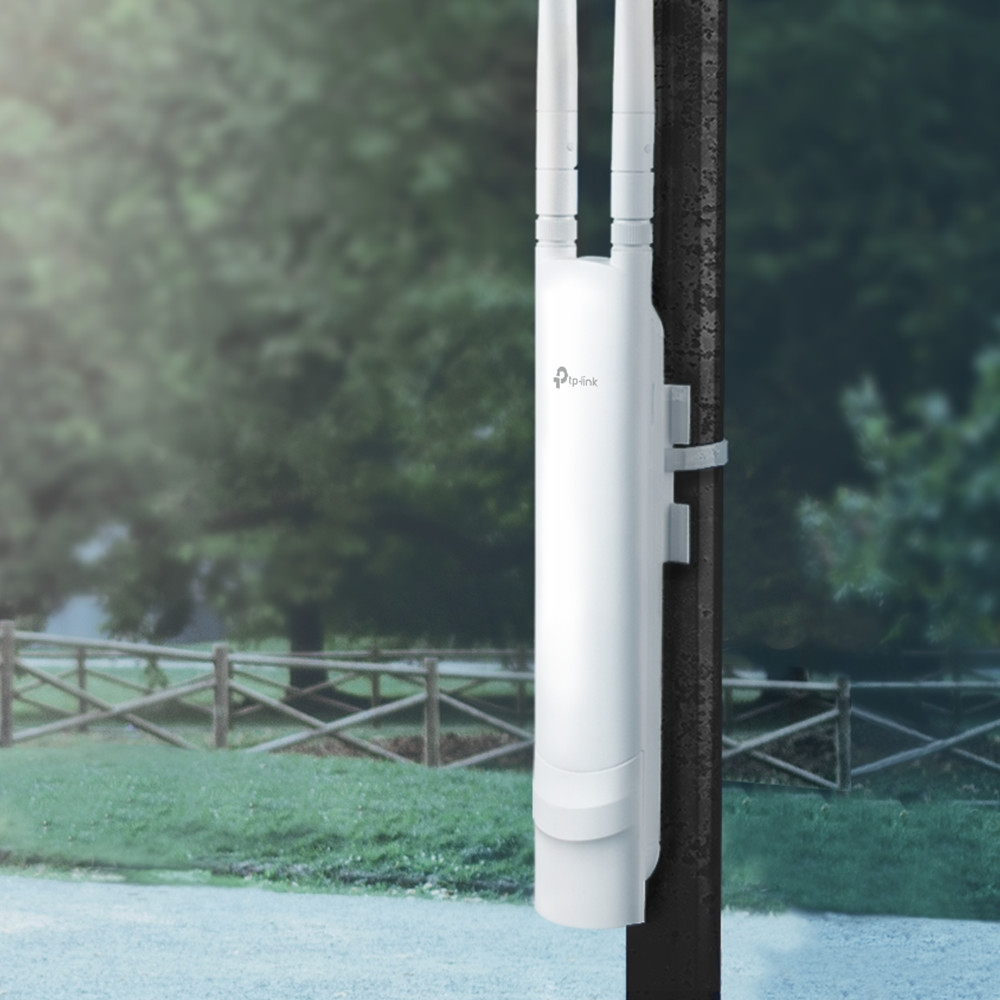

EAP110-Outdoor can be easily installed to a pole or on a wall with the mounting kits provided.
Wi-Fi That Goes the Distance
With high transmission power and two high-gain omnidirectional antennas,
EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters* in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| 6 GHz | No |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.4 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Automatic channel selection | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, VLAN mapping |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Quality of Service (QoS) support | Yes |
| Transmitting power (CE) | 20 dBm |
| Transmitting power (FCC) | 22 dBm |
| Security | |
| Security algorithms | WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 8 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
| Protocols | |
| Management protocols | HTTP/HTTPS, SNMP, Telnet |
| Management features | |
| Web-based management | Yes |
| Syslog | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Output voltage | 24 V |
| Output current | 0.6 A |
| Power consumption (max) | 3.12 W |
| Design | |
| Placement | Pole, Wall |
| Product colour | White |
| International Protection (IP) code | IP65 |
| Reset button | Yes |
| LED indicators | Power |
| Certification | CE, FCC, RoHS |
| Antenna | |
| Antenna type | External |
| Antenna direction type | Omni-directional |
| Antenna features | Detachable antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 3 dBi |
| Performance | |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions | |
| Width | 216 mm |
| Depth | 46 mm |
| Height | 27 mm |
| Packaging data | |
| Package width | 140 mm |
| Package depth | 270 mm |
| Package height | 100 mm |
| Package weight | 620 g |
| Package type | Box |
| Packaging content | |
| Number of products included | 1 pc(s) |
| PoE adapter included | Yes |
| Cables included | AC |
| Mounting kit | Yes |
| Antenna included | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 65 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS |
| Warranty | |
| Base Warranty | Non Non |
