Switch Ds-p7001-04 Deltastream 4-port Pizza-box Gpon Optical Line Terminal
ITCurry #: P6043827 | Article #: DS-P7001-04-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

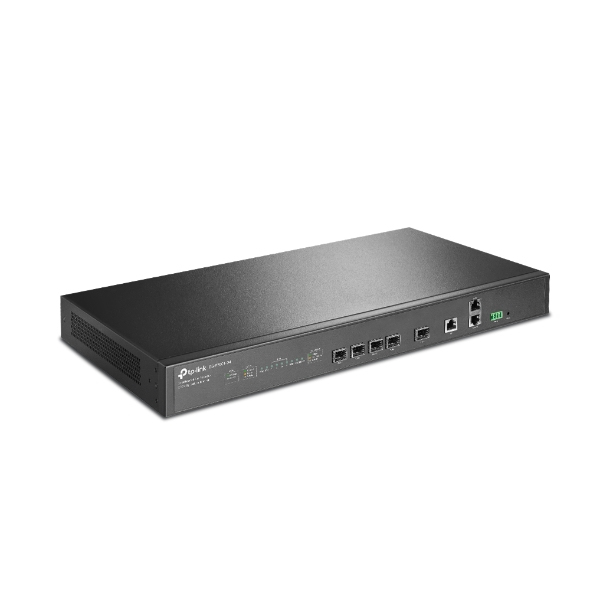

4-Port GPON Optical Line Terminal
4 GPON Ports,
Supports 512 ONUs
Supports 1:128 splitting ratio for every port—up to 512 ONTs by one device.
Free Centralized Management
Via DeltaStream PON Management System (DPMS)
Easy maintenance and centralized management makes your life a breeze. Configure and update all your devices at once via DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI.
- No Additional Expense
- Improve Management Efficiency And Reduce Maintenance Costs
- The Easy-to-Use Dashboard Ensures Hassle-Free Configuration
Compact Size, Flexible Deployment
Mount in a rack for flexible deployment with all your other products.

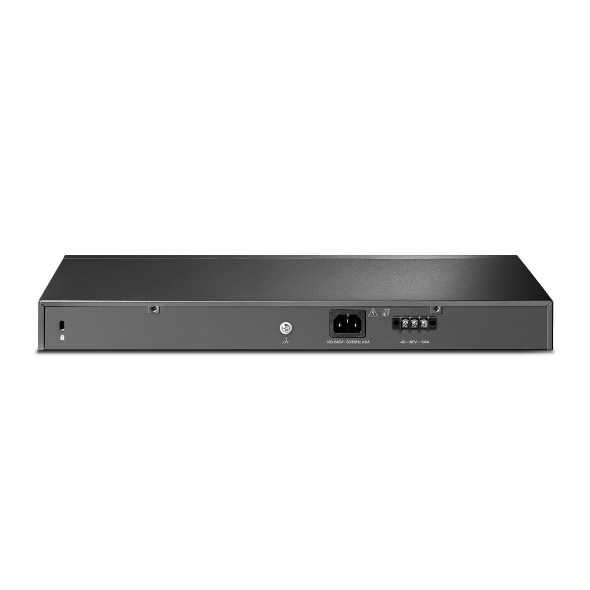

Constant Reliability Through Redundant Dual Power Supplies
Dual built-in AC and DC power supplies ensures carrier-class reliability.
| Features | |
| Static route | Yes |
| DHCP server | Yes |
| DHCP relay | Yes |
| IGMP snooping | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Quality of Service (QoS) support | Yes |
| GPON split ratio (max) | 1:128 |
| Maximum operating distance (GPON) | 20000 m |
| Access Control List (ACL) | Yes |
| Ports & interfaces | |
| Upstream ports | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| GPON ports quantity | 4 |
| SFP/SFP+ slots quantity | 1 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC voltage range | 38.4 - 72 V |
| Power consumption (max) | 58 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Warranty | |
| Base Warranty | Non Non |
