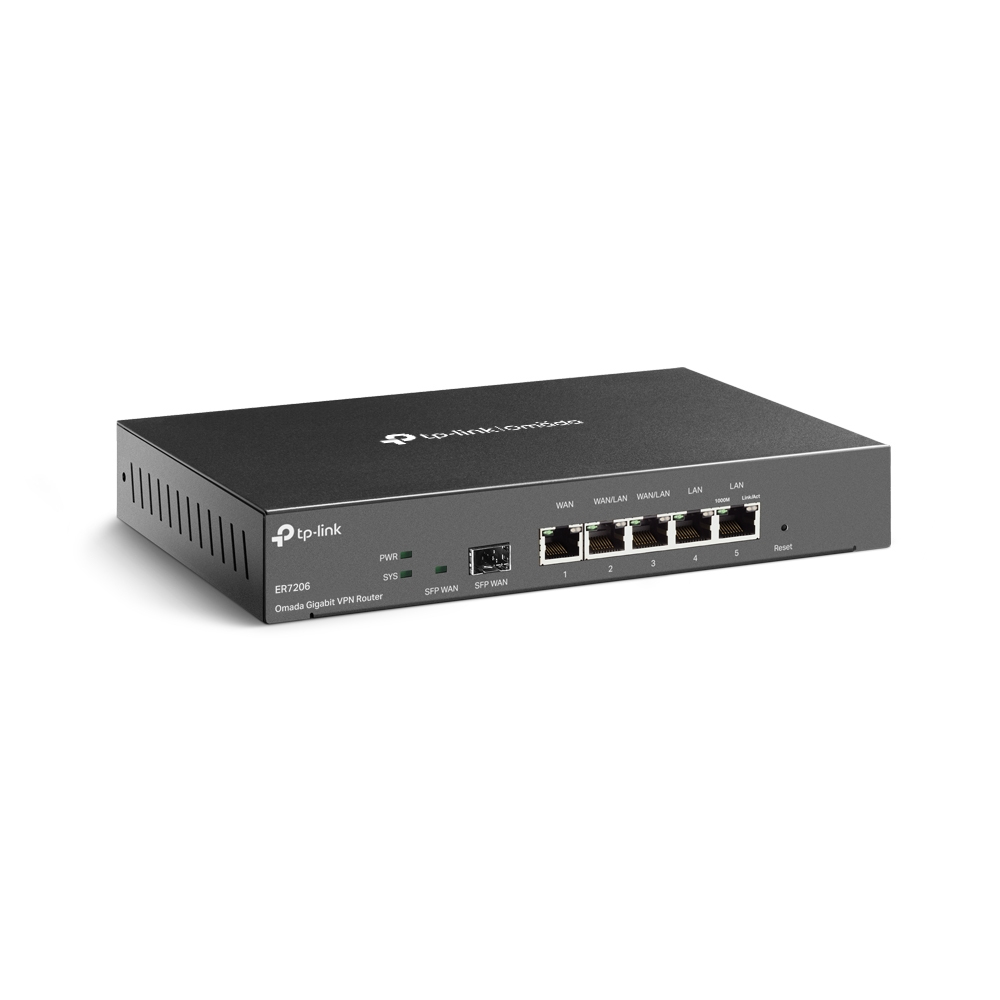

Safestream Tl-er7206 Gigabit Multi-wan Vpn Router
ITCurry #: P6043256 | Article #: ER7206-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

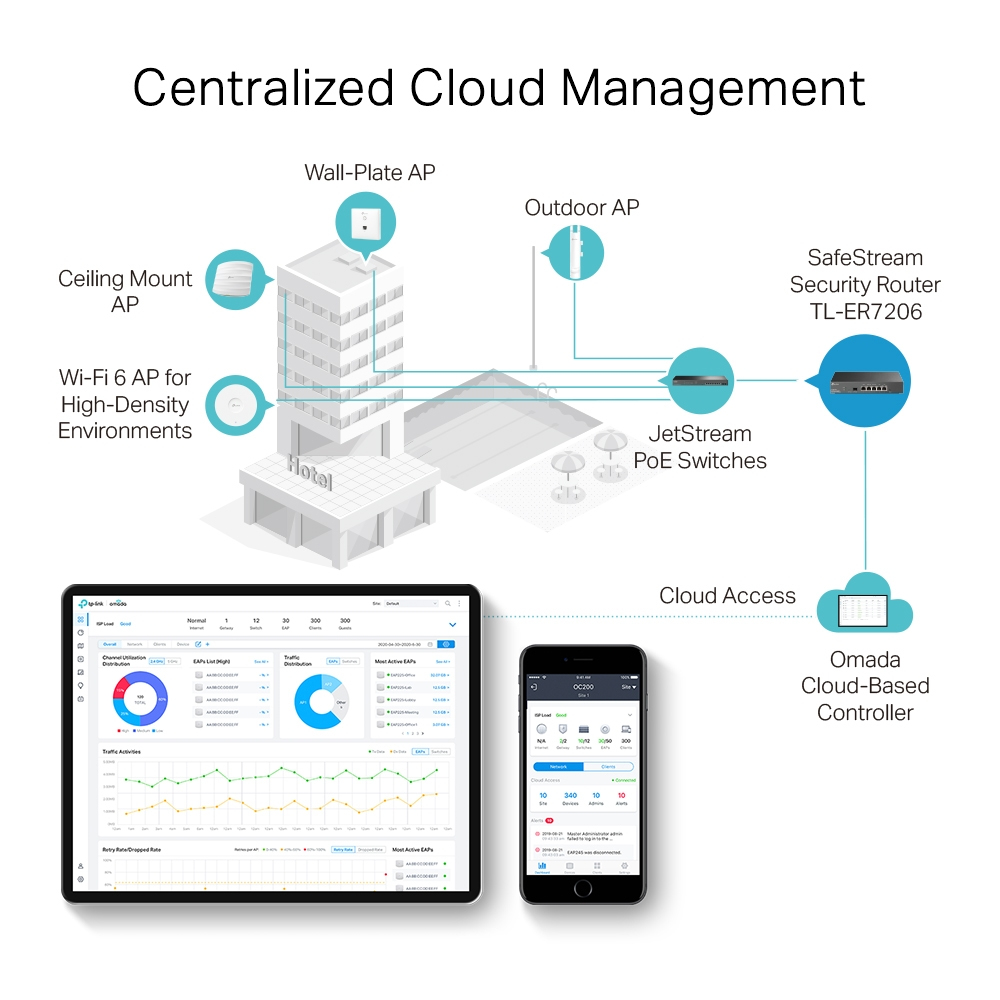

Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER7206 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

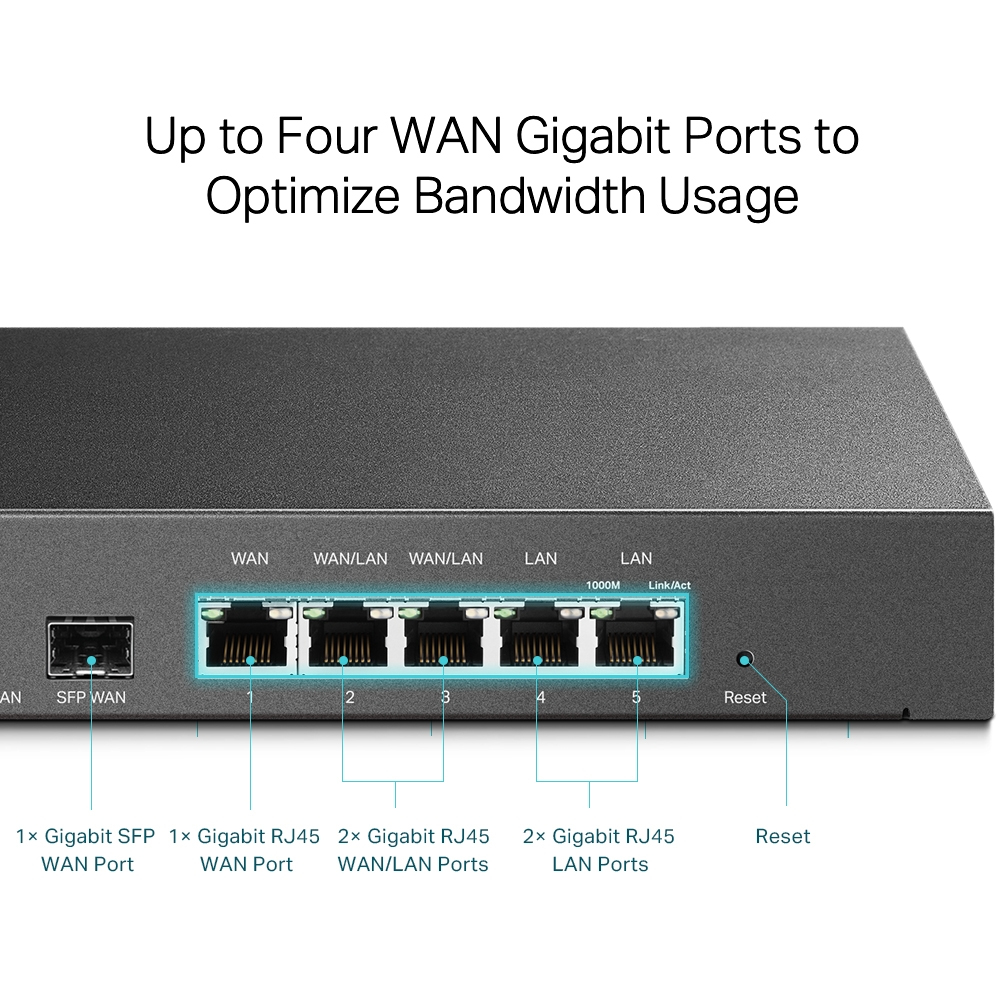

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
One gigabit SFP WAN port, one gigabit RJ45 WAN port, and two freely interchangeable WAN/LAN ports allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

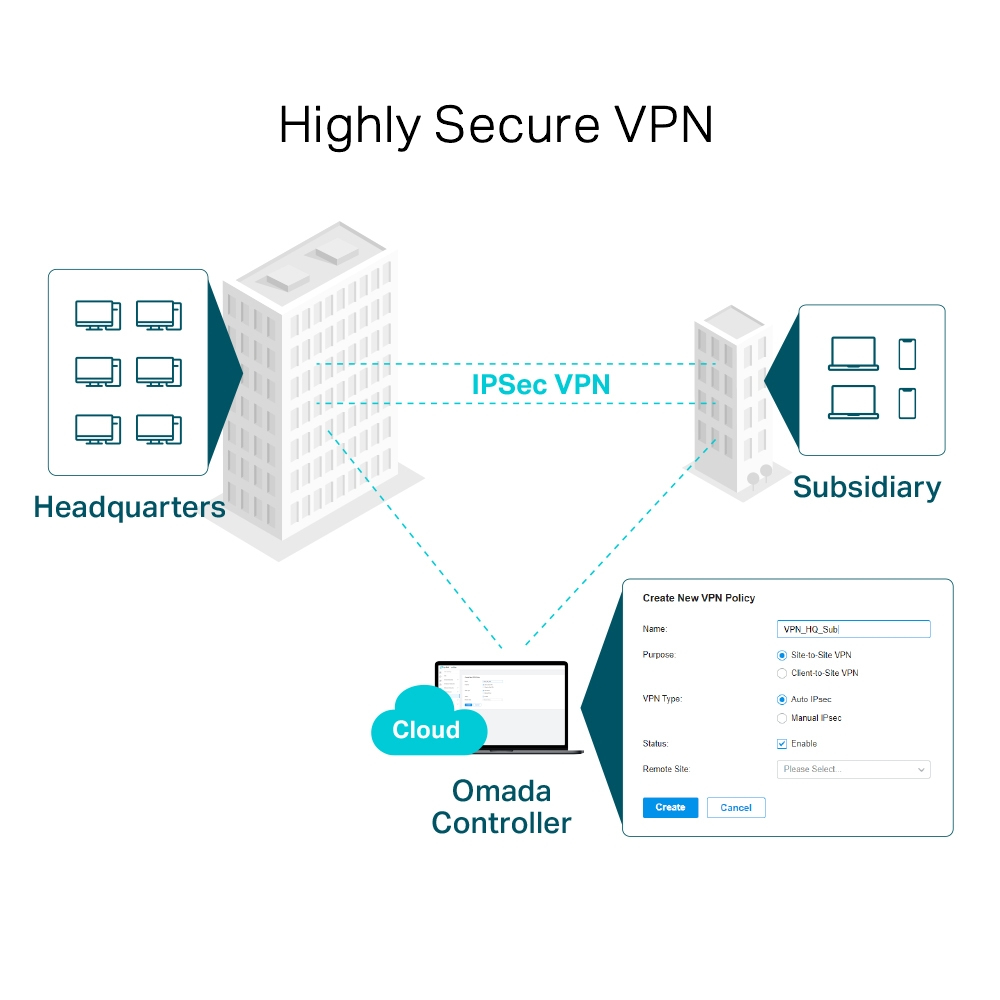

Highly Secure VPN
ER7206 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 100× LAN-to-LAN IPSec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.
Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| SFP WAN | Yes |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Static route | Yes |
| VLAN support | Yes |
| Policy-based routing | Yes |
| Management features | |
| Web-based management | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| Protocols | |
| DMZ support | Yes |
| DHCP server | Yes |
| Supported network protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP |
| Security | |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, IPSEC, MD5, SHA-1, SNMP, SNMPv2, SNMPv3 |
| Firewall | Yes |
| Firewall security | SPI |
| URL filtering | Yes |
| ARP attack prevention | Yes |
| Access Control List (ACL) | Yes |
| System event log | Yes |
| VPN support | IPSec VPN, PPTP VPN, L2TP VPN, OpenVPN |
| Features | |
| Flash memory | 132 MB |
| Internal memory | 512 MB |
| Internal memory type | DRAM |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Certification | CE, FCC, RoHS |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, Power, System, WAN |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 226 mm |
| Depth | 131 mm |
| Height | 35 mm |
| Packaging data | |
| Cables included | AC |
| Quick installation guide | Yes |
| Package width | 226 mm |
| Package depth | 288 mm |
| Package height | 72 mm |
| Package weight | 1.32 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
