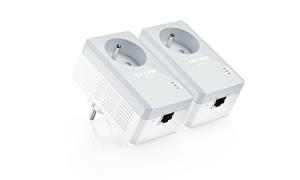

Powerline Adapter - Starter Kit Ac Pass Through - 2 Pack
ITCurry #: P6042560 | Article #: TL-PA8010P KIT-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Upgraded 1300Mbps!
Perfect for Bandwidth Demanding Activities
Advanced HomePlug AV2 technology means the TL-PA8010P KIT supports 2x2 MIMO* with beamforming, so users benefit from ultra-fast data transfer speeds of up to 1300Mbps. Perfect for bandwidth demanding activities like streaming Ultra HD video to multiple devices simultaneously, online gaming and large file transfers.
Line-Neutral / Line-Ground with Beamforming
Larger Range
MIMO Technology with Beamforming maximizes the performance on the independent streams, which improves coverage throughout the home, particularly for previously hard to reach outlets.
Higher Transmission Capacity & More Stable Connections
MIMO Technology means the TL-PA8010P KIT can use the 3 wires, including the live, neutral and earth to create multiple data paths, meaning that you benefit from faster data throughput and more stable connections.
Gigabit Port for Ultra-fast Data Transfer Speed
With one Gigabit Ethernet port, TL-PA8010P KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA8010P KIT the perfect home entertainment companion.
Plug and Play, No Configuration Required
Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you’re done!
Extra Power Socket for Additional Devices
The integrated power socket, with power output of up to 16A, means the powerline can be used like a traditional electrical socket. Simply plug in your device or extension lead as though it were a normal wall socket. The built-in noise filter also helps to prevent electrical signal noise from affecting Powerline performance.
Power Save by Up to 85%
TL-PA8010P KIT is a new-generation of Powerline adapter. Its sophisticated Power-Saving mode automatically switches from its regular “Working” mode to “Power-Saving” mode reducing energy consumption by up to 85%.
| Performance | |
| Maximum data transfer rate | 1300 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet LAN (RJ-45) ports | 1 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| MIMO | Yes |
| Plug and Play | Yes |
| Power | |
| Power consumption (typical) | 4.6 W |
| Power consumption (standby) | 0.5 W |
| Design | |
| LED indicators | LAN, PLC, Power |
| Product colour | White |
| Certification | CE |
| Warranty | |
| Base Warranty | Non Non |
| System requirements | |
| Windows operating systems supported | Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows XP |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | macOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 130.7 mm |
| Depth | 71.7 mm |
| Height | 42 mm |
| Package width | 230 mm |
| Package depth | 190 mm |
| Package height | 100 mm |
| Package weight | 730 g |
| Technical details | |
| Compliance certificates | RoHS |
| Packaging content | |
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
