Product Information

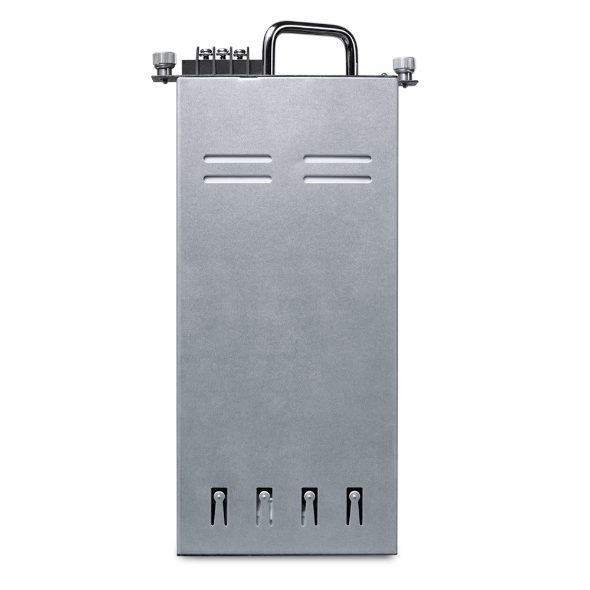

The TP-Link Power Supply Module PSM150-DC is an DC-input and DC-output power supply module. It can convert the input voltage to 12 Volts with the maximum output power of 150 Watts. The power supply module is fully hot swappable, helping to ensure no system interruption during installation or replacement. PSM150-DC is applicable to GPON OLT products, such as DS-P7001-08 and DS-P7001-16.
| Features | |
| Product type | Power supply |
| Product colour | Black, Metallic |
| Internal | Yes |
| LED indicators | Yes |
| Power protection features | Over current, Over voltage, Short circuit, Under voltage |
| Compatibility | DS-P7001-08, DS-P7001-16 |
| Power | |
| Total power | 150 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 12.5 A |
| DC output voltage | 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 213 mm |
| Height | 41.8 mm |
| Warranty | |
| Base Warranty | Non Non |
