Av1300 Powerline Wi-Fi Single Pack Withac Passthrough (be Version)

ITCurry #: P6043305 | Article #: TL-WPA8635P(BE)
Price:
104.30 Ex VAT
Shipping:
FREE Shipping.
Delivery in 3 days
Quantity:
Email us for assistance

Related products

slide 7 to 11 of 14

Product Information

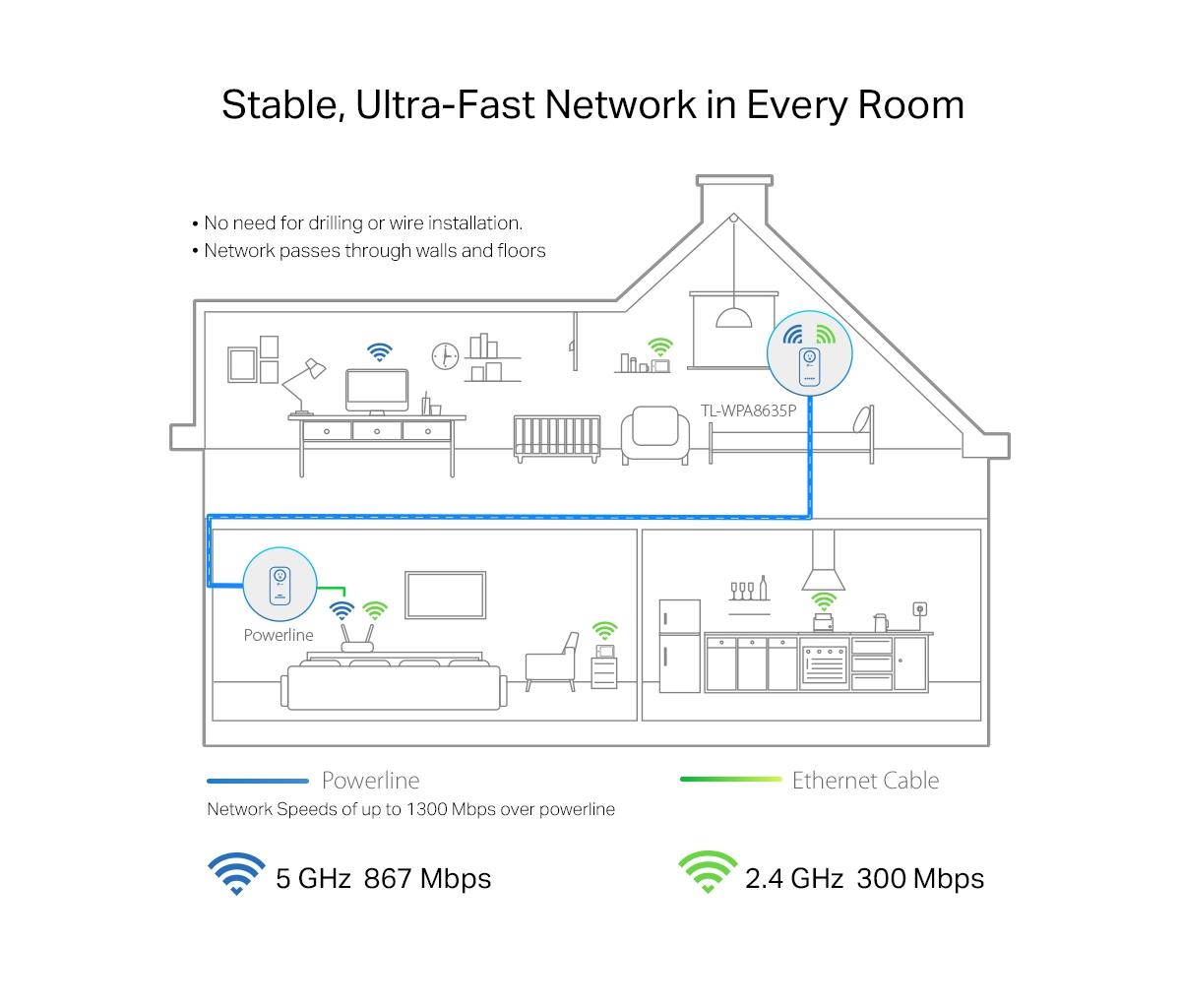

Wall-Piercing Wi-Fi Extended to Every Outlet
AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit

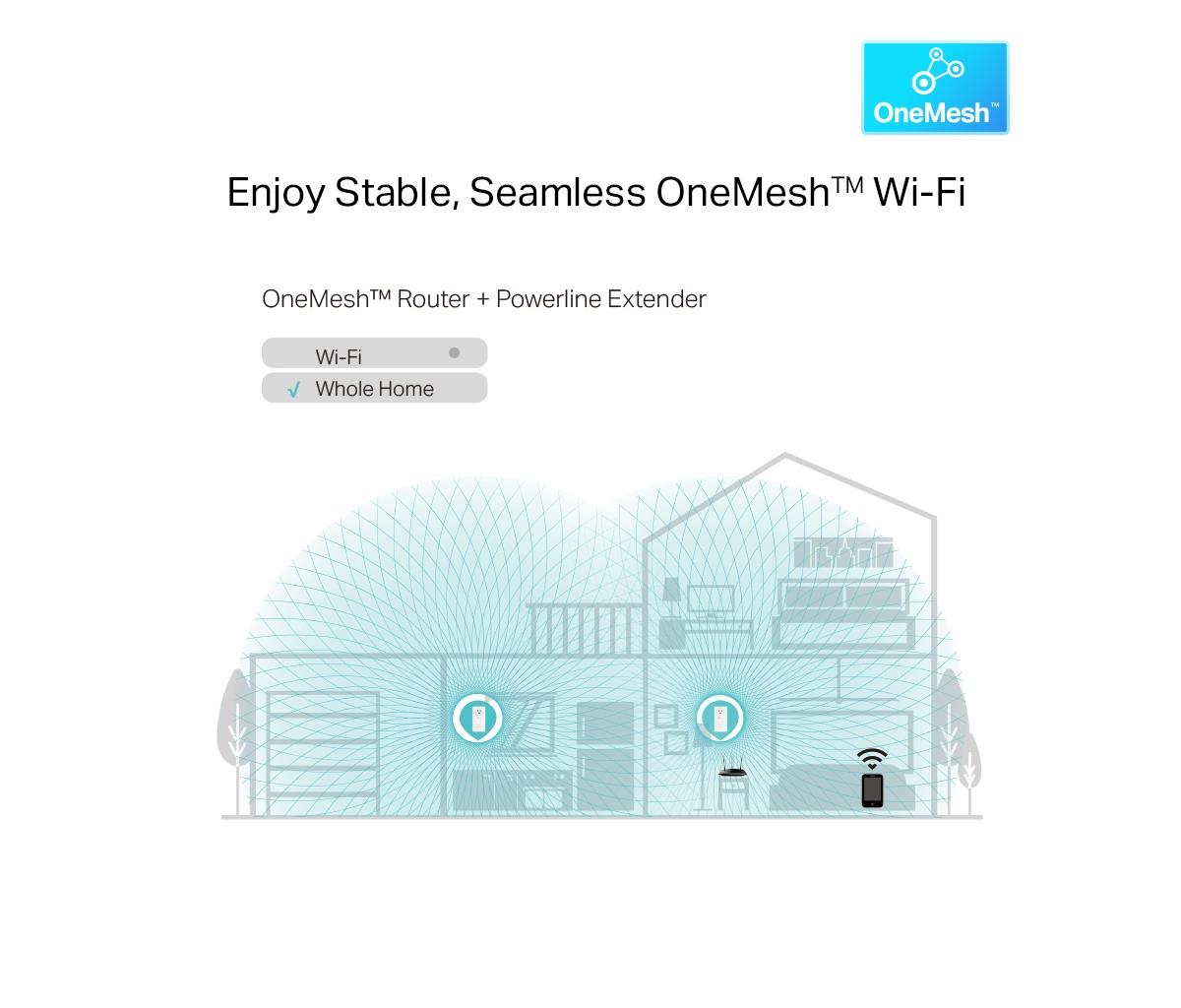

Enjoy Stable, Seamless OneMesh™ Wi-Fi
Bothered by dropped connections while moving around your home?
With the newest OneMeshTM technology, the kit works with your existing OneMeshTM router to form a unified Mesh network. No more switching Wi-Fi network names, enjoy uninterrupted streaming and truly seamless AC1200 Wi-Fi.

2×2 MIMO Technology for Efficient Transmissions

More Stable Connections
2×2 MIMO is like adding extra lanes to a highway. It establishes multiple simultaneous connections for you to enjoy higher speeds and greater stability.

Enhanced Long-Distance Performance
2×2 MIMO with Beamforming technology also offers the benefit of improved coverage throughout the home, particularly for previously hard-to-reach outlets.

One Tap for a Unified Network

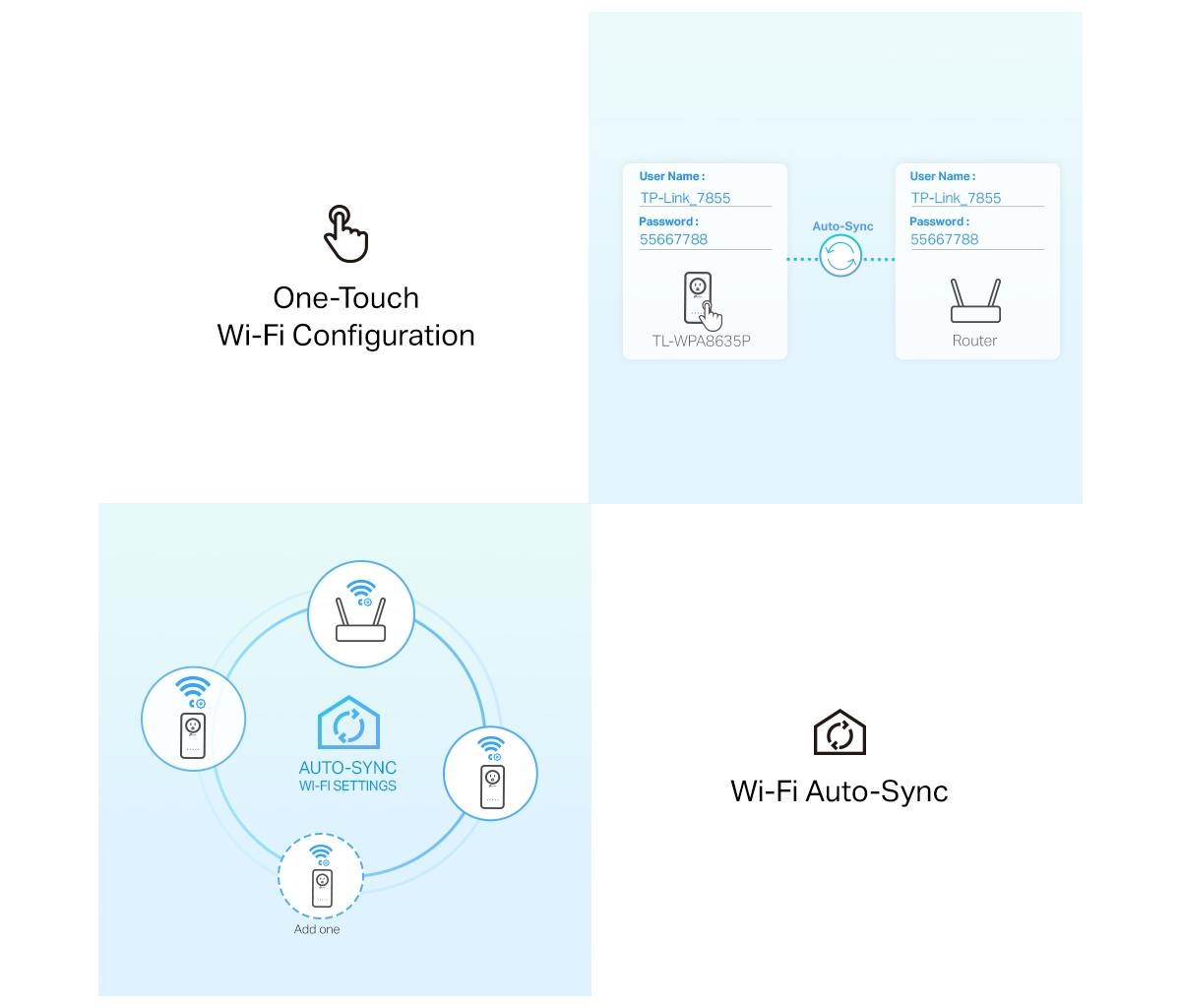

One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup.

Wi-Fi Auto-Sync
Automatically applies any setting changes across the network. Your existing Wi-Fi settings will synchronize to the new extender instantly.

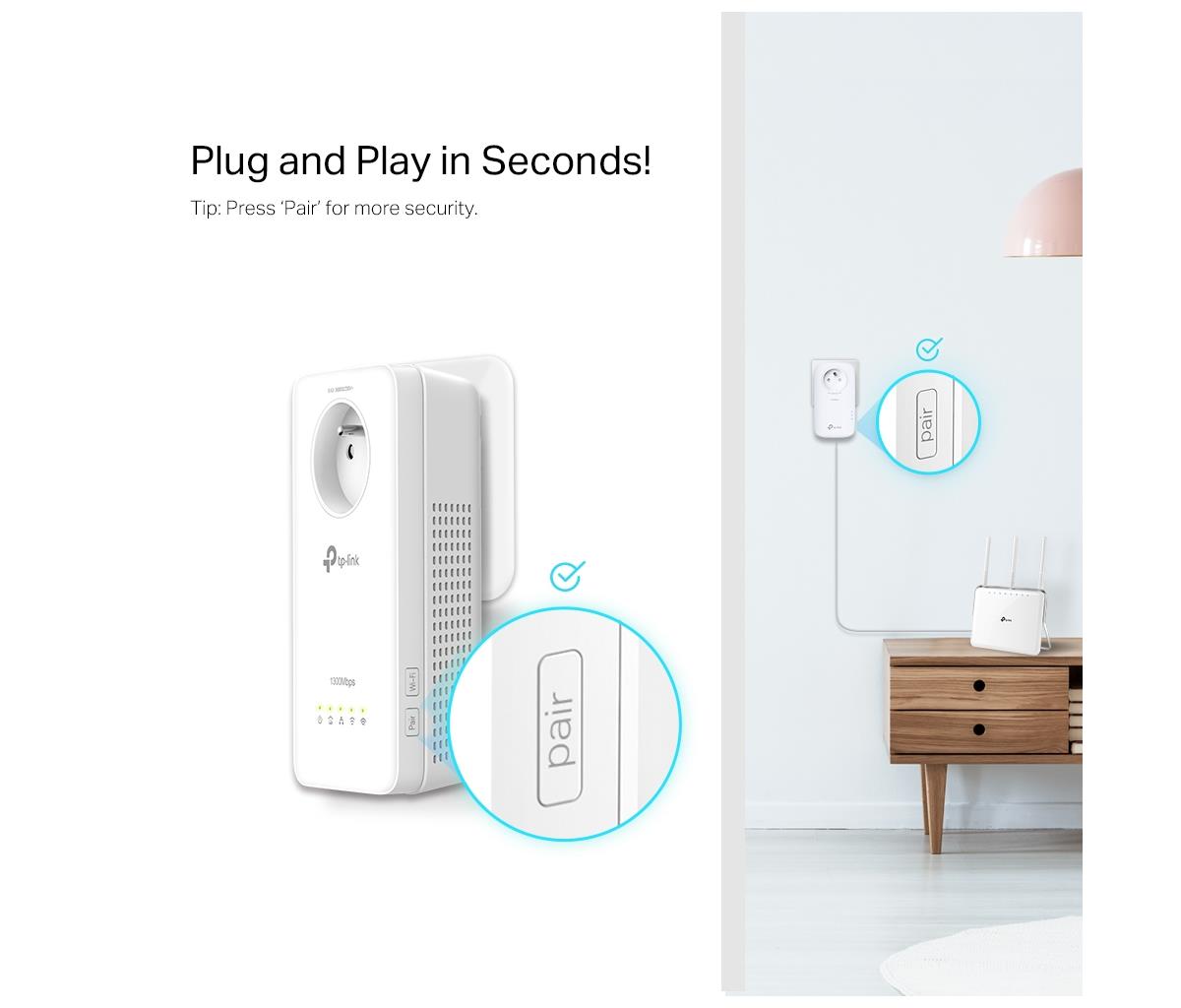

Plug and Play in Seconds!
Plug TL-PA8010P in the wall and connect it to the router. Then plug TL-WPA8631P into any desired power socket.
That’s it. You’re done!
Tip: Press ‘Pair’ for more security.

Don’t Lose an Outlet
The passthrough powerline kit can be used like a traditional electrical socket, ensuring no power socket goes to waste. The built-in noise filter helps prevent electrical signal noise from affecting powerline performance.

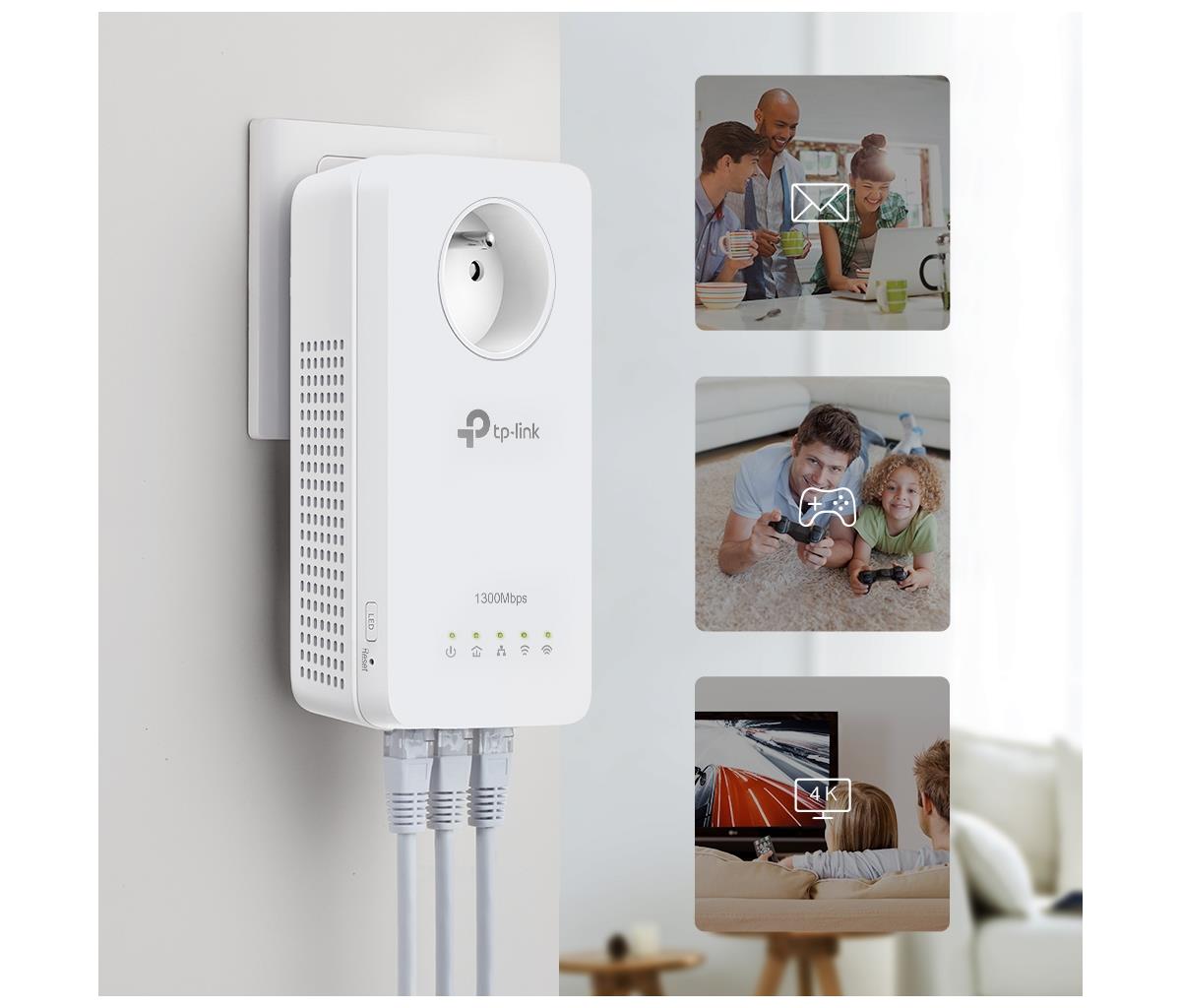

More Gigabit Ethernet Ports, More Devices
Equipped with 3× gigabit Ethernet ports, the kit provides wired connections for 4K video and IPTV streaming, lag-free gaming, and more.

Performance
Maximum data transfer rate 1300 Mbit/s
Ethernet LAN Yes
Ethernet LAN interface type Gigabit Ethernet
Ethernet LAN data rates 1000 Mbit/s
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Networking standards IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Built-in power socket Yes
Modulation OFDM
Security algorithms 128-bit AES
Maximum operating distance 300 m
Quality of Service (QoS) support Yes
Plug and Play Yes
Power
Power consumption (typical) 10.8 W
Power consumption (standby) 5 W
AC input voltage 230 V
AC input frequency 50 Hz
Design
Product colour White
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac compatibility Yes
Warranty
Base Warranty Non Non
Operational conditions
Operating temperature (T-T) 0 - 40 øC
Storage temperature (T-T) -40 - 70 øC
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Weight & dimensions
Package width 230 mm
Package depth 190 mm
Package height 100 mm
Technical details
Compliance certificates RoHS
Packaging content
Quantity per pack 1 pc(s)
Quick installation guide Yes
Cables included LAN (RJ-45)
Logistics data
Harmonized System (HS) code 85171800
