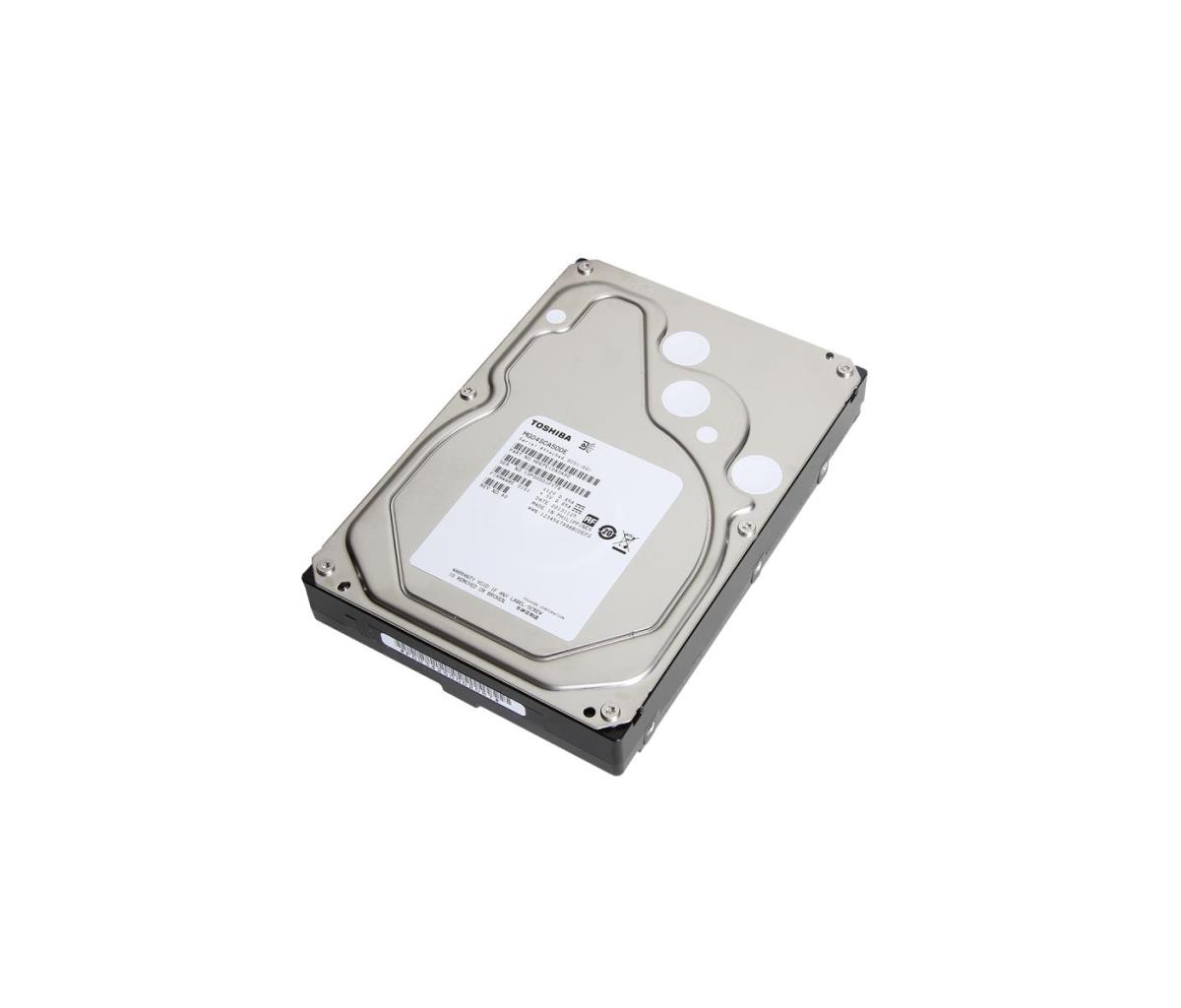

Hard Drive 4TB Enterprise SATA 6gb/s 3.5in 7200rpm 128MB 512e
ITCurry #: W5612749 | Article #: MG04ACA400A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The MG04 series is engineered for nearline business-critical workloads. The 3.5 inch (8.9 cm) Enterprise HDDs are available in capacities up to 5TB and feature Toshiba Persistent Write Cache technology. Equipped with 6Gbit/s SATA interface, the series supports higher storage density, saving rack space and reducing the footprint and operational burden of business critical servers and storage systems.
The drives are available in models that support either 512e or 4Kn advanced format storage modes. The 4Kn drives (MG04ACAxxxA) offer optimum performance and compatibility with the latest applications and operating environments. The 512e compatible drives (MG04ACAxxxE) provide support for legacy applications and operating environments that require 512byte sector lengths.
| Warranty | |
| Base Warranty | Non Non |
| Features | |
| HDD capacity | 4 TB |
| HDD speed | 7200 RPM |
| Storage drive buffer size | 128 MB |
| HDD size | 3.5" |
| Interface | Serial ATA III |
| Type | HDD |
| HDD interface transfer rate | 6 Gbit/s |
| HDD sustained transfer rate | 185 MiB/s |
| Read seek time | 9.5 ms |
| Write seek time | 8.5 ms |
| Average latency | 4.17 ms |
| Bytes per sector | 4096 |
| Start/stop cycles | 600000 |
| Mean time between failures (MTBF) | 1400000 h |
| Power | |
| Power consumption (read) | 11.3 W |
| Power consumption (write) | 11.3 W |
| Power consumption (idle) | 6 W |
| Operating voltage | 5 / 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 55 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating vibration | 0.25 G |
| Non-operating vibration | 5 G |
| Operating shock | 70 G |
| Non-operating shock | 300 G |
| Packaging content | |
| Manual | Yes |
| Quick start guide | Yes |
| Weight & dimensions | |
| Width | 101.6 mm |
| Height | 26.1 mm |
| Depth | 147 mm |
| Weight | 720 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84717050 |
| Other features | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Yes |
| Certification | RoHS compliant |
