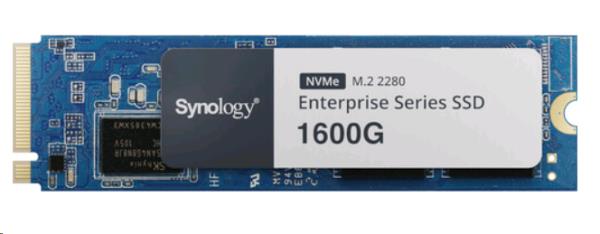

SSD - Snv5420 - 1600GB - M.2 2280 Nvme With Power Loss Protection
ITCurry #: M6055198 | Article #: SNV5420-1600G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Supercharge your NAS/SAN
Enterprise Series M.2 NVMe SSDs are designed to intelligently work with Synology DiskStation Manager (DSM) to boost I/O performance. These high-performance NVMe drives accelerate the slower but higher-capacity storage space provided by traditional hard drives, enabling cost-effective, in-place upgrades for existing systems.
Consistently fast caching for 24/7 environments
Designed specifically for Synology systems, Enterprise Series M.2 NVMe SSDs are built for maximum performance consistency. Each drive is rated for up to 660,000/120,000 4K random read/write IOPS across the usable lifespan of the drive. Endurance of up to 2,900 TBW ensures longevity.
Data integrity safeguards
The SNV3500 and SNV5400 Series offer full end-to-end data protection, including power loss protection to ensure data integrity during unexpected shutdowns. These series have capacitors in their power loss protection circuits to safely write cached data to NAND flash memory during power failures, thus preventing data loss.
| Features | |
| SSD capacity | 1.6 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Component for | NAS |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 3000 MB/s |
| Write speed | 1000 MB/s |
| Random read (4KB) | 660000 IOPS |
| Random write (4KB) | 120000 IOPS |
| TBW rating | 2900 |
| Power | |
| Power consumption (read) | 5 W |
| Power consumption (write) | 5.5 W |
| Power consumption (idle) | 2.5 W |
| Weight & dimensions | |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 3.5 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 85 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Warranty | |
| Base Warranty | Non Non |
