Product Information
Fast, out-of-the-box performance with 25GbE support

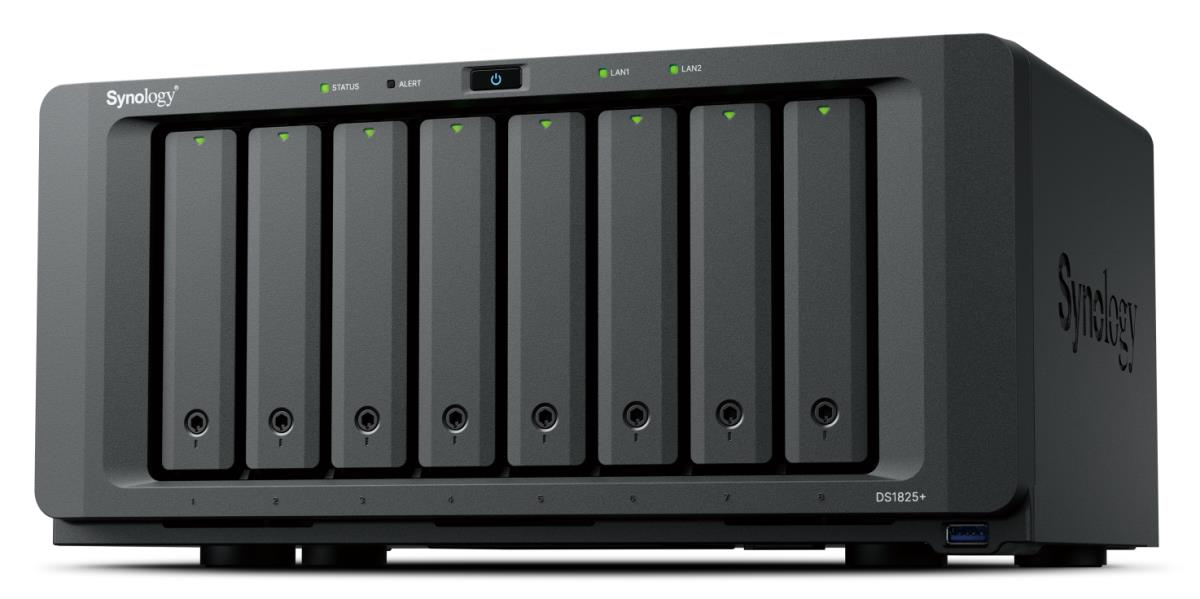

The DS1825+ features built-in 2.5GbE networking and supports both SATA SSDs and HDDs in 2.5"/3.5" internal bays, as well as M.2 NVMe drives via M.2 slots for use as cache.1,6 Its support for expansion cards allows configuration flexibility, supporting faster networking of up to 25GbE.4
Storage | |
Storage drive capacity | 0 GB |
Supported storage drive interfaces | M.2, Serial ATA |
Storage drive sizes supported | 3.5,M.2,2.5 |
Maximum supported storage capacity | 360 TB |
Number of M.2 (M & B) slots | 2 |
RAID support | Yes |
RAID levels | 0, 1, 5, 6, 10, JBOD |
Hot-swap drive bays | Yes |
Supported file systems | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
Storage drives installed | No |
Total installed storage capacity | 0 TB |
Number of storage drives supported | 18 |
Installed storage drive type | No |
Supported storage drive types | HDD & SSD |
Processor | |
Processor manufacturer | AMD |
Processor generation | AMD Ryzen Embedded V1000 Series |
Processor family | Ryzen Embedded |
Processor model | V1500B |
Processor frequency | 2.2 GHz |
Processor cores | 4 |
Processor threads | 8 |
Memory | |
Internal memory | 8 GB |
Internal memory type | DDR4 |
Maximum RAM supported | 32 GB |
Memory slots | 2 |
Memory form factor | SO-DIMM |
ECC | Yes |
Network | |
Ethernet LAN | Yes |
Ethernet LAN data rates | 2500 Mbit/s |
Wake-on-LAN ready | Yes |
Ports & interfaces | |
USB port | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
Ethernet LAN (RJ-45) ports | 2 |
Design | |
Cooling type | Active |
Product colour | Black |
Number of fans | 2 fan(s) |
Fan diameter | 12 cm |
Fan diameter 2 | 12 cm |
Drive bay locking | Yes |
LED indicators | Yes |
Performance | |
Type | NAS |
Device class | Home & Home Office |
Backup function | Yes |
Backup features | Cloud, iSCSI LUN |
Multilingual support | Yes |
Number of users | 1024 user(s) |
Noise level | 23.8 dB |
Snapshot | Yes |
Web-based management | Yes |
Access Control List (ACL) | Yes |
On/off switch | Yes |
System log | Yes |
Power | |
Power supply location | External |
Power supply unit (PSU) capacity | 250 W |
Power consumption (typical) | 60.1 W |
Power consumption (HDD standby) | 18.34 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Weight & dimensions | |
Width | 343 mm |
Depth | 243 mm |
Height | 166 mm |
Weight | 6 kg |
Packaging content | |
External power adapter | Yes |
Cables included | AC, LAN (RJ-45) |
Power cables quantity | 1 |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 øC |
Operating relative humidity (H-H) | 5 - 95% |
Storage temperature (T-T) | -20 - 60 øC |
Storage relative humidity (H-H) | 5 - 95% |
Other features | |
Warranty period | 3 year(s) |
Compliance certificates | RoHS |
Warranty | |
Base Warranty | Non Non |
