Product Information
Cyber-resilient Data Protection Solution for Data Centers

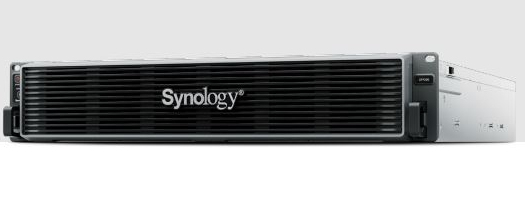

The Synology ActiveProtect appliance DP7200 is a data protection solution that comes pre-configured
with hardware that runs ActiveProtect Manager, an operating system designed specifically for backup
purposes. With its ability to perform backups, restore, deduplicate, replicate, and manage while ensuring
security, the DP7200 is an ideal core management server for your company headquarters. It seamlessly
integrates all current and future workloads across multiple sites into clusters, enabling centralized
management through a single platform. With immutability, air-gapped backups, and access
control, the DP7200 protects against ransomware attacks, and secures all your data.
| Storage | |
| RAID support | Yes |
| RAID levels | 1, 6 |
| Storage drives installed | Yes |
| Total installed storage capacity | 123.84 TB |
| Number of storage drives installed | 12 |
| Installed storage drive type | HDD+SSD |
| Supported storage drive types | HDD & SSD |
| Processor | |
| Processor manufacturer | AMD |
| Processor family | EPYC |
| Processor model | 7272 |
| Processor frequency | 2.9 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 12 |
| Processor threads | 14 |
| L3 cache | 64 MB |
| Memory | |
| Internal memory | 32 GB |
| Maximum RAM supported | 512 GB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| Design | |
| Chassis type | Rack (2U) |
| Product colour | Black |
| Performance | |
| Type | Storage server |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Power | |
| Power consumption (max) | 163.17 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Weight & dimensions | |
| Width | 430.5 mm |
| Depth | 692 mm |
| Height | 88 mm |
| Weight | 23.4 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 øC |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage temperature (T-T) | -20 - 60 øC |
| Storage relative humidity (H-H) | 5 - 95% |
| Other features | |
| Warranty period | 5 year(s) |
| Compliance certificates | RoHS |
| Certification | FCC, CE, UKCA, BSMI, RCM, NCC, VCCI, KC, BIS, EAC |
| Warranty | |
| Base Warranty | Non Non |
