UP SuperServer SYS-511E-WR - GOLD X13 UP WIO 1U 4510 64G 960G 1G HF R
ITCurry #: 7851A605 | Article #: SYS-511E-WR-G1-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Supermicro WIO SuperServer® systems allow users to select from a wide range of I/O options to optimize the storage and networking solutions to best fit their applications. In addition to enabling customizable configurations and optimization for a wide range of application requirements, Supermicro WIO SuperServers also provide attractive cost advantages and investment protection.

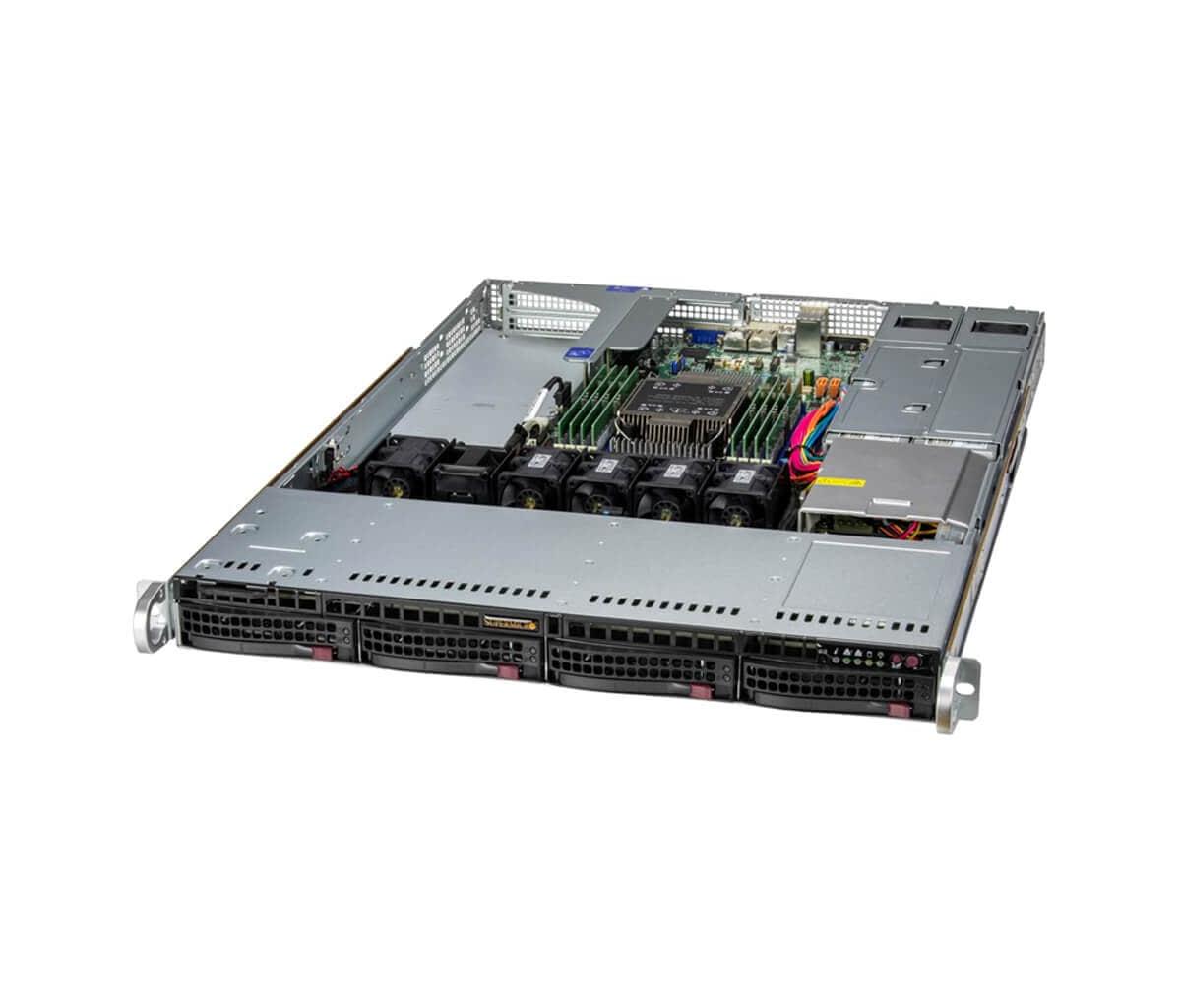

The Supermicro SYS-511E-WR WIO SuperServer® supports 4th Gen Intel® Xeon® Scalable Processors (up to 52 cores) and 2TB ECC DDR5-4800MT/s RDIMM memory in 8 DIMM slots. The SYS-511E-WR includes 4 hot-swappable 3.5” SATA drive bays which makes changing hard drives easy without needing to open up the server. In addition, this WIO server supports up to 2 SuperDOM with built-in power and a M.2 slot, which is designed for use as a boot drive, backup recovery device, license drive, or OS installation device (replacing CD/DVD-ROMs).
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor model | 4510 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 4.1 GHz |
| Processor cores | 12 |
| Processor cache | 30 MB |
| Motherboard chipset | Intel C741 |
| Processor socket | LGA 4677 (Socket E) |
| Memory | |
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 8x DIMM |
| ECC | Yes |
| Memory clock speed | 5600 MHz |
| Maximum internal memory | 2 TB |
| Storage | |
| Total storage capacity | 960 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 960 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD size | M.2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap | Yes |
| Graphics | |
| On-board graphics card | No |
| Network | |
| LAN controller | Intel I210 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Expansion slots | |
| PCI Express x8 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Black |
| Cooling type | Active |
| Performance | |
| BIOS type | AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | No |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 860 W |
| Number of redundant power supplies supported | 2 |
| Power supply input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 øC |
| Storage temperature (T-T) | -30 - 60 øC |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Weight & dimensions | |
| Width | 437 mm |
| Depth | 650 mm |
| Height | 43 mm |
| Weight | 9.75 kg |
| Package width | 596.9 mm |
| Package depth | 856 mm |
| Package height | 215.9 mm |
| Package weight | 15.5 kg |
| Warranty | |
| Base Warranty | Non Non |
