Wall Mount Rack - 4u 13.78in Deep 19in Rack For Patch Panel/ Switch
ITCurry #: 75648666 | Article #: WALLMOUNT4-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

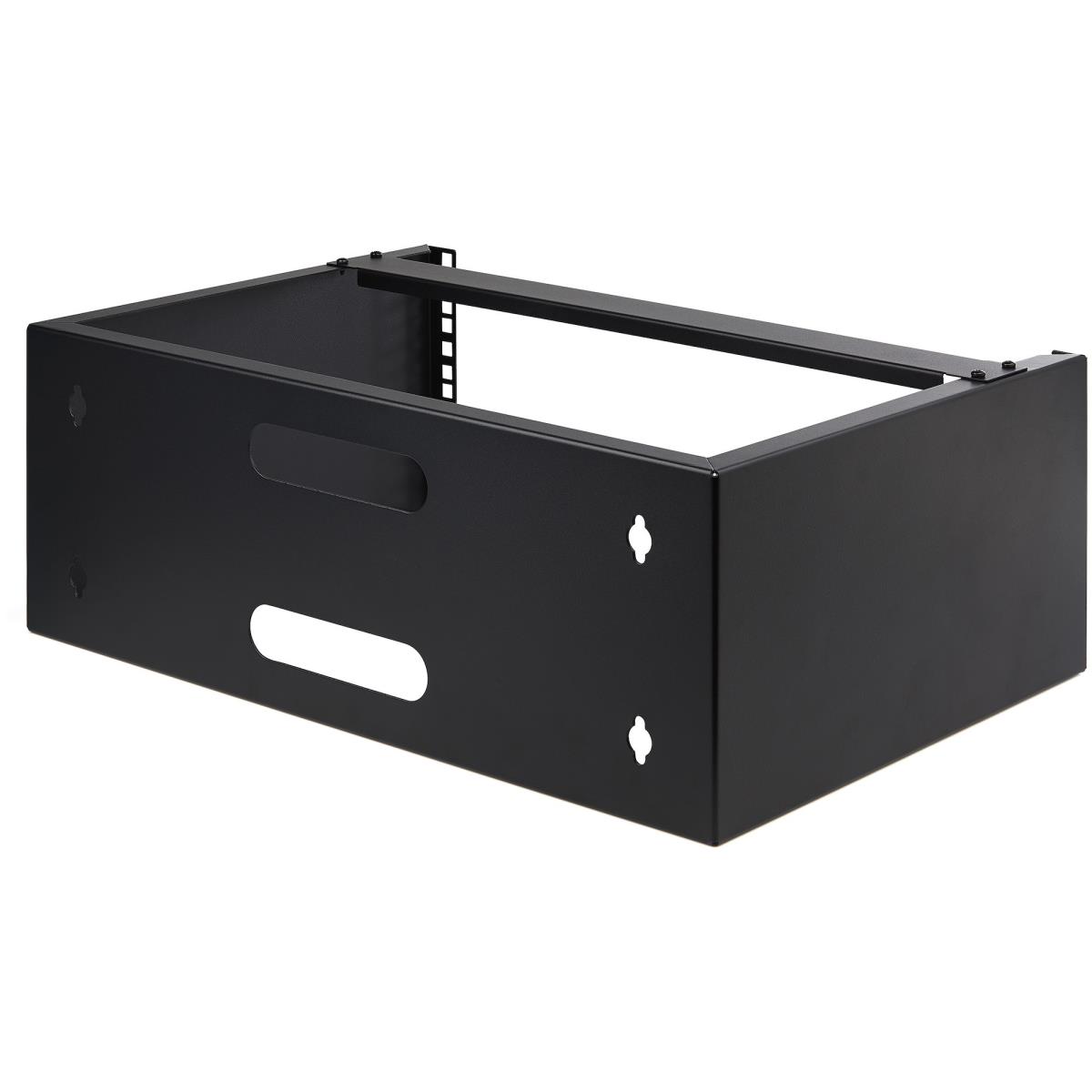

Mount networking equipment and shallow rackmount devices with this 4U wall-mountable rack
The 4U 13.78in. (35cm) deep wall-mounting bracket for patch panels and network equipment, delivers a sturdy and dependable equipment storage option, allowing you to wall mount data/IT equipment up to ta total of 44lbs. (20kg). It's the perfect solution for areas where space is at a premium like small office/home office environments or spaces with limited server room because it doesn't take up any floor space.
Sturdy Construction & Easy Installation
The mounting bracket features an all-steel design and is suitable for mounting patch panels, or other slim 19in rack equipment to a wall, and to organize cabling or equipment in your network closet, wiring closet, back office or IDF. The sturdy steel construction is especially helpful for durability in harsh environments. The open frame wall rack's mounting holes are positioned 16in. apart, matching typical drywall construction framework to ensure simple and secure wall-stud anchoring.
Includes Hardware
Cage nuts and screws are included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware. The bracket is ideal for mounting equipment 12" or less in depth to ensure there is room for cabling.
WALLMOUNT4 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
| Features | |
| Rack capacity | 4U |
| Type | Wall mounted rack |
| Maximum weight capacity | 20 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 2-post |
| Cable management | Yes |

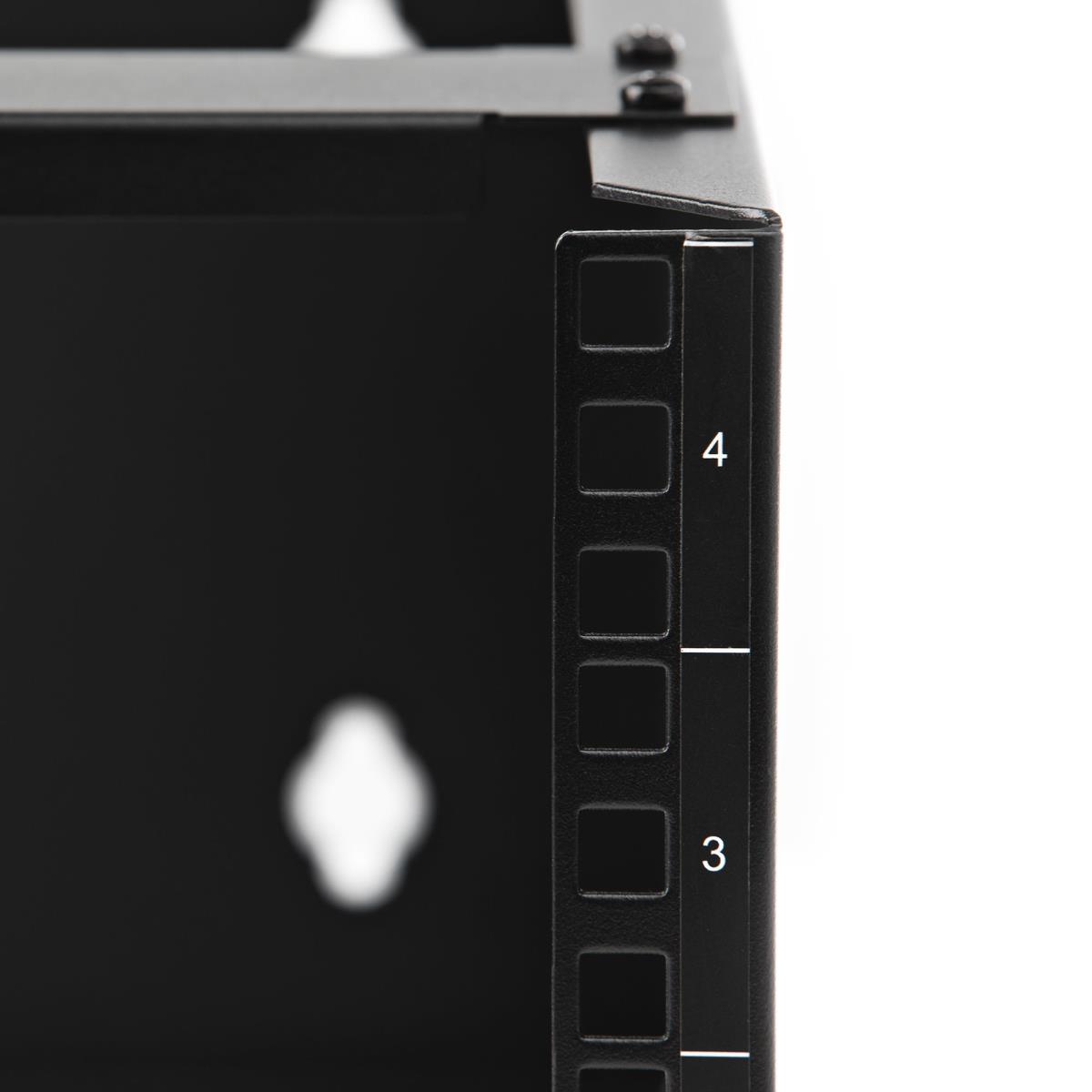

| Mounting hole shape | Square |
| Weight & dimensions | |
| Width | 498 mm |
| Depth | 350 mm |
| Height | 184 mm |
| Weight | 5 kg |
| Mounting depth (max) | 35 cm |
| Warranty | |
| Base Warranty | Non Non |
| Packaging data | |
| Nuts included | Yes |
| Number of nuts | 16 |
| Screws included | Yes |
| Number of screws | 20 |
| Number of washers included | 16 |
| Package width | 534 mm |
| Package depth | 387 mm |
| Package height | 230 mm |
| Package weight | 5 kg |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 534 mm |
| Master (outer) case length | 387 mm |
| Master (outer) case height | 230 mm |
| Products per master (outer) case | 1 pc(s) |
| Other features | |
| Compliance industry standards | EIA/ECA-310-E |
