Product Information
Keep this compact converter with your laptop while you’re traveling, to connect to virtually any monitor, television or projector
This 3-in-1 travel adapter offers a portable solution for connecting your USB-C computer to a VGA, DVI, or HDMI display.
The travel adapter is compatible with your DP alt mode computer. DP alt mode means your computer can pass a DisplayPort video signal through the USB-C port.

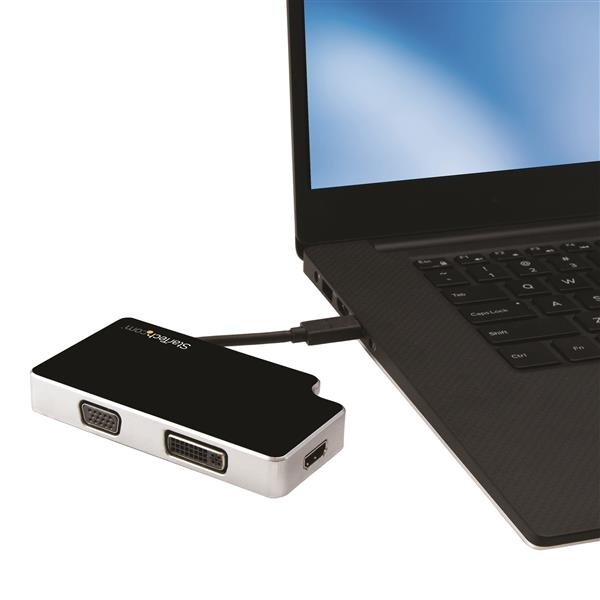

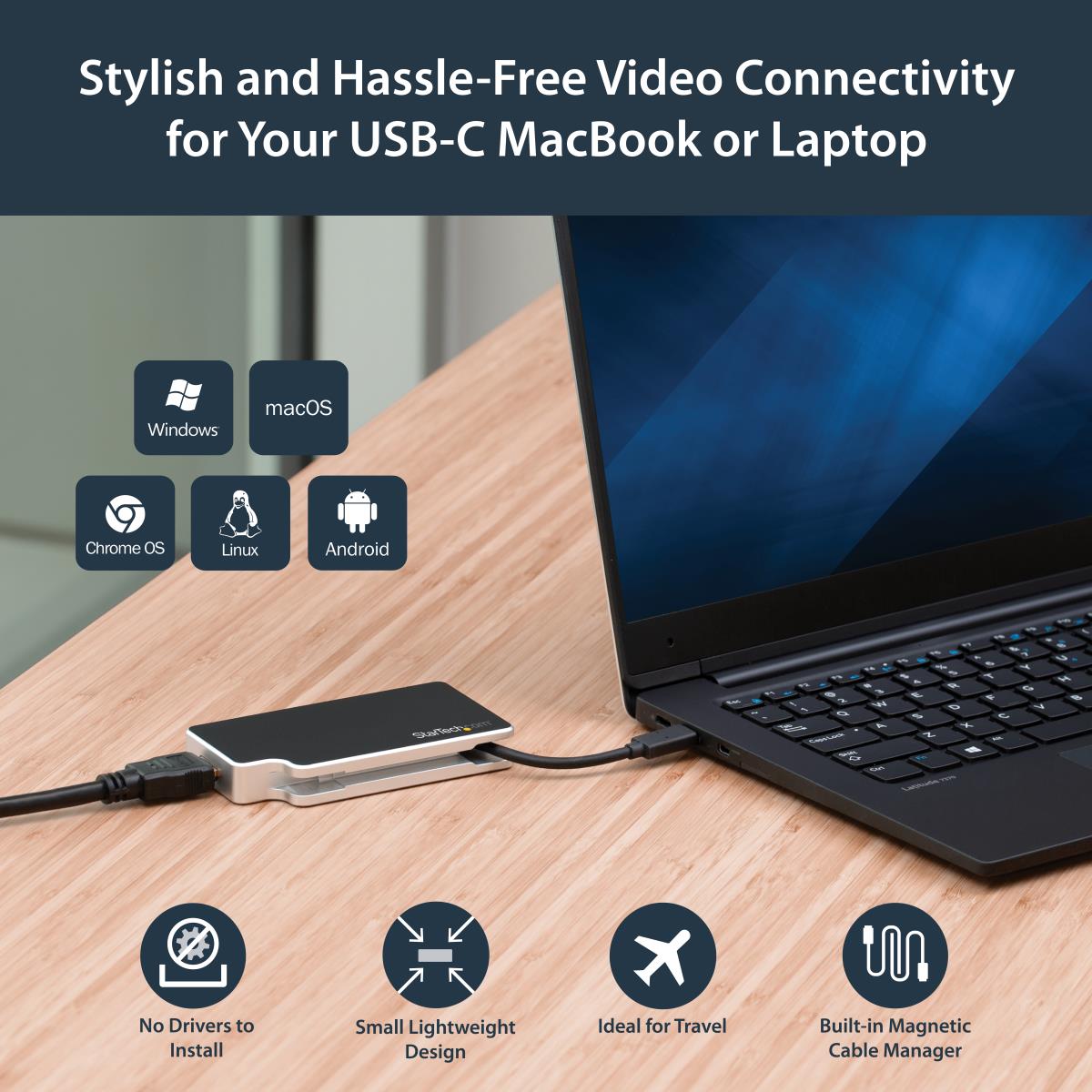

Stylish connectivity for your USB-C laptop
This travel adapter comes with a built-in black USB-C cable and works well with your Dell XPS, MacBook and any device that supports USB-C DP alt mode.

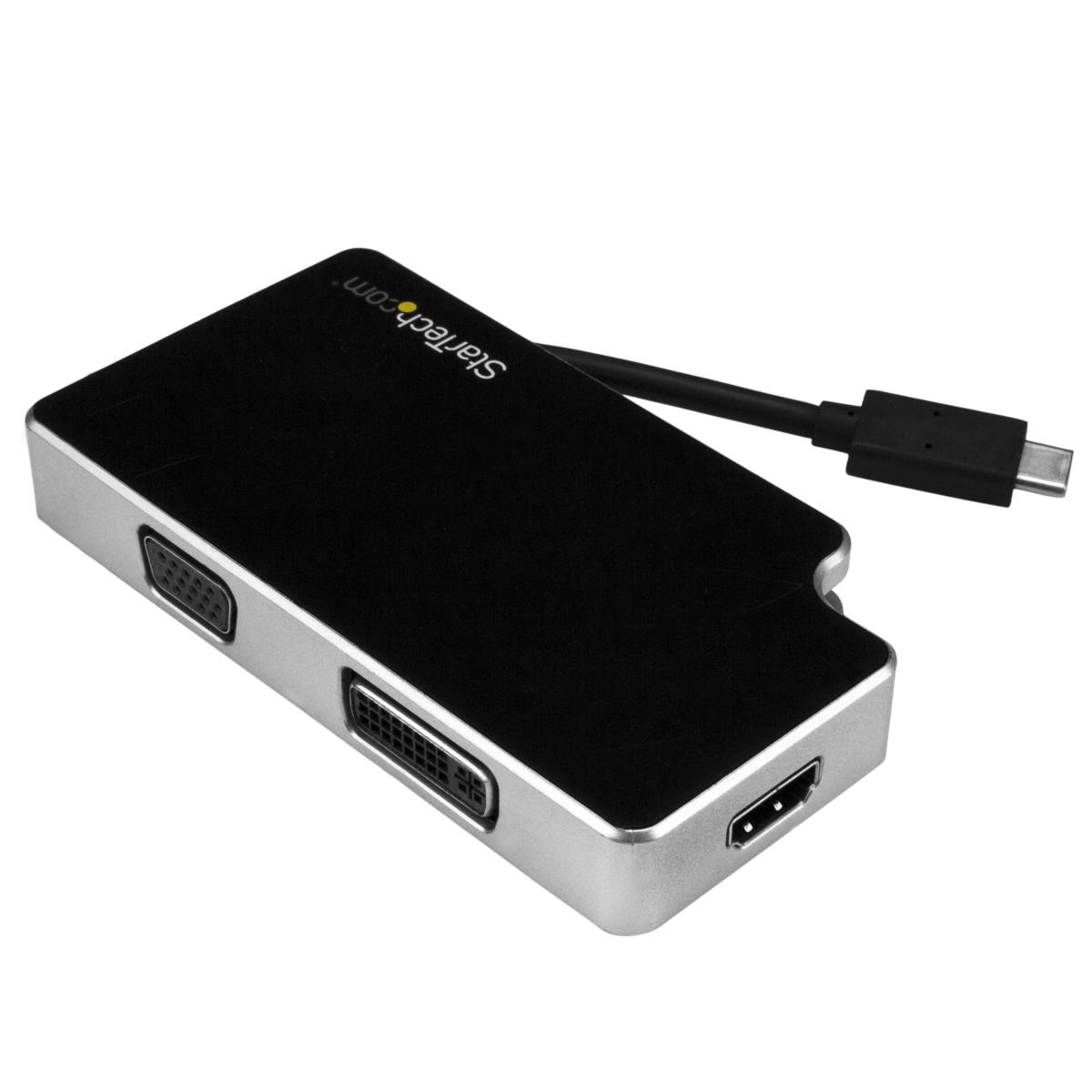

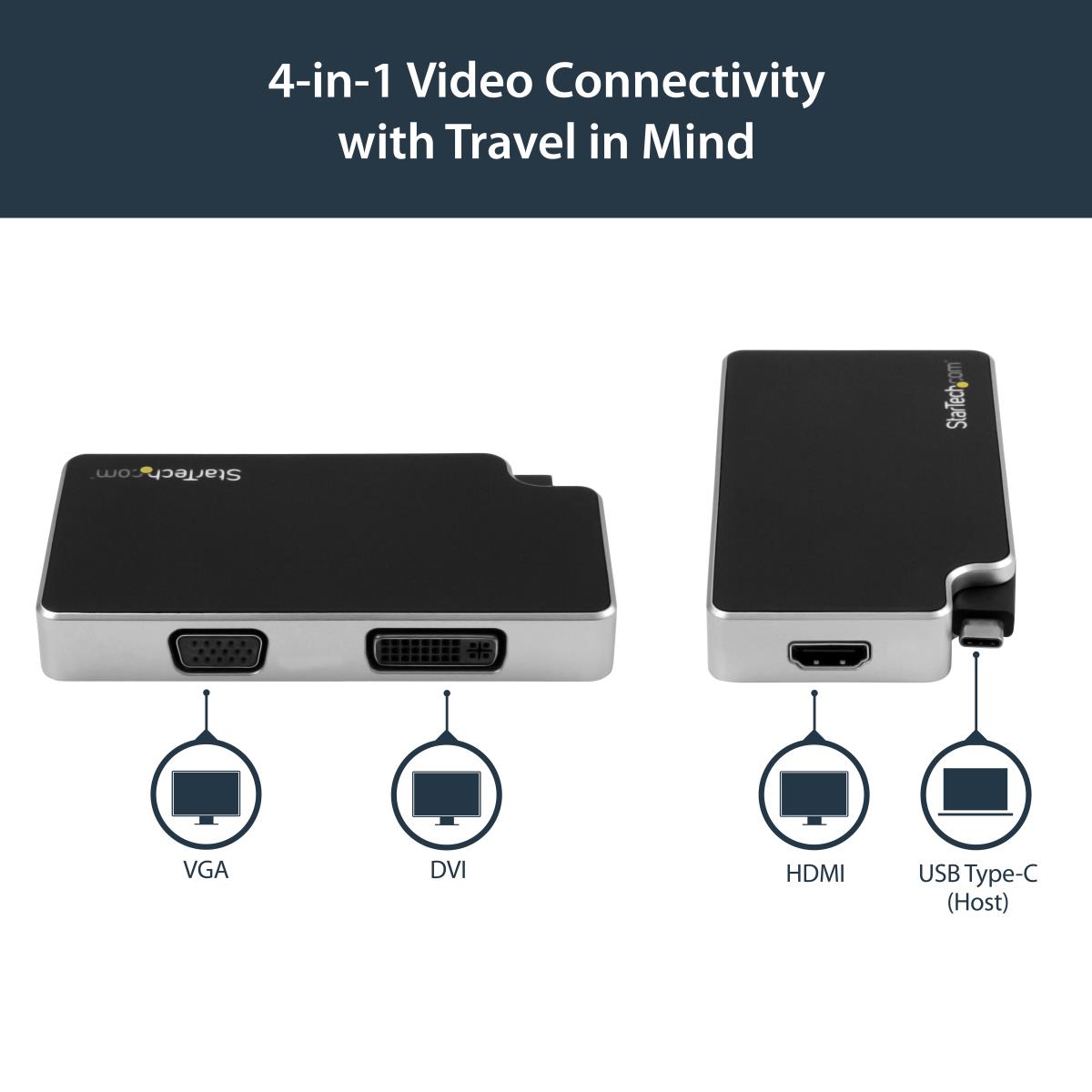

All-in-one video connectivity, with travel in mind

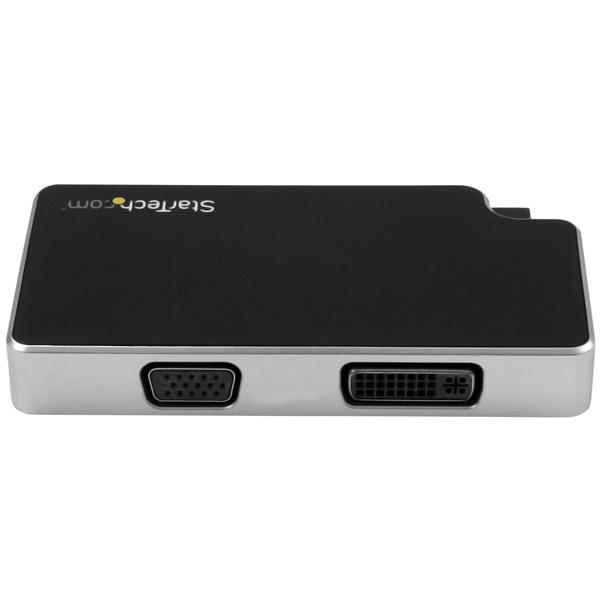

Instead of carrying three separate video adapters in your laptop bag, this 3-in-1 adapter gives you all the video outputs you'll need. With VGA, DVI and HDMI outputs, this adapter lets you connect from your laptop's USB Type-C port to almost any boardroom or classroom display, without the inconvenience of carrying a separate adapter for each display type.
With support for multiple video outputs and a small-footprint design, this adapter is the ideal plug-and-play solution for travel or BYOD (Bring Your Own Device) applications around the office.

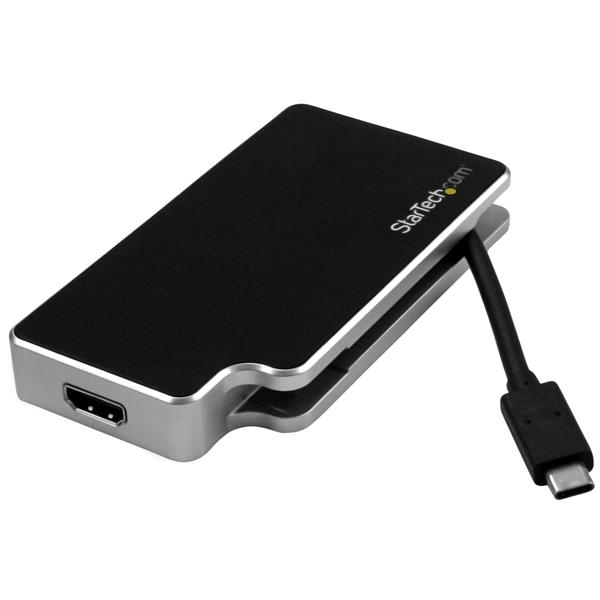

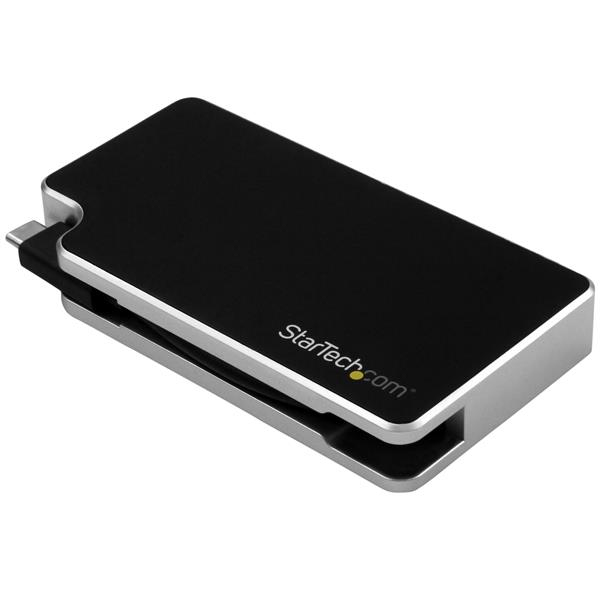

Innovative, built-in cable manager
The adapter features a built-in cable fastener. Simply tuck the cable into place along the side of the adapter for quick and secure storage while you’re traveling to ensure the adapter is neatly stored in your travel bag.

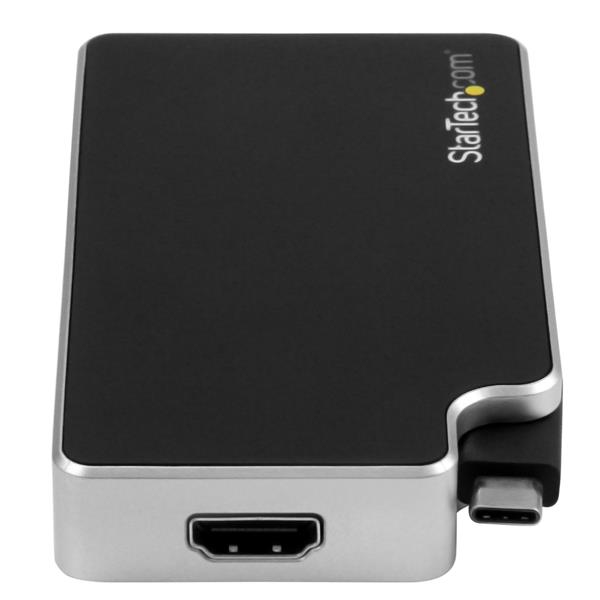

Astonishing picture quality
The HDMI output on this travel adapter supports Ultra HD 4K resolutions, providing four times the picture quality of high-definition 1080p. The HDMI output is also backward compatible with lower resolutions, such as 1080p and 720p, so the adapter is also perfect for your legacy video equipment. The VGA and DVI outputs also support high-definition maximum resolutions of up to 1920 x 1200, so you can still enjoy excellent video quality.
The travel adapter is compatible with USB Type-C Intel Thunderbolt 3 devices that are capable of outputting a DisplayPort signal.
The CDPVGDVHDB is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Notes:
macOS 10.12.6 or later is required for your MacBook to support this product.
Your USB-C equipped host laptop must support video (DP alt mode) to work with this adapter. The adapter does not support USB Power Delivery.
The StarTech.com Advantage
- 3-in-1 adapter - USB-C to VGA, USB-C to DVI and USB-C to HDMI
- Maximum portability with built-in cable manager
- Astonishing picture quality with support for UHD 4K
| Performance | |
| USB connector type | USB Type-C |
| USB connector gender | Male |
| DVI output | Yes |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 1 |
| VGA (D-Sub) output | Yes |
| DVI connector type | DVI-I |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 30 Hz |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Audio output channels | 7.1 channels |
| Chipset | Cypress - CYPD2120-24LQXIT, Cypress - CY7C65217, Analogix - ANX9847FN-AA-R, MegaChips - MCDP2850-BC |
| Certification | CE, FCC, REACH |
| Design | |
| Product colour | Black, Silver |
| Housing material | Plastic |
| Integrated USB cable | Yes |
| USB cable length | 0.09 m |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |

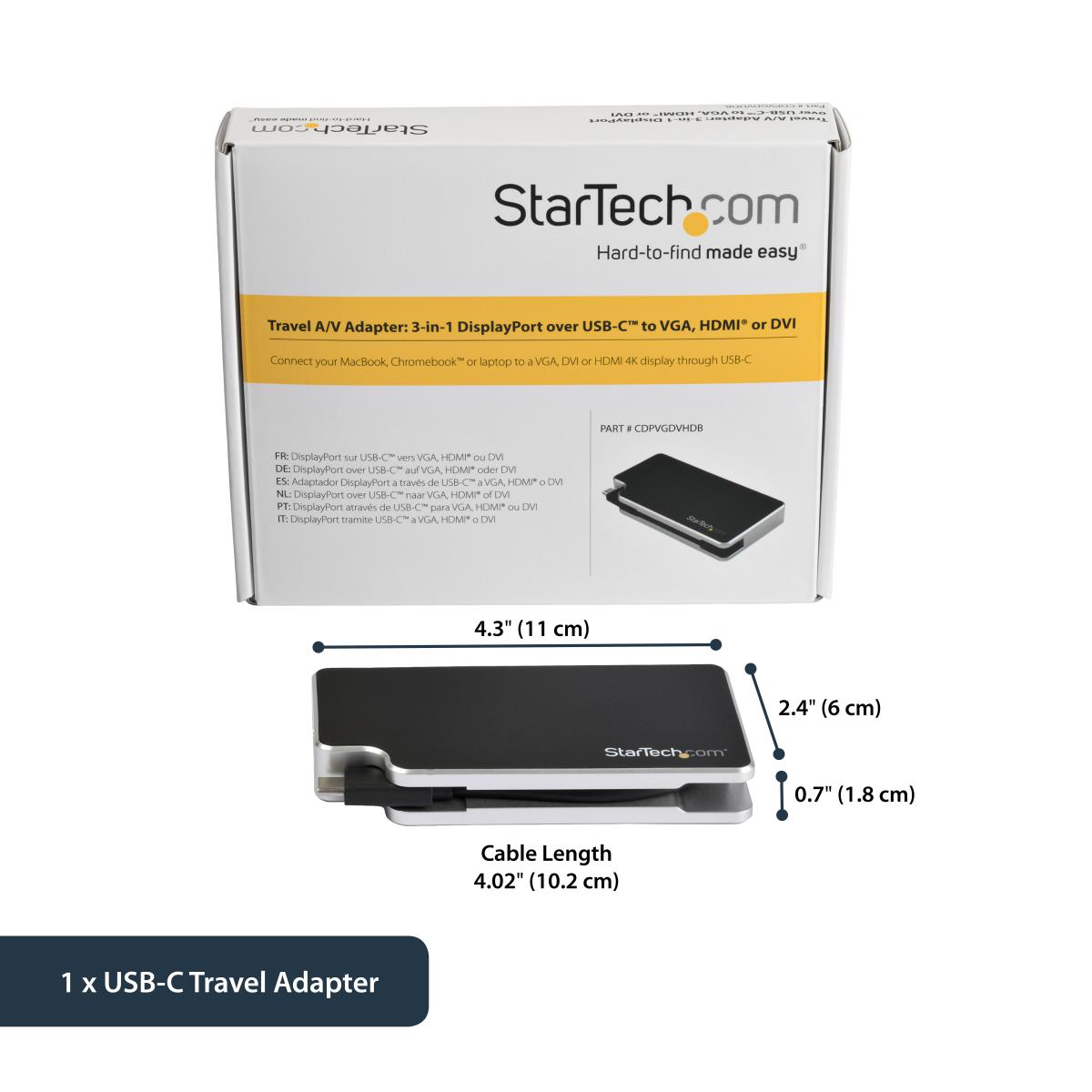

| Weight & dimensions | |
| Width | 60 mm |
| Depth | 110 mm |
| Height | 18 mm |
| Weight | 67 g |
| Package width | 144 mm |
| Package depth | 174 mm |
| Package height | 32 mm |
| Package weight | 165 g |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Warranty | |
| Base Warranty | Non Non |
